Disassembly [06/2020 - 10/2023]: Procedure

Refer to PROCEDURE - Step 4 [06/2020 - 12/2021] , or refer to PROCEDURE - Step 4 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 4 [10/2022 - ]

Refer to PROCEDURE - Step 4 [06/2020 - 12/2021] , or refer to PROCEDURE - Step 4 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 4 [10/2022 - 10/2023]

Refer to PROCEDURE - Step 5 [06/2020 - 12/2021] , or refer to PROCEDURE - Step 5 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 5 [10/2022 - 10/2023]

Refer to PROCEDURE - Step 6 [06/2020 - 12/2021] , or refer to PROCEDURE - Step 6 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 6 [10/2022 - 10/2023]

Refer to PROCEDURE - Step 7 [06/2020 - 12/2021] , or refer to PROCEDURE - Step 7 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 7 [10/2022 - 10/2023]

1. Detach the clamp and remove the No. 2 luggage room wire.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A

   w/ Hands Free Power Back Door

   -

   -

1. Remove the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 3 outside moulding retainers.

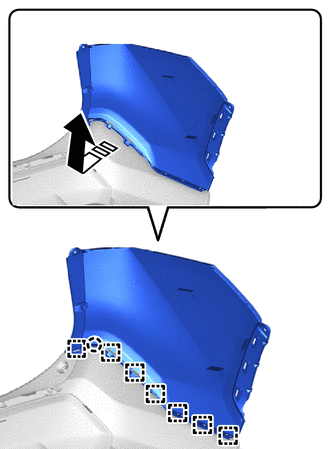

3. Detach the guide and claw to remove the rear bumper piece LH as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

HINT:

Use the same procedure described for the LH side.

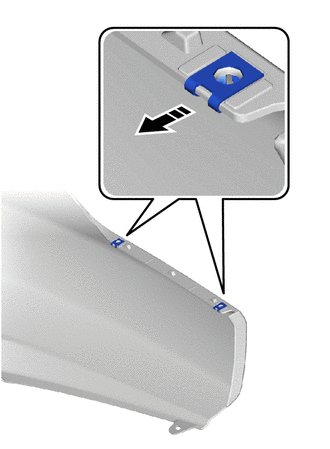

1. Remove the 2 spring nuts as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

   HINT:

   Use the same procedure for the other side.

1. Remove the screw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

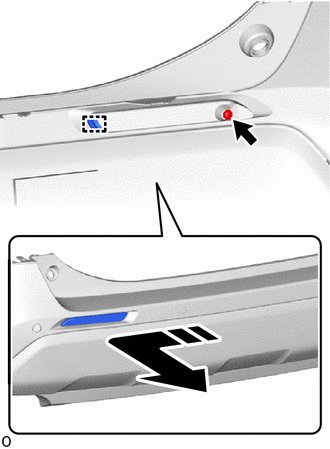

2. Detach the guide and remove the reflex reflector assembly LH as shown in the illustration.

HINT:

Use the same procedure described for the LH side.

1. Remove the 4 outside moulding retainers.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

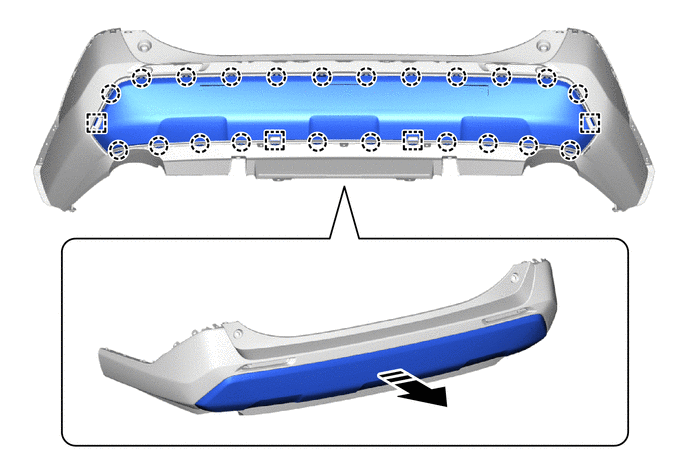

2. Detach the guide and claw to remove the rear bumper center guard as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

   -

   -

1. Remove the back door garnish retainer.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Use the same procedure for the other side.

HINT:

When removing the rear bumper pad LH, if the double-sided tape is difficult to remove, heat the adhesive of the rear bumper piece LH and rear bumper pad LH using a heat light.

Standard

WARNING:

• Do not touch the heat light and heated parts.
• Touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

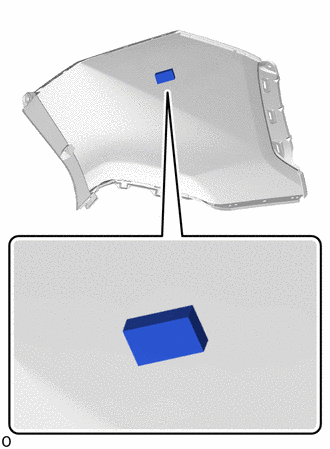

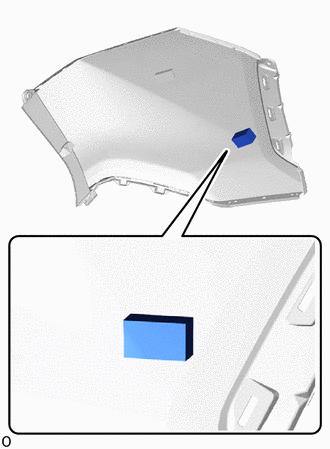

1. Remove the rear bumper pad LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

When removing the rear bumper pad LH, if the double-sided tape is difficult to remove, heat the adhesive of the rear bumper piece LH and rear bumper pad LH using a heat light.

Standard

WARNING:

• Do not touch the heat light and heated parts.
• Touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. Remove the rear bumper pad LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

When removing the rear bumper pad, if the double-sided tape is difficult to remove, heat the adhesive of the rear bumper piece LH and rear bumper pad using a heat light.

Standard

WARNING:

• Do not touch the heat light and heated parts.
• Touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

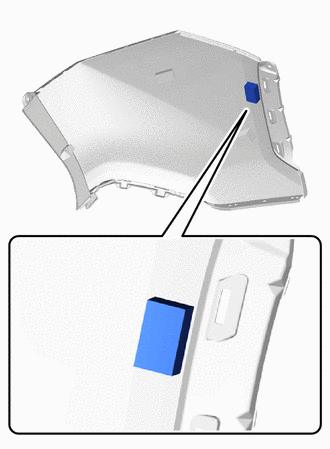

1. Remove the rear bumper pad.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

When removing the rear bumper pad, if the double-sided tape is difficult to remove, heat the adhesive of the rear bumper piece RH and rear bumper pad using a heat light.

Standard

WARNING:

• Do not touch the heat light and heated parts.
• Touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. Remove the rear bumper pad.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

When removing the rear bumper pad RH, if the double-sided tape is difficult to remove, heat the adhesive of the rear bumper piece RH and rear bumper pad RH using a heat light.

Standard

WARNING:

• Do not touch the heat light and heated parts.
• Touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

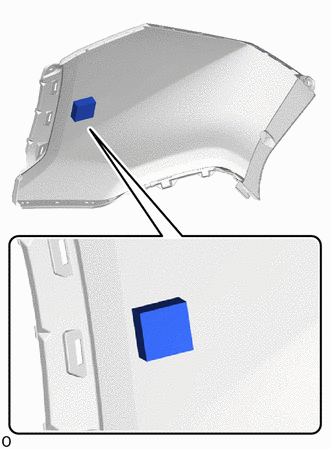

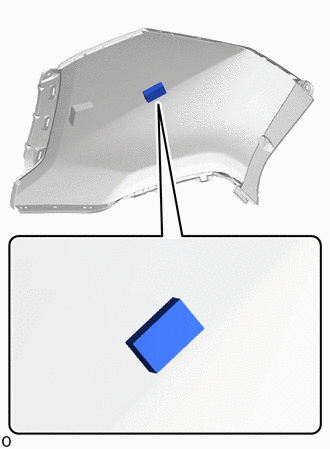

1. Remove the rear bumper pad RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to REMOVAL [06/2020 - ]

HINT:

Use the same procedure described for the LH side.

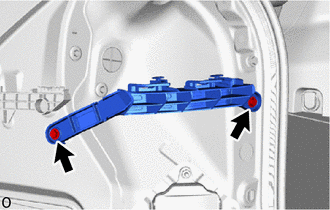

1. Remove the 2 screws and rear bumper upper retainer LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure described for the LH side.

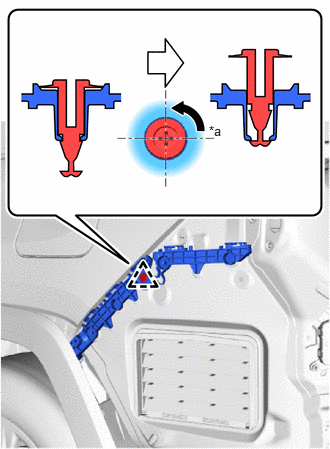

1. Turn the clip 90° and detach the clip as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	90°
   	Rotation Direction

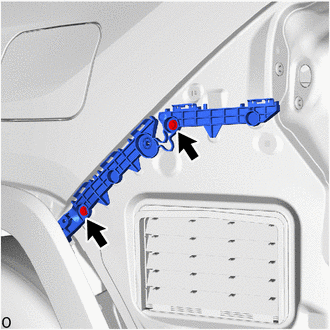

2. Remove the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

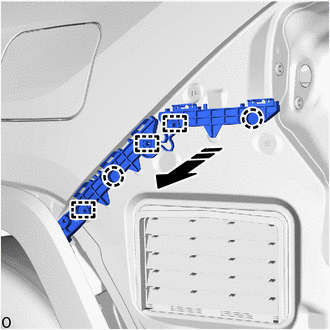

3. Detach the guide and claw and remove the rear bumper side support LH as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

HINT:

Use the same procedure for the RH and LH side.

1. Remove the 6 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

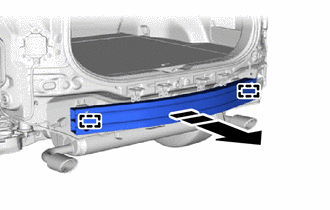

2. Detach the guide and remove the rear bumper reinforcement sub-assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction
