Removal [06/2020 - 10/2022]: Procedure

  1. REMOVE FRONT FENDER FRONT SPLASH SHIELD LH

    HINT:

    Use the same procedure described for the RH side.

    Refer to PROCEDURE - Step 2

  2. REMOVE FRONT FENDER FRONT SPLASH SHIELD RH

    HINT:

    Use the same procedure described for the LH side.

  3. REMOVE FRONT FENDER MOULDING SUB-ASSEMBLY LH

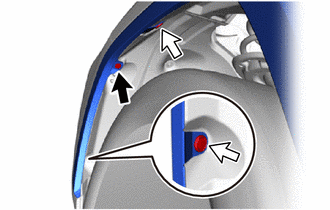

    1. Remove the screw.
      GTY1006433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Clip
    2. Remove the 2 clips.
    3. Put protective tape around the front fender moulding sub-assembly LH.
      GTY870375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    4. Pull back the edge of the front fender liner LH and detach the claw by pushing the area indicated by the arrow in the illustration with a finger.
      GTY870039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Puch in this Direction
      Remove in this Direction
      NOTE:
      • Do not apply excessive force when pulling back the front fender liner LH.
      • To avoid damaging the claws, do not forcibly pull the front fender moulding sub-assembly LH.
    5. Detach the clip and disconnect the front fender moulding sub-assembly LH as shown in the illustration.
      GTY914839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
    6. Remove the 2 clips from the front fender moulding sub-assembly LH.
      NOTE:

      If the front fender moulding sub-assembly LH has been disconnect, replace the clip with a new one.

  4. REMOVE FRONT FENDER MOULDING SUB-ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  5. REMOVE FRONT BUMPER ASSEMBLY
    1. Remove the 4 bolts.
      GTY900334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 6 screws.
      GTY935893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

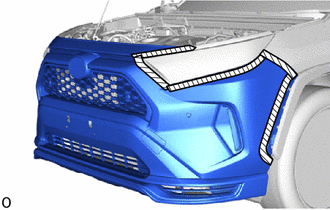

    3. Put protective tape around the front bumper assembly.
      GTY1007722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

      HINT:

      Use the same procedure for the other side.

    4. Remove the 2 clips.
      GTY923833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the other side.

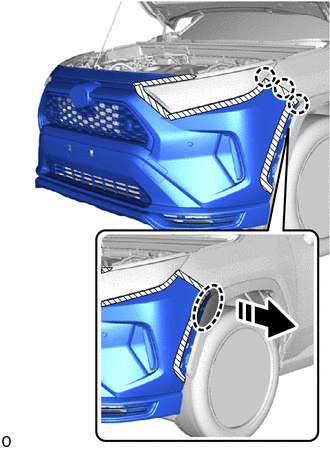

    5. Place your hand at the positions shown in the illustration and pull in the removal direction to detach the claw.
      GTY1008692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction

      HINT:

      Use the same procedure for the other side.

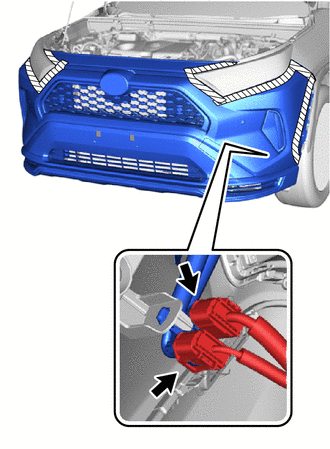

    6. Pull back the edge of the front fender liner LH and disconnect 2 connectors.
      GTY1009998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

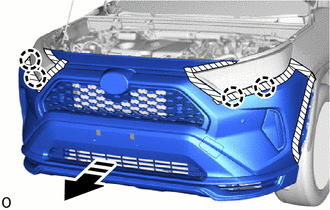

    7. Detach the claw and remove the front bumper assembly as shown in the illustration.
      GTY1009696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
