Removal [12/2022 - 03/2023]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

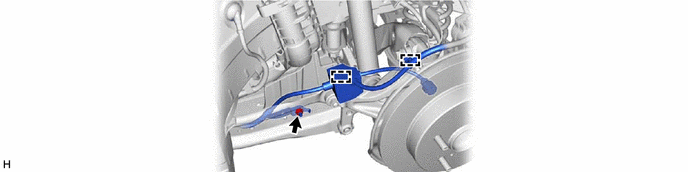

Refer to REMOVAL [12/2022 - ]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

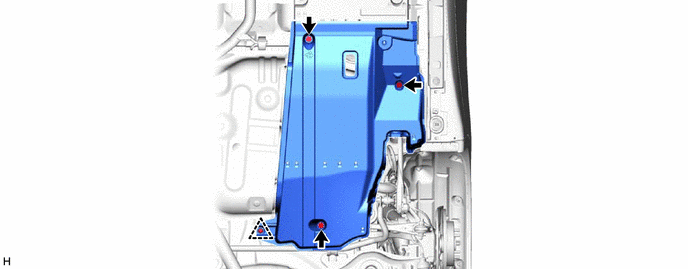

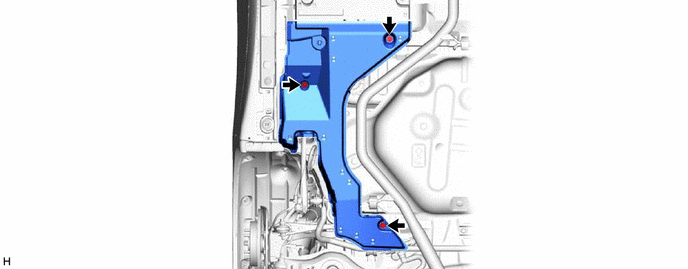

Refer to REMOVAL [12/2022 - 03/2023]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Wooden Block

   *b

   Transmission Jack

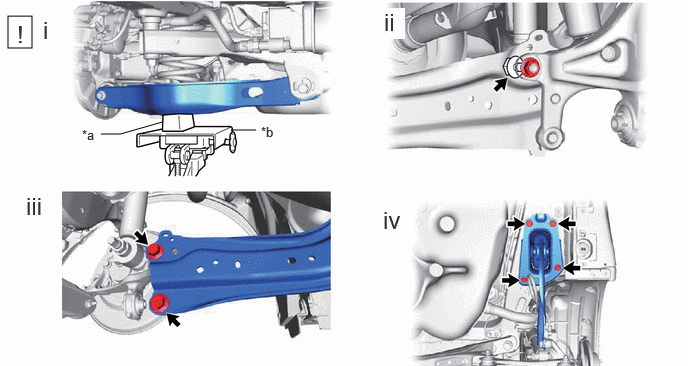

   1. Using a transmission jack and a wooden block, support the rear No. 2 suspension arm assembly.
      NOTE:

      • When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
      • Make sure to perform this operation with the vehicle kept as low as possible.
   2. w/o Stabilizer Bar:

      1. Remove the bolt and nut.

   3. Remove the 2 bolts and separate the rear trailing arm assembly from the rear axle carrier sub-assembly.
   4. Remove the 4 bolts and rear trailing arm assembly.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Secure the rear trailing arm assembly in a vise using aluminum plates.
      NOTE:

      Do not overtighten the vise.

   2. Disengage the 4 claws and remove the rear suspension arm cover.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
