Installation [12/2022 - 03/2023]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

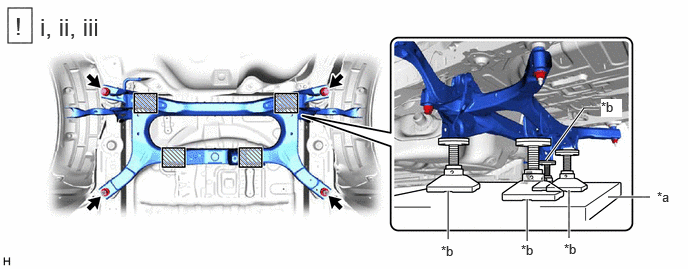

   *a	Engine Lifter	*b	Attachment
   	Attachment Placement Location	-	-

   1. Using an engine lifter and 4 attachments or equivalent tools, support the rear suspension member sub-assembly as shown in the illustration.

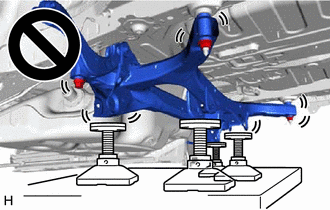

      WARNING:

      • The rear suspension member sub-assembly is a very heavy component. Make sure that it is supported securely.
      • If the rear suspension member sub-assembly is not securely supported, it may drop, resulting in serious injury.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NOTE:

      • Use attachments or equivalent tools to keep the rear suspension member sub-assembly level.
      • Keep supporting the rear suspension member sub-assembly until the installation has been completed.
   2. Raise the rear suspension member sub-assembly until there is no clearance between the rear suspension member sub-assembly and vehicle.
   3. Install the rear suspension member sub-assembly with the 2 bolts and 2 nuts.

      Torque: 143 N*m (1458 kgf*cm, 105 ft.*lbf)

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

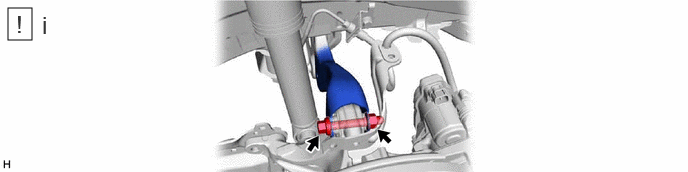

   1. Temporarily install the rear upper control arm assembly LH to the rear axle carrier sub-assembly LH with the bolt and nut.
      NOTE:

      • Insert the bolt with the threaded end facing the rear of the vehicle.
      • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

Refer to PROCEDURE - Step 15

for M20A-FXS: Refer to PROCEDURE - Step 4

Refer to INSTALLATION [12/2022 - ]

See step  7

See step  8

for M20A-FXS: Refer to INITIALIZATION [12/2022 - 03/2023]

Refer to ADJUSTMENT [12/2022 - 03/2023]
