Removal [03/2023 - ]: Procedure
- REMOVE BATTERY BOX COVER (for PHEV Model)
Refer to PROCEDURE - Step 25
- REMOVE REAR FLOOR SIDE MEMBER COVER LH (for HEV Model)
Refer to PROCEDURE - Step 2
- REMOVE REAR FLOOR SIDE MEMBER COVER RH (for HEV Model)
Refer to PROCEDURE - Step 3
- REMOVE REAR WHEEL
Refer to REMOVAL [12/2022 - ]
- REMOVE REAR STABILIZER BAR (for HEV Model 2WD with Stabilizer Bar)
Refer to PROCEDURE - Step 5 - REMOVE REAR STABILIZER BAR (for HEV Model AWD, PHEV Model)
Refer to PROCEDURE - Step 6 - REMOVE REAR COIL SPRING

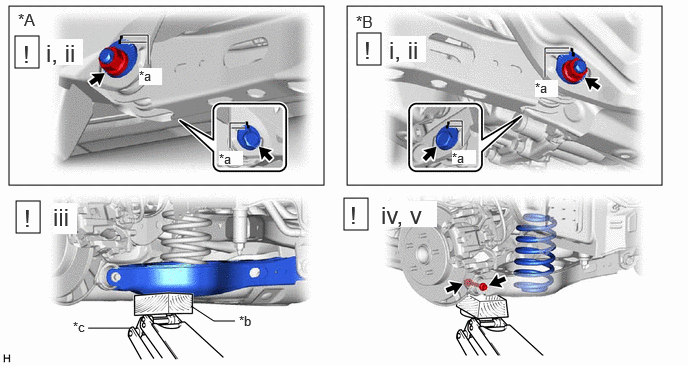

*A for HEV Model 2WD *B for HEV Model AWD, PHEV Model *a Matchmark *b Wooden Block *c Jack - - - Place matchmarks on the No. 2 camber adjust cam, rear suspension toe adjust cam sub-assembly and rear suspension member sub-assembly.
- Loosen the nut (rear suspension member sub-assembly side) of the rear No. 2 suspension arm assembly.NOTE:
Hold the rear suspension toe adjust cam sub-assembly while rotating the nut.
- Using a jack and wooden block, support the rear No. 2 suspension arm assembly.NOTE:
- When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
- Make sure to perform this operation with the vehicle kept as low as possible.
- Remove the bolt and nut, and separate the rear No. 2 suspension arm assembly from the rear axle carrier sub-assembly.NOTE:
Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.
- Slowly lower the rear No. 2 suspension arm assembly, and then remove the rear coil spring.

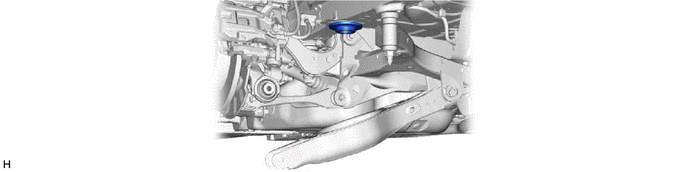

- REMOVE REAR UPPER COIL SPRING INSULATOR

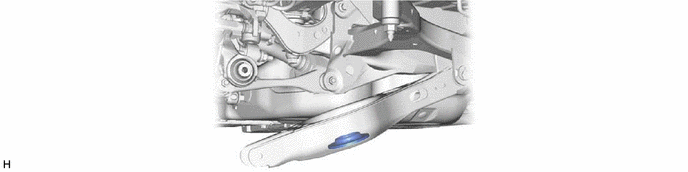

- REMOVE REAR LOWER COIL SPRING INSULATOR
