Removal [03/2023 - ]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read Precaution thoroughly before servicing.

    GTY607029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [12/2022 - ]

    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [12/2022 - ]
  2. REMOVE BATTERY SERVICE HOLE COVER ASSEMBLY (for M20A-FXS)
    Refer to PROCEDURE - Step 2
  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    WARNING:

    Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. for M20A-FXS:

      Refer to PROCEDURE - Step 3

    2. for 2ZR-FXE:

      Refer to PROCEDURE - Step 2

  4. REMOVE FRONT DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 10

  5. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP

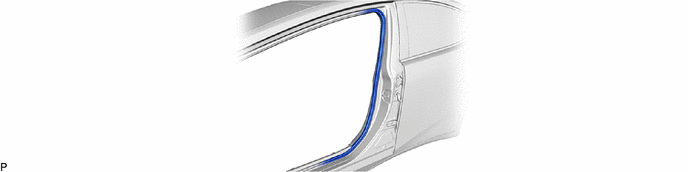

    1. GTY1160110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR DOOR SCUFF PLATE INSIDE

    Refer to PROCEDURE - Step 14

  7. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

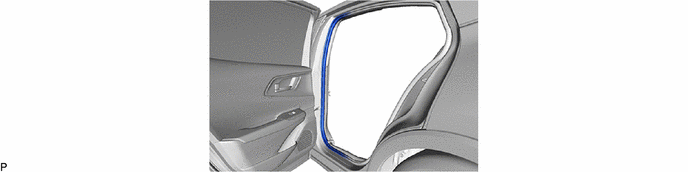

    1. GTY1160111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE LAP BELT OUTER ANCHOR COVER

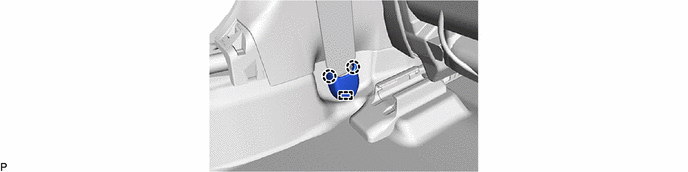

    1. GTY1160112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY

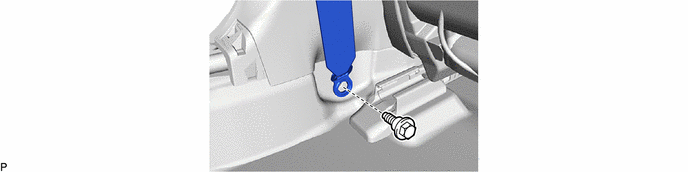

    1. GTY1160099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE CENTER PILLAR LOWER GARNISH

    Refer to PROCEDURE - Step 19

  11. REMOVE CENTER PILLER GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 20

  12. REMOVE FRONT SEAT OUTER BELT ASSEMBLY

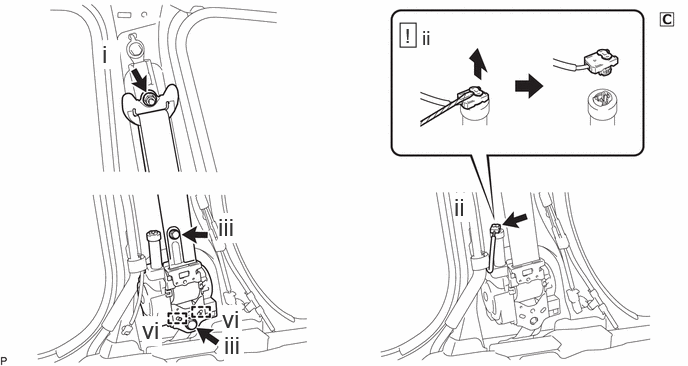

    1. GTY1149106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the nut and disconnect the shoulder anchor of the front seat outer belt assembly.
      2. Using a screwdriver with its tip wrapped with protective tape, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector.
      3. Remove the 2 bolts.
      4. Disengage the 2 guides to remove the front seat outer belt assembly.
  13. REMOVE FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the front shoulder belt anchor adjuster assembly is necessary.

    1. GTY1160100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
