Removal [03/2023 - ]: Procedure

PRECAUTION

NOTE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
Refer to BEFORE DISCONNECTING BATTERY [12/2022 - ]
Make sure to read the precautions of the electric parking brake system before removing the rear brake assembly.
Refer to PRECAUTION [12/2022 - ]

REMOVE REAR WHEEL
Refer to REMOVAL [12/2022 - ]
PERFORM REAR BRAKE PAD REPLACEMENT MODE

Refer to REAR BRAKE PAD REPLACEMENT MODE [12/2022 - ]
DISABLE BRAKE CONTROL

Refer to PROCEDURE - Step 4
DISCONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY

Refer to PROCEDURE - Step 4

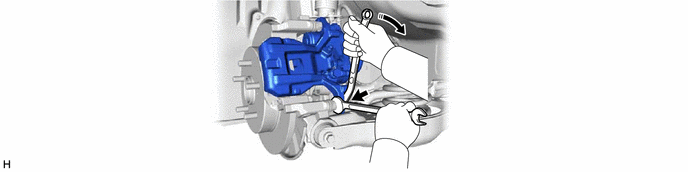

SEPARATE REAR DISC BRAKE CYLINDER ASSEMBLY

WARNING:

GTY1073869

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Be careful not to get pinched by the rear disc brake cylinder assembly or other parts when removing the rear disc brake pads.
After lifting up the rear disc brake cylinder assembly, secure it in place before performing any work on it.
The rear disc brake cylinder assembly could fall, pinching hands or fingers and causing injury.

GTY1153731

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR DISC BRAKE PAD

GTY1139810

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR DISC BRAKE ANTI-SQUEAL SHIM KIT

GTY1140446

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Rear Disc Brake Pad	*2	Rear No. 1 Disc Brake Anti-squeal Shim
*3	Rear No. 2 Disc Brake Anti-squeal Shim	*4	Rear Disc Brake Pad Wear Indicator Plate

Remove the rear No. 1 disc brake anti-squeal shim and rear No. 2 disc brake anti-squeal shim from each rear disc brake pad.
Using a screwdriver, remove the rear disc brake pad wear indicator plate from each rear disc brake pad.
