Removal [12/2022 - ]: Procedure

  1. REMOVE RADIATOR SUPPORT OPENING COVER (w/o Grille Shutter)

    Refer to PROCEDURE - Step 3

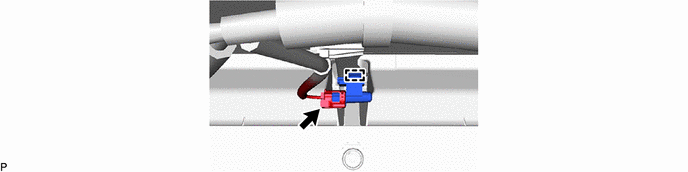

  2. REMOVE THERMISTOR ASSEMBLY (w/o Grille Shutter)
    1. GTY1143210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT BUMPER ASSEMBLY (w/ Grille Shutter)

    Refer to REMOVAL [12/2022 - ]

  4. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE LH (w/ Grille Shutter)

    See step  13

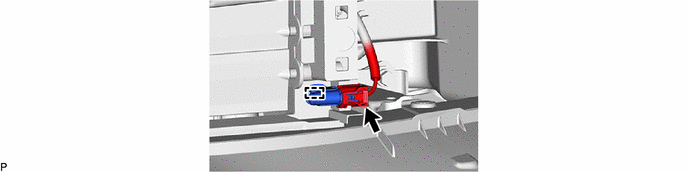

  5. REMOVE THERMISTOR ASSEMBLY (w/ Grille Shutter)
    1. GTY1143212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
