  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

  2. REMOVE FRONT BUMPER ENERGY ABSORBER

    See step  34 [12/2022 - 01/2025] See step  32 [01/2025 - ]

  3. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE LH

    Refer to PROCEDURE - Step 14

  4. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE RH
    1. Use the same procedure as for the LH side.
  5. REMOVE THERMISTOR ASSEMBLY

    Refer to PROCEDURE - Step 5

  6. REMOVE FRONT BUMPER LOWER ABSORBER

    See step  37 [12/2022 - 01/2025] See step  35 [01/2025 - ]

  7. REMOVE NO. 2 FRONT BUMPER REINFORCEMENT

    See step  43 [12/2022 - 01/2025] See step  41 [01/2025 - ]

  8. REMOVE RADIATOR SHUTTER ASSEMBLY

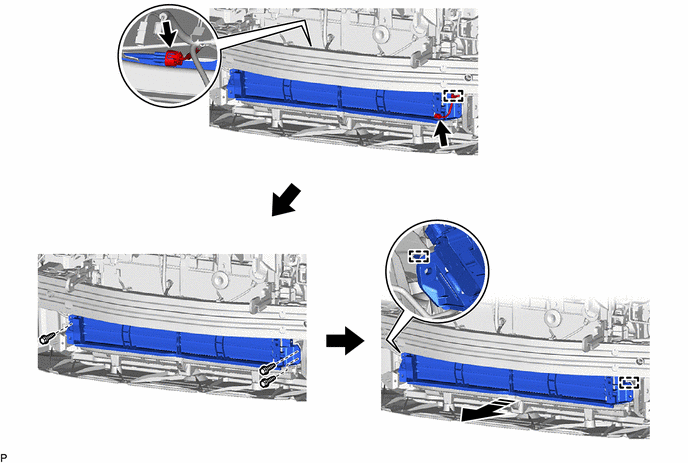

    1. GTY1150675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
