Removal [03/2023 - ]: Procedure

  1. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY

    Refer to DISASSEMBLY [03/2023 - ]

  2. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH

    Refer to PROCEDURE - Step 9

  3. REMOVE NO. 3 FRONT DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 13

  4. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY

    Refer to PROCEDURE - Step 7

  5. REMOVE FRONT DOOR BELT MOULDING ASSEMBLY

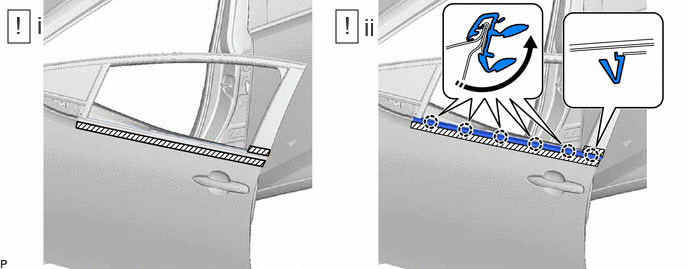

    1. GTY1158076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Apply protective tape around the front door belt moulding assembly as shown in the illustration.
      2. Disengage the 6 claws as shown in the illustration.
