Removal [12/2022 - ]: Procedure

  1. REMOVE QUARTER OUTSIDE MOULDING SUB-ASSEMBLY LH

    Refer to REMOVAL [12/2022 - ]

  2. REMOVE QUARTER OUTSIDE MOULDING SUB-ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  3. REMOVE REAR COMBINATION LIGHT COVER LH
    Refer to PROCEDURE - Step 1
  4. REMOVE REAR COMBINATION LIGHT COVER RH
    1. Use the same procedure as for the LH side.
  5. REMOVE REAR BUMPER ASSEMBLY

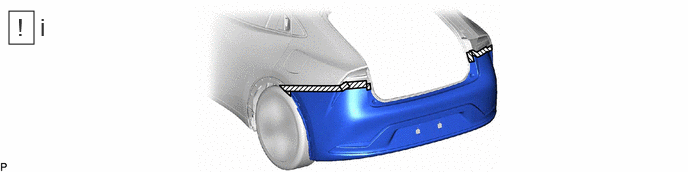

    1. GTY1155986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply protective tape around the rear bumper assembly as shown in the illustration.

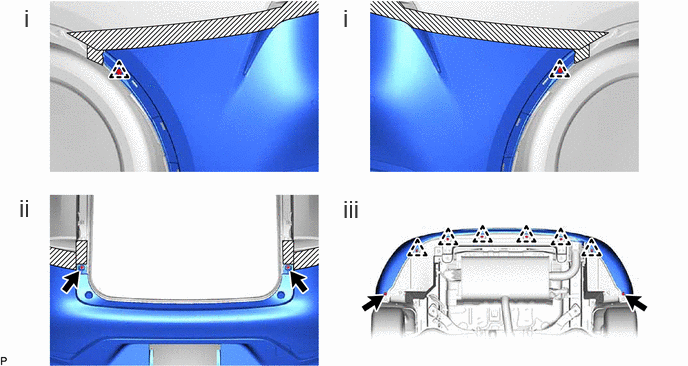

    2. GTY1148445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 clips.
      2. Remove the 2 screws.
      3. Remove the 6 clips and 2 screws.

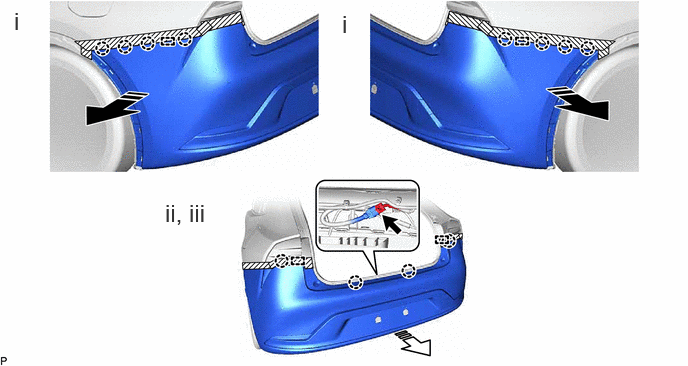

    3. GTY1141609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
      1. Disengage the 8 claws and 2 guides.
      2. Disengage the 4 claws and 2 guides.
      3. Disconnect the connector and remove the rear bumper assembly.
