Adjustment [12/2022 - ]: Procedure

1. for Normal Roof:

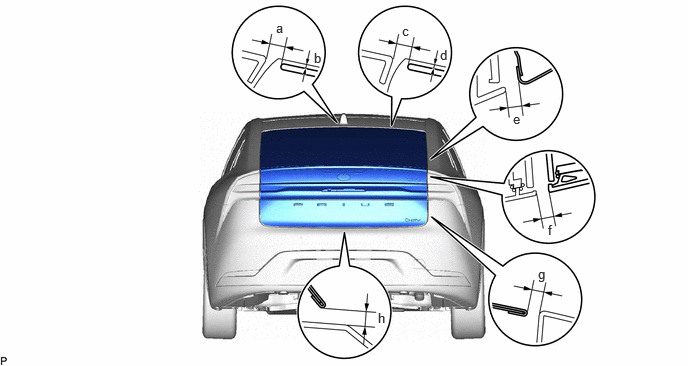

   1. Check that the clearance measurements of areas a through h are within each standard range.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      STANDARD CLEARANCE



      Area	Measurement	Area	Measurement
      a	6.6 to 10.6 mm (0.260 to 0.417 in.)	b	0 to 4.0 mm (0 to 0.157 in.)
      c	6.6 to 10.6 mm (0.260 to 0.417 in.)	d	-0.1 to 3.9 mm (-0.004 to 0.154 in.)
      e	4.0 to 8.0 mm (0.157 to 0.315 in.)	f	3.4 to 8.4 mm (0.134 to 0.331 in.)
      g	3.1 to 8.1 mm (0.122 to 0.319 in.)	h	5.8 to 9.9 mm (0.228 to 0.390 in.)

2. except Normal Roof:

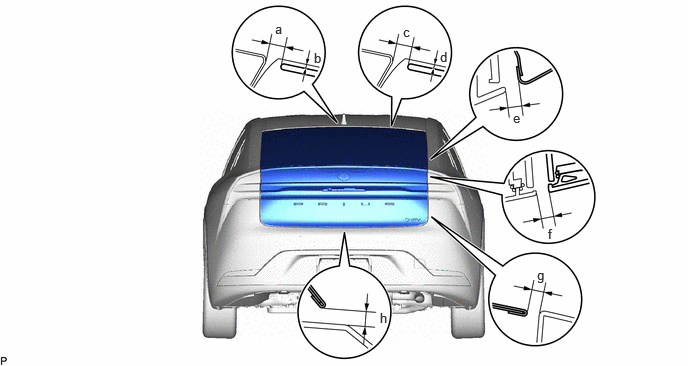

   1. Check that the clearance measurements of areas a through h are within each standard range.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      STANDARD CLEARANCE



      Area	Measurement	Area	Measurement
      a	6.5 to 11.5 mm (0.256 to 0.453 in.)	b	-0.5 to 4.5 mm (-0.020 to 0.177 in.)
      c	6.5 to 11.5 mm (0.256 to 0.453 in.)	d	-0.4 to 4.6 mm (-0.016 to 0.181 in.)
      e	4.0 to 8.0 mm (0.157 to 0.315 in.)	f	3.4 to 8.4 mm (0.134 to 0.331 in.)
      g	3.1 to 8.1 mm (0.122 to 0.319 in.)	h	5.8 to 9.9 mm (0.228 to 0.390 in.)

Refer to PROCEDURE - Step 2 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 2 [03/2023 - ]

Refer to PROCEDURE - Step 3 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 3 [03/2023 - ]

Refer to PROCEDURE - Step 4 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 4 [03/2023 - ]

Refer to PROCEDURE - Step 5 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 5 [03/2023 - ]

Refer to PROCEDURE - Step 36 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 36 [03/2023 - ]

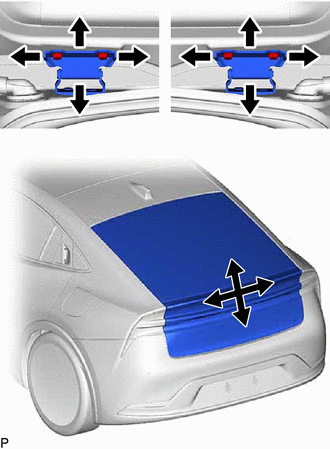

1. Loosen the 4 hinge bolts on the back door and adjust the back door position.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Tighten the 4 hinge bolts on the vehicle body after adjustment.

   Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

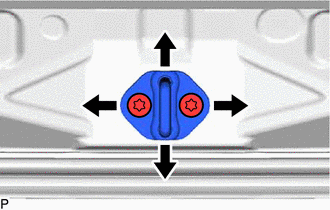

3. Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Using a brass bar and a hammer, hit the striker to adjust its position.
5. Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustment.

   Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)
