Removal [12/2022 - ]: Procedure

  1. REMOVE REAR TELEVISION CAMERA ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

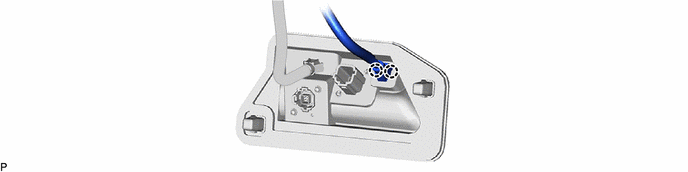

  2. REMOVE NO. 1 CAMERA CLEANER NOZZLE ASSEMBLY
    1. GTY1141185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

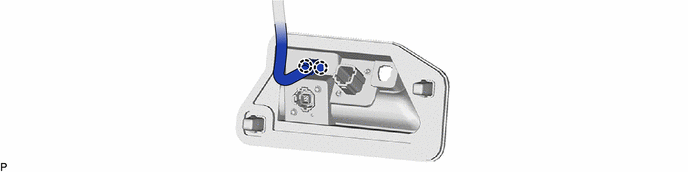

  3. REMOVE NO. 2 CAMERA CLEANER NOZZLE ASSEMBLY
    1. GTY1147350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
