Removal [02/2024 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [02/2024 - ]
  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to REMOVAL [02/2024 - ]

  3. REMOVE REAR NO. 2 SEAT ASSEMBLY (w/ Rear No. 2 Seat)

    Refer to REMOVAL [02/2024 - ]

  4. REMOVE ROPE HOOK ASSEMBLY (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 9

  5. REMOVE DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 10

  6. REMOVE FRONT DECK FLOOR BOX (w/o Rear No. 2 Seat)
    Refer to PROCEDURE - Step 12
  7. REMOVE REAR FLOOR REAR MAT (w/ Rear No. 2 Seat)

    Refer to PROCEDURE - Step 23

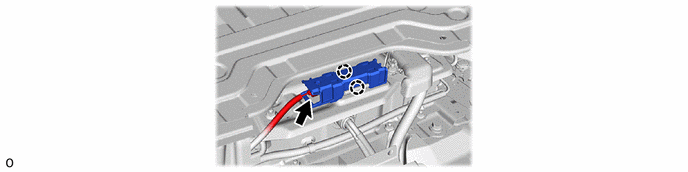

  8. REMOVE NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY
    1. GTY1226980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
