Installation [02/2024 - ]: Procedure

  1. INSTALL FRONT ENGINE MOUNTING INSULATOR RH

    Refer to PROCEDURE - Step 1

  2. INSTALL FRONT ENGINE MOUNTING INSULATOR LH

    Refer to PROCEDURE - Step 2

  3. INSTALL FRONT NO. 1 ENGINE MOUNTING BRACKET RH

    Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

  4. INSTALL FRONT NO. 1 ENGINE MOUNTING BRACKET LH

    Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

  5. INSTALL ENGINE WIRE

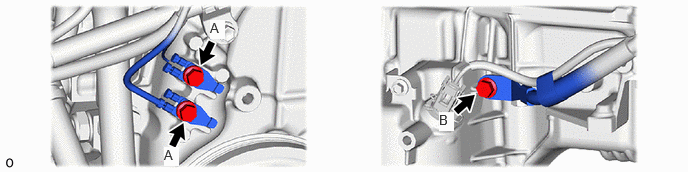

    1. GTY1221739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt A

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      Bolt B

      Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

  6. INSTALL ENGINE HANGER
    See step  40
  7. INSTALL V-RIBBED BELT TENSIONER ASSEMBLY
    NOTE:
    • Do not apply or add any oil or grease to the belt tensioner to prevent abnormal noises from the belt tensioner pulley, belt squealing, etc.
    • Do not allow oil or grease to adhere to the moving parts of the belt tensioner, as this may cause malfunctions.
    GTY743260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  8. INSTALL COMPRESSOR WITH MOTOR ASSEMBLY
    Refer to PROCEDURE - Step 2
  9. INSTALL FUEL PUMP PROTECTOR

    Refer to PROCEDURE - Step 9

  10. INSTALL FUEL HOSE PROTECTOR

    Refer to PROCEDURE - Step 11

  11. INSTALL PCV PRESSURE SENSOR CHAMBER
    Refer to PROCEDURE - Step 12
  12. INSTALL VACUUM SENSOR ASSEMBLY

    Refer to PROCEDURE - Step 1

  13. REMOVE ENGINE STAND
  14. INSTALL ENGINE ASSEMBLY

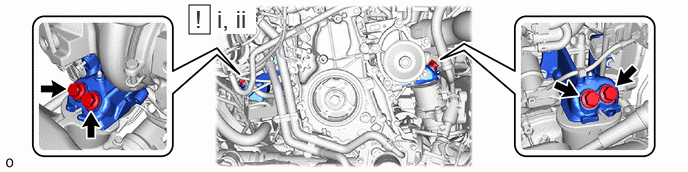

    1. GTY1223698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Slowly lower the engine into the engine compartment.
      2. Install the front engine mounting insulator LH and front engine mounting insulator RH with the 4 bolts.

        Torque: 140 N.m (1428 kgf/cm, 103 ft.lbf)

  15. INSTALL VENTILATION HOSE
  16. INSTALL NO. 2 VENTILATION HOSE
  17. REMOVE ENGINE HANGER
  18. INSTALL HOSE VACUUM HEAT INSULATOR

    Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

  19. INSTALL MOTOR CABLE
  20. INSTALL NO. 1 CRANKSHAFT POSITION SENSOR PLATE
    See step  2
  21. INSTALL FLYWHEEL SUB-ASSEMBLY
    See step  3
  22. INSTALL HYBRID VEHICLE TRANSMISSION ASSEMBLY WITH TRANSFER ASSEMBLY

    Refer to INSTALLATION [02/2024 - ]

  23. CONNECT FUEL TUBE SUB-ASSEMBLY

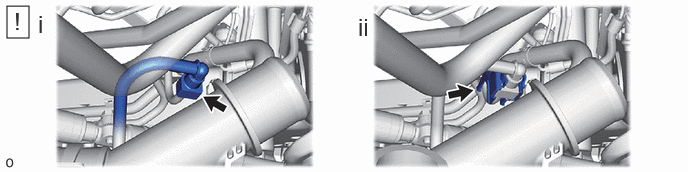

    1. GTY1225515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the fuel tube sub-assembly.

        Refer to PRECAUTION [02/2024 - ]

      2. Install the EFI fuel pipe clamp (fuel tube sub-assembly side) to the fuel tube connector.
  24. CONNECT SUCTION HOSE
    Refer to PROCEDURE - Step 4
  25. CONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE
    Refer to PROCEDURE - Step 5
  26. INSTALL WATER PUMP AND CRANKSHAFT PULLEY V BELT
    Refer to INSTALLATION [02/2024 - ]
  27. CONNECT HEATER RETURN HOSE CONNECTOR

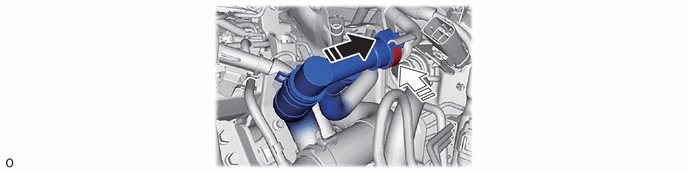

    1. GTY1224934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction Push retainer in arrow direction
  28. CONNECT WATER HOSE SUB-ASSEMBLY B

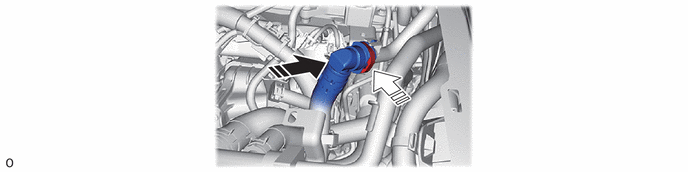

    1. GTY1224810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction Push retainer in arrow direction
  29. CONNECT FUEL VAPOR FEED HOSE ASSEMBLY
  30. INSTALL UPPER ARM BUSH INSULATOR

    Torque: 26 N.m (265 kgf/cm, 19 ft.lbf)

  31. INSTALL INVERTER COOLING PIPE ASSEMBLY

    Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

  32. INSTALL TURBOCHARGER SUB-ASSEMBLY

    Refer to INSTALLATION [02/2024 - ]

  33. CONNECT ENGINE WIRE

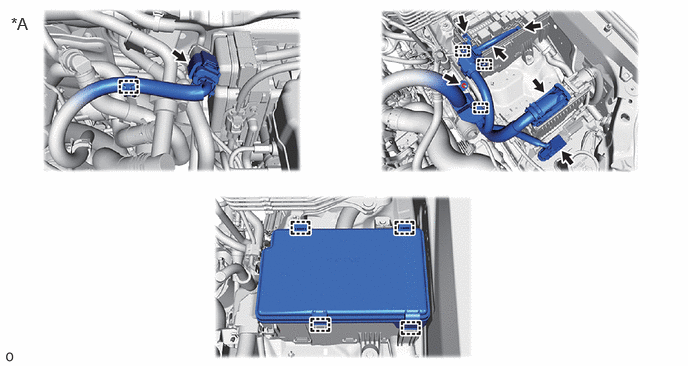

    1. GTY1225303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for LH Side - -

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

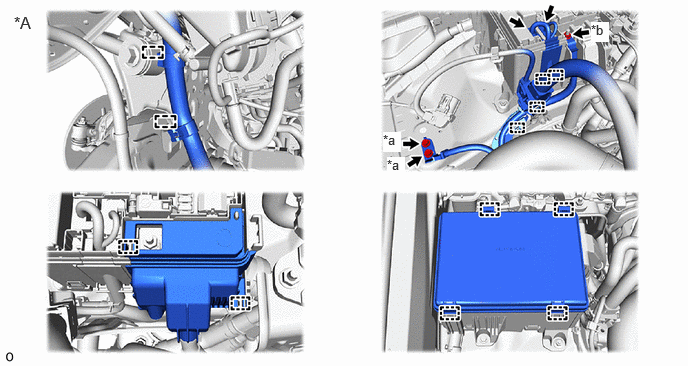

    2. GTY1223700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for RH Side - -
      *a Bolt *b Nut

      for bolt

      Torque: 19 N.m (194 kgf/cm, 14 ft.lbf)

      for nut

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  34. INSTALL AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17

  35. INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18

  36. INSTALL AIR CLEANER CAP WITH NO. 1 AIR CLEANER HOSE

    Refer to PROCEDURE - Step 19

  37. INSTALL FRONT CROSS MEMBER

    Torque: 88 N.m (897 kgf/cm, 65 ft.lbf)

  38. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

    Refer to INSTALLATION [02/2024 - ]

  39. INSTALL HOOD SUB-ASSEMBLY
    WARNING:

    Be sure to perform this procedure with several people as the hood sub-assembly is very heavy.
    1. GTY1224881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 13 N.m (133 kgf/cm, 10 ft.lbf)

  40. ADJUST HOOD SUB-ASSEMBLY

    Refer to ADJUSTMENT [02/2024 - ]

  41. INSTALL RADIATOR ASSEMBLY

    Refer to INSTALLATION [02/2024 - ]

  42. INSTALL FRONT FENDER APRON TRIM PACKING D
  43. INSTALL FRONT FENDER APRON TRIM PACKING C
  44. INSTALL FRONT FENDER APRON TRIM PACKING B
  45. INSTALL FRONT FENDER APRON TRIM PACKING A
  46. INSTALL FRONT WHEEL

    Refer to INSTALLATION [02/2024 - ]

  47. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

    Torque: 29 N.m (296 kgf/cm, 21 ft.lbf)

  48. INSTALL NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY

    Torque: 29 N.m (296 kgf/cm, 21 ft.lbf)

  49. INSTALL FRONT BUMPER GUARD BASE COVER

    Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

  50. INSTALL FRONT BUMPER ASSEMBLY

    Refer to INSTALLATION [02/2024 - ]

  51. CONNECT NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to INSTALLATION [02/2024 - ]

  52. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

    HINT:

    When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

    Refer to AUTOMATIC LEARNING CHART [02/2024 - ]

  53. ADD ENGINE OIL

    Refer to PROCEDURE - Step 7

  54. ADD AND ADJUST TRANSMISSION FLUID

    Refer to REPLACEMENT [02/2024 - ]

  55. ADD ENGINE COOLANT

    Refer to PROCEDURE - Step 4

  56. ADD COOLANT (for Inverter)
  57. CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT

    Refer to PROCEDURE - Step 3

  58. WARM UP COMPRESSOR

    Refer to PROCEDURE - Step 4

  59. INSPECT FOR ENGINE OIL LEAK

    Refer to PROCEDURE - Step 8

  60. WARM UP ENGINE
  61. INSPECT FOR COOLANT LEAK (for Engine)

    Refer to PROCEDURE - Step 1

  62. INSPECT FOR COOLANT LEAK (for Inverter)

    Refer to PROCEDURE - Step 1

  63. INSPECT FOR REFRIGERANT LEAK
  64. INSPECT FOR FUEL LEAK

    Refer to PROCEDURE - Step 1

  65. INSPECT FOR EXHAUST GAS LEAK

    Refer to PROCEDURE - Step 4

  66. CHECK ENGINE OIL LEVEL

    Refer to PROCEDURE - Step 1

  67. INSPECT ENGINE COOLANT LEVEL IN RESERVOIR TANK (for Engine)

    Refer to PROCEDURE - Step 2

  68. INSPECT IGNITION TIMING

    See step  9

  69. INSPECT ENGINE IDLE SPEED

    See step  10

  70. INSPECT CO/HC

    See step  12
