Installation [02/2024 - ]: Procedure

  1. INSTALL NO. 1 TURBO WATER PIPE SUB-ASSEMBLY

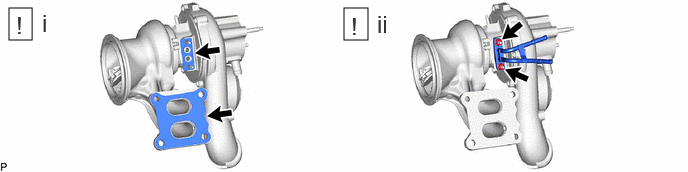

    1. GTY1226055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install 2 new gaskets as shown in the illustration.
      2. Install the No. 1 turbo water pipe sub-assembly with the bolt and 2 nuts.

        Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

  2. INSTALL TURBOCHARGER SUB-ASSEMBLY
    1. Fig 1: Turbocharger Sub-Assembly Tightening Sequence

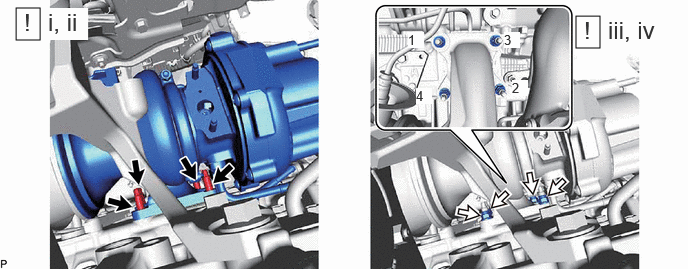

      GTY1225862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Stud bolt Nut
      1. Temporarily install the turbocharger sub-assembly to the engine sub-assembly with the 4 stud bolts.
      2. Using an E10 "TORX" socket wrench, install the 4 stud bolts.

        Torque: 19.5 N.m (199 kgf/cm, 14 ft.lbf)

      3. Temporarily install the 4 new nuts.
      4. Install the turbocharger sub-assembly with the 4 nuts in the order shown in the illustration.

        Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

        NOTE:
        • After tightening the 4 nuts to the specified torque, tighten the first nut again.
        • Do not apply excessive force to the turbocharger sub-assembly and No. 1 turbo oil pipe.
  3. INSTALL NO. 2 TURBO WATER HOSE

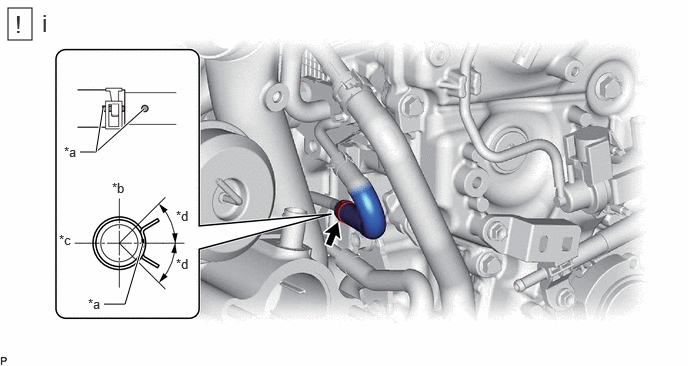

    1. GTY1181608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Paint Mark *b Upper Side of Vehicle
      *c Right Side of Vehicle *d 45° (Claw of Clip Location)
      1. Connect the No. 2 turbo water hose to the water outlet sub-assembly and slide the hose clamp to secure the hose.
        NOTE:

        The turbocharger sub-assembly may be damaged if the No. 2 turbo water hose are connected to the wrong locations.

        HINT:

        Make sure that the claws of the hose clamp are within the location shown in the illustration.

  4. INSTALL NO. 1 TURBO WATER HOSE

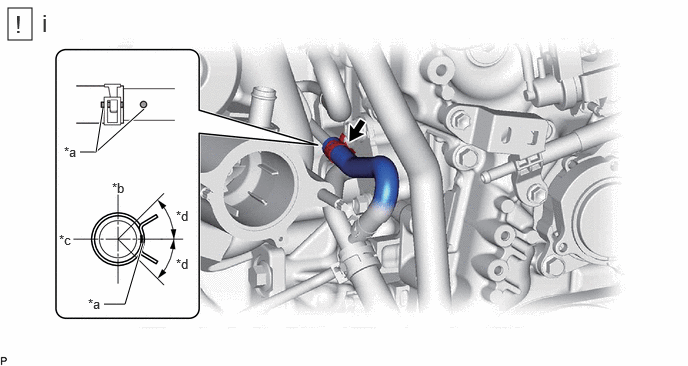

    1. GTY1223500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Paint Mark *b Upper Side of Vehicle
      *c Right Side of Vehicle *d 45° (Claw of Clip Location)
      1. Connect the No. 1 turbo water hose to the engine water pump assembly and slide the hose clamp to secure the hose.
        NOTE:

        The turbocharger sub-assembly may be damaged if the No. 1 turbo water hose are connected to the wrong locations.

        HINT:

        Make sure that the claws of the hose clamp are within the location shown in the illustration.

  5. INSTALL NO. 1 TURBO OIL PIPE

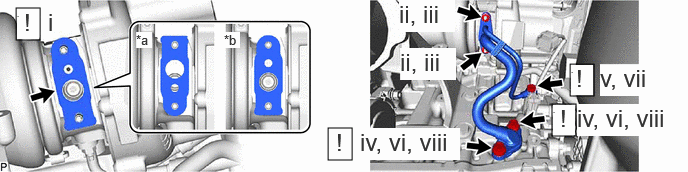

    1. GTY1225394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Incorrect *b Correct
      1. Install a new gasket as shown in the illustration.
        NOTE:

        Do not install the gasket upside down.

      2. Temporarily install the No. 1 turbo oil pipe with the 2 nuts.
      3. Tighten the 2 nuts.

        Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

      4. Install a new gasket as shown in the illustration.
        NOTE:

        The claws of the gasket must face the No. 1 turbo oil pipe.

      5. Install a new gasket to the union bolt side.
      6. Temporarily install the No. 1 turbo oil pipe with the union bolt and 2 bolts.
      7. Tighten the union bolt.

        Torque: 35 N.m (357 kgf/cm, 26 ft.lbf)

        NOTE:

        If the connecting part of the union bolt gasket is cracked, remove the connecting part.

      8. Tighten the 2 bolts.

        Torque: 24 N.m (245 kgf/cm, 18 ft.lbf)

  6. INSTALL NO. 3 OIL COOLER TUBE CLAMP

    Torque: 13.5 N.m (138 kgf/cm, 10 ft.lbf)

  7. CONNECT ENGINE WIRE
    1. GTY1223730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connector Bolt
      Nut - -

      for Bolt

      Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

      for Nut

      Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)

  8. CONNECT OIL COOLER TUBE CLAMP

    Torque: 13.5 N.m (138 kgf/cm, 10 ft.lbf)

  9. CONNECT NO. 2 TURBO WATER HOSE

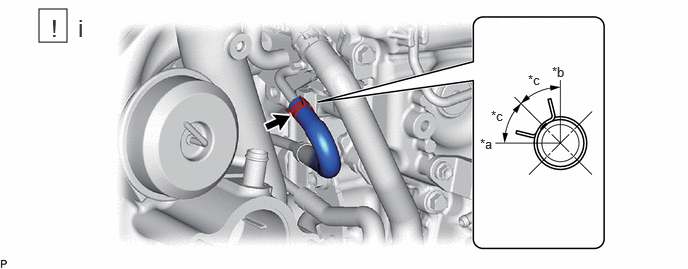

    1. GTY1188966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Right Side of Vehicle *b Upper Side of Vehicle
      *c 45° (Claw of Clip Location) - -
      1. Connect the No. 2 turbo water hose to the water outlet sub-assembly and slide the hose clamp to secure the hose.
        NOTE:

        The turbocharger sub-assembly may be damaged if the No. 1 turbo water hose and No. 2 turbo water hose are connected to the wrong locations.

        HINT:

        Make sure that the claws of the hose clamp are within the location shown in the illustration.

  10. CONNECT NO. 1 TURBO WATER HOSE

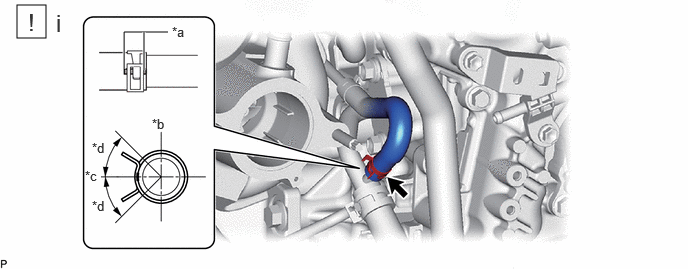

    1. GTY1190780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Paint Mark *b Upper Side of Vehicle
      *c Right Side of Vehicle *d 45° (Claw of Clip Location)
      1. Connect the No. 1 turbo water hose to the engine water pump assembly and slide the hose clamp to secure the hose.
        NOTE:

        The turbocharger sub-assembly may be damaged if the No. 1 turbo water hose and No. 2 turbo water hose are connected to the wrong locations.

        HINT:

        Make sure that the claws of the hose clamp are within the location shown in the illustration.

  11. INSTALL NO. 2 VENTILATION HOSE

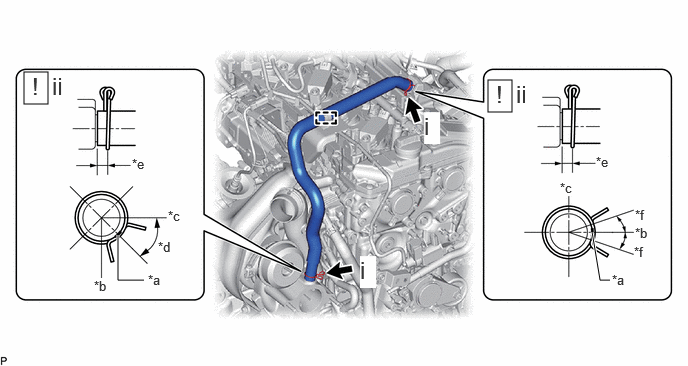

    1. GTY1190782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Paint Mark *b Front Side of Vehicle
      *c Left Side of Vehicle *d 45° (Claw of Clip Location)
      *e 9.0 to 15.0 mm (0.354 to 0.591 in.) *f 15° (Claw of Clip Location)
      1. Attach the clamp and install the No. 2 hose ventilation hose.
      2. Connect the No. 2 hose ventilation hose to the cylinder head cover sub-assembly and compressor inlet elbow sub-assembly and slide the 2 hose clamps to secure the hoses.

        HINT:

        Make sure that the claws of the hose clamp are within the location shown in the illustration.

  12. INSTALL COMPRESSOR INLET ELBOW SUB-ASSEMBLY

    Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  13. CONNECT VACUUM TRANSMITTING HOSE ASSEMBLY
  14. CONNECT NO. 3 FUEL VAPOR FEED HOSE
  15. CONNECT NO. 2 AIR HOSE
  16. INSTALL NO. 1 AIR HOSE

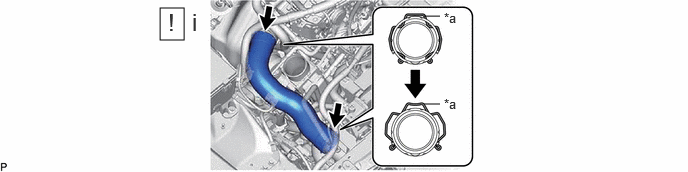

    1. GTY1225625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer - -
      1. Connect the No. 1 air hose to the intercooler assembly and lock the 2 retainers as shown in the illustration.
        NOTE:

        Securely insert the retainer so that the 4 locks are engaged. Then, pull and check that the locks are engaged and that the hose cannot be pulled out.

        HINT:

        • Install so that the protrusion on the intercooler assembly and the stoppers are aligned.
        • Make sure that the retainer end contacts the stopper as shown in the illustration.

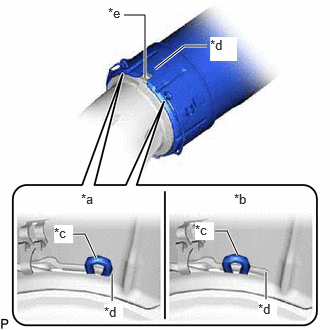

        GTY1224142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Correct
        *b Incorrect
        *c Retainer End
        *d Stopper
        *e Protrusion
  17. INSTALL AIR CLEANER CASE SUB-ASSEMBLY
  18. INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
  19. INSTALL AIR CLEANER CAP WITH NO. 1 AIR CLEANER HOSE

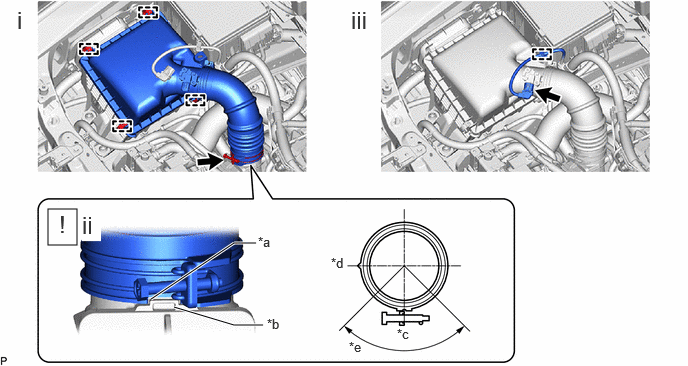

    1. GTY1183459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Cutout *b Protrusion
      *c Front Side of Vehicle *d Right Side of Vehicle
      *e 90° - -
      1. Attach the 4 clips to install the air cleaner cap sub-assembly with air cleaner hose in the position shown in the illustration.
      2. Tighten the hose clamp in the position shown in the illustration.

        Torque: 4.0 N.m (41 kgf/cm, 35 in.lbf)

        HINT:

        Align the hose clamp at the locations shown in the illustration.

      3. Connect the mass air flow meter connector and attach the wire harness clamp.
  20. INSTALL CONVERTER WITH CATALYST ASSEMBLY

    Refer to INSTALLATION [02/2024 - ]

  21. ADD ENGINE OIL

    Refer to PROCEDURE - Step 7

  22. ADD ENGINE COOLANT

    Refer to PROCEDURE - Step 4

  23. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1

  24. INSPECT FOR ENGINE OIL LEAK

    Refer to PROCEDURE - Step 8

  25. CHECK ENGINE OIL LEVEL

    Refer to PROCEDURE - Step 1

  26. INSPECT FOR EXHAUST GAS LEAK

    See step  4

  27. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 47

  28. INSTALL NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 48
