Removal [02/2024 - ]: Procedure

PRECAUTION

NOTE:

When removing parts with double-sided tape applied, heat the portion of the parts with tape residue with a heat light if the double-sided tape is difficult to remove.

Standard Value

Part	Temperature
Metal parts	40 to 60°C (104 to 140°F)
Resin parts	20 to 30°C (68 to 86°F)

WARNING:

Do not touch the heat light and heated parts.
Touching the heat light may result in burns.
Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

NOTE:

Do not heat the part excessively.

REMOVE REAR DOOR BELT MOULDING LH
Refer to REMOVAL [02/2024 - ]

REMOVE REAR DOOR WEATHERSTRIP LH

Remove the rear door weatherstrip LH enough that the rear door window frame moulding LH (Center Pillar Side) can be removed.
Refer to PROCEDURE - Step 35

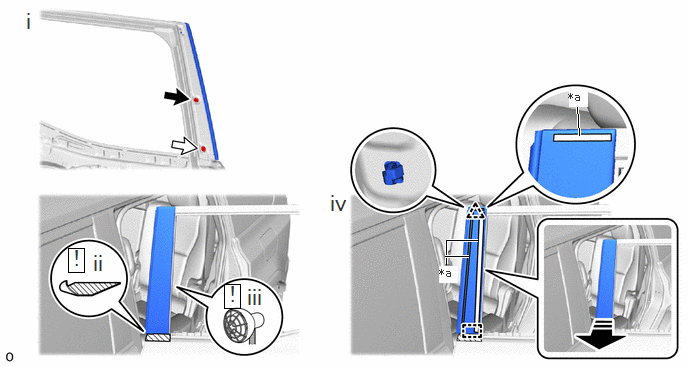

REMOVE REAR DOOR WINDOW FRAME MOULDING LH (CENTER PILLAR SIDE)

*a	Double-sided Tape	-	-
	Remove in this Direction		Retainer
	Clip	-	-

Remove the retainer and clip.
Put protective tape around the rear door window frame moulding LH (center pillar side).
Heat the double-sided tape of the rear door window frame moulding LH (center pillar side) using a heat light.
Detach the clip and guide and remove the rear door window frame moulding LH (center pillar side) as shown in the illustration.
