Disassembly [02/2024 - ]: Procedure

  1. REMOVE HEADLIGHT ASSEMBLY LH
    1. for Triple Beam Headlight:

      Refer to REMOVAL [02/2024 - ]

    2. for Single Beam Headlight:

      Refer to REMOVAL [02/2024 - ]

  2. REMOVE WHEEL ASSEMBLY

    Refer to REMOVAL [02/2024 - ]

  3. REMOVE FRONT FENDER NO. 2 TO COWL SIDE SEAL LH

    Refer to PROCEDURE - Step 4

  4. REMOVE FRONT FENDER TO COWL SIDE SEAL LH

    Refer to PROCEDURE - Step 6

  5. REMOVE BODY ROCKER PANEL MOULDING ASSEMBLY LH

    Refer to REMOVAL [02/2024 - ]

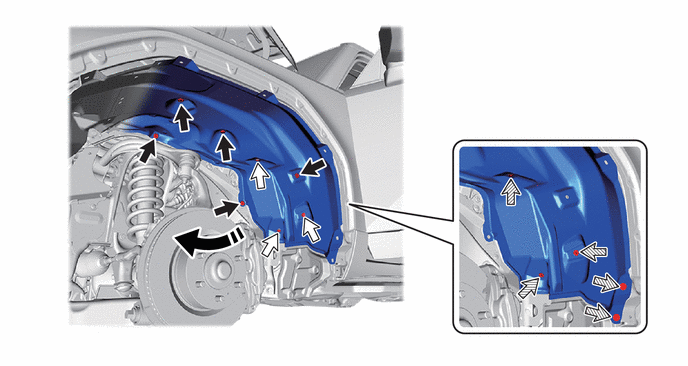

  6. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH
    1. GTY1255231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fold Back Clip
      Screw Grommet

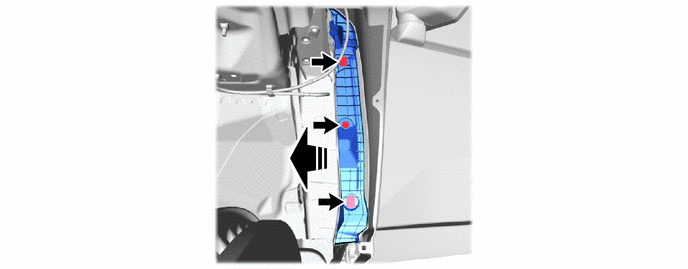

  7. REMOVE FRONT FENDER SIDE PANEL PROTECTOR LH
    1. GTY1225348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

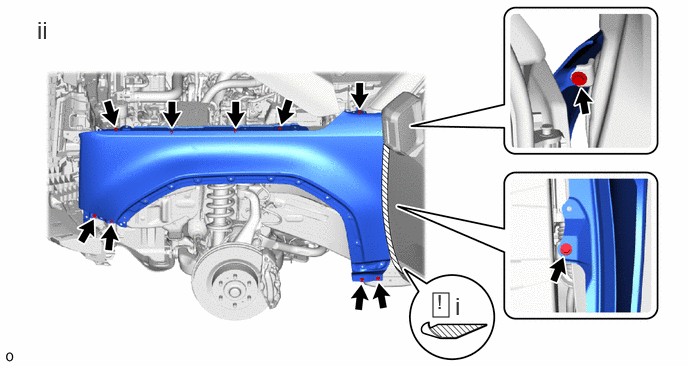

  8. REMOVE FRONT FENDER SUB-ASSEMBLY LH
    1. GTY1254990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Put protective tape around the front fender sub-assembly LH.
      2. Remove the 11 bolts and front fender sub-assembly LH.

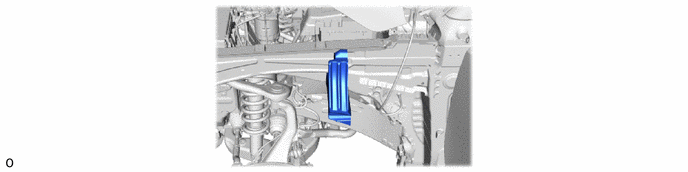

  9. REMOVE FRONT SIDE NO. 2 AIR GUIDE
    1. GTY1226449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
