Removal [02/2024 - ]: Procedure

  1. REMOVE FRONT WIPER ARM HEAD CAP
    HINT:
    • Use the same procedure for the RH and LH sides.
    • The procedure described below is for the LH side.

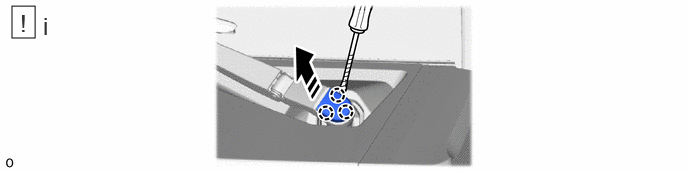

    1. GTY1225451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using a screwdriver with its tip wrapped with protective tape, detach the claw as shown in the illustration to remove the front wiper arm head cap.
  2. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH

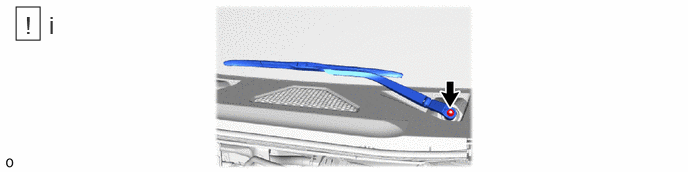

    1. GTY1226019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the nut and front wiper arm and blade assembly LH.

        HINT:

        While holding the front wiper arm and blade assembly LH, loosen the nut.

  3. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH

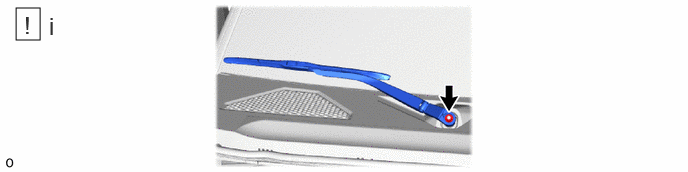

    1. GTY1225203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the nut and front wiper arm and blade assembly RH.

        HINT:

        While holding the front wiper arm and blade assembly RH, loosen the nut.

  4. REMOVE NO. 2 FRONT FENDER TO COWL SIDE SEAL LH

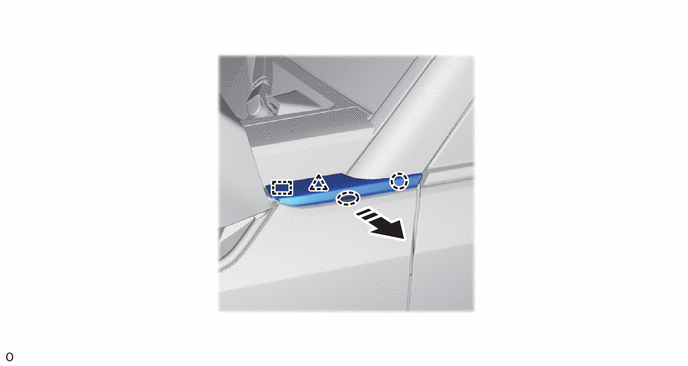

    1. GTY1226368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
  5. REMOVE NO. 2 FRONT FENDER TO COWL SIDE SEAL RH
    1. Use the same procedure described for the LH side.
  6. REMOVE FRONT FENDER TO COWL SIDE SEAL LH

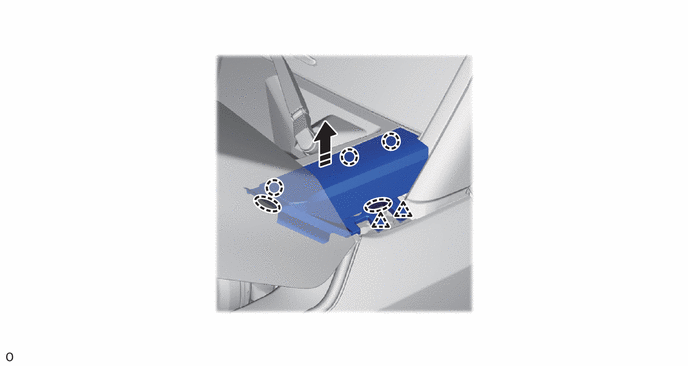

    1. GTY1226301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
  7. REMOVE FRONT FENDER TO COWL SIDE SEAL RH
    1. Use the same procedure described for the LH side.
  8. REMOVE COWL SIDE VENTILATOR COVER SUB-ASSEMBLY LH

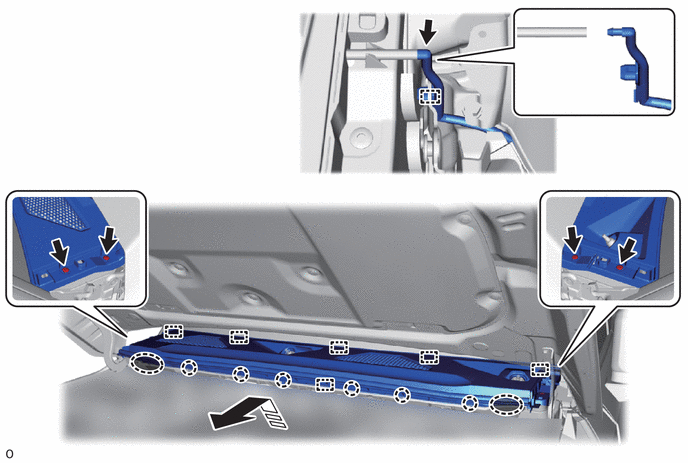

    1. GTY1224051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
  9. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

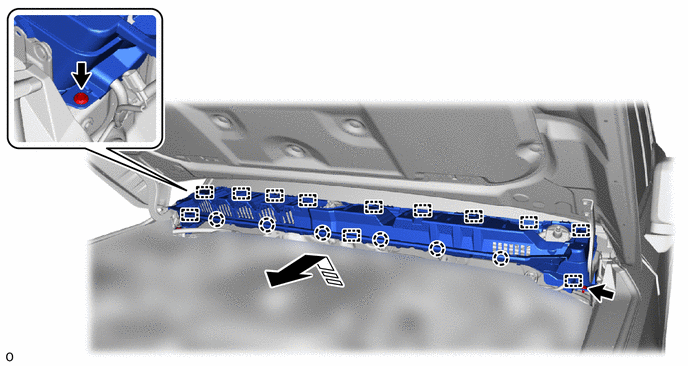

    1. GTY1223530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  10. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
    NOTE:

    Be careful not to damage the windshield glass when removing the windshield wiper motor and link assembly.

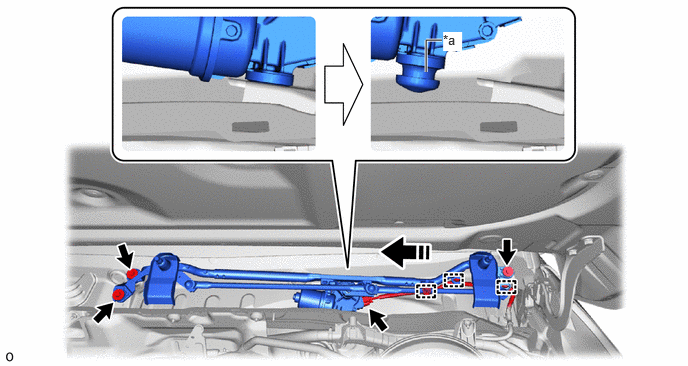

    1. GTY1220608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Motor Grommet - -
      Remove in this Direction - -
  11. REMOVE WINDSHIELD WIPER MOTOR ASSEMBLY

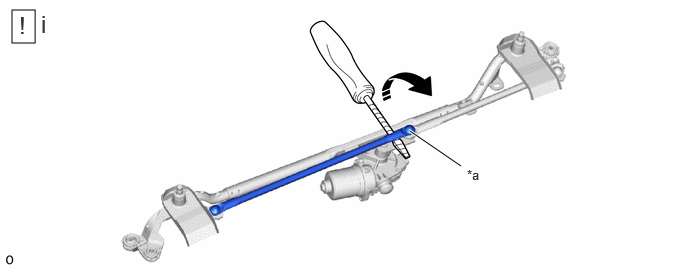

    1. GTY1212788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wiper Motor Pivot - -
      Remove in this Direction - -
      1. Using a screwdriver with its tip wrapped with protective tape, disconnect the No. 1 wiper ring rod from the wiper motor pivot as shown in the illustration.

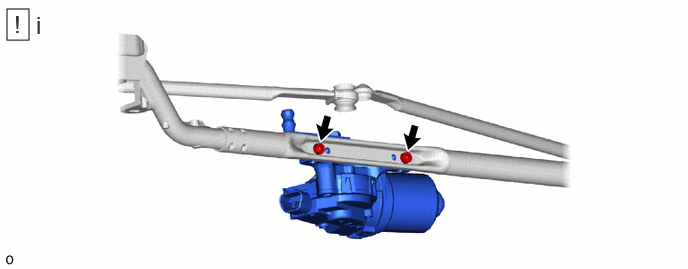

    2. GTY1216483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a T30 "TORX" socket wrench, remove the 2 "TORX" screws and the windshield wiper motor assembly.
        NOTE:

        Do not remove the wiper crank arm from the windshield wiper motor assembly.

  12. REMOVE HOOD TO COWL TOP SEAL

    HINT:

    Perform this procedure only when replacement of the hood to cowl top seal is necessary.

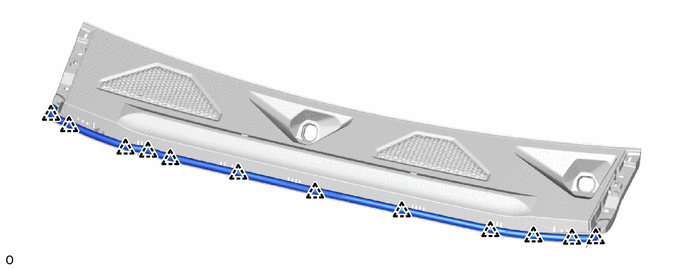

    1. GTY1226590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
