Removal [12/2022 - 03/2023]: Procedure

  1. SECURE VEHICLE
    Refer to PROCEDURE - Step 1
  2. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 10

  3. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 11

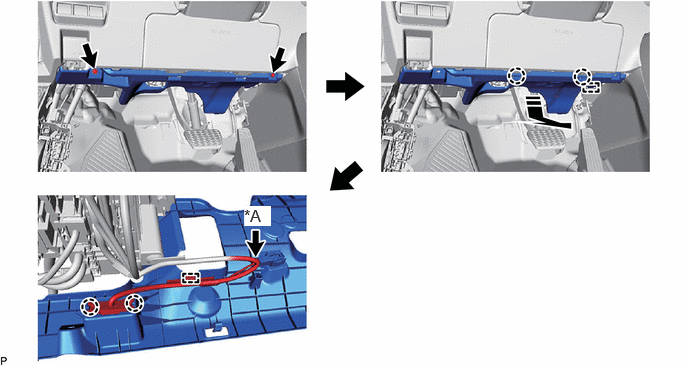

  4. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. GTY1153505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Illumination - -
      Remove in this Direction - -
  5. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

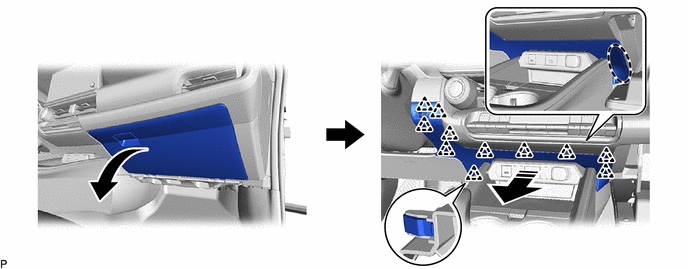

    1. GTY1153956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
    2. w/ Knee Airbag:

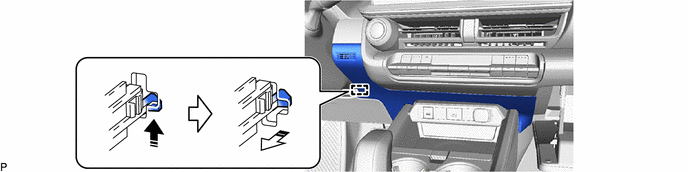

      GTY1159549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
  6. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  7. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
    1. GTY1141518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

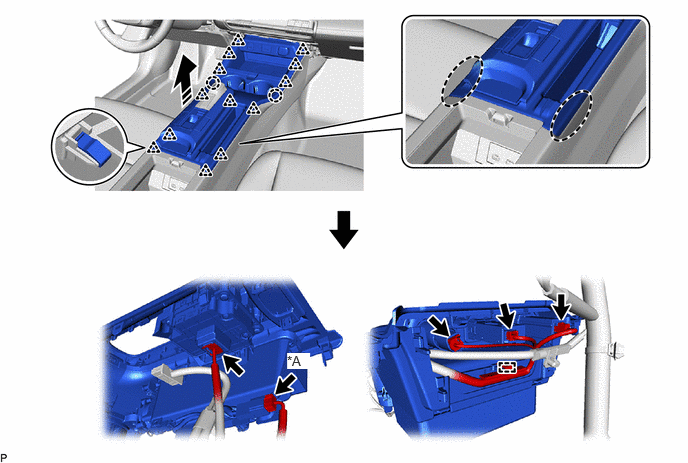

    2. GTY1146238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Wireless Charger - -
      Place Hand Here Remove in this Direction
  8. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY
    Refer to PROCEDURE - Step 8
  9. REMOVE FRONT NO. 1 CONSOLE BOX INSERT

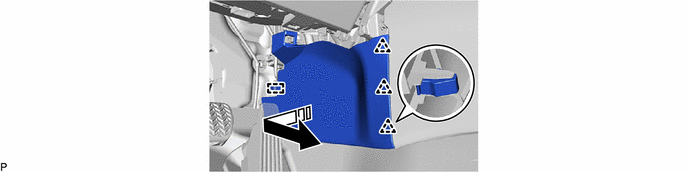

    1. GTY1139335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  10. REMOVE FRONT NO. 2 CONSOLE BOX INSERT

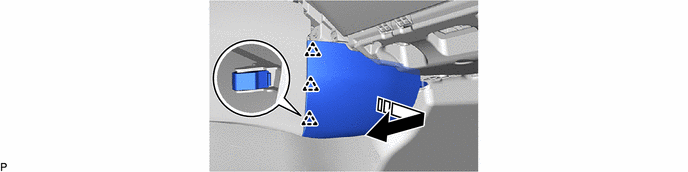

    1. GTY1156456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  11. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY

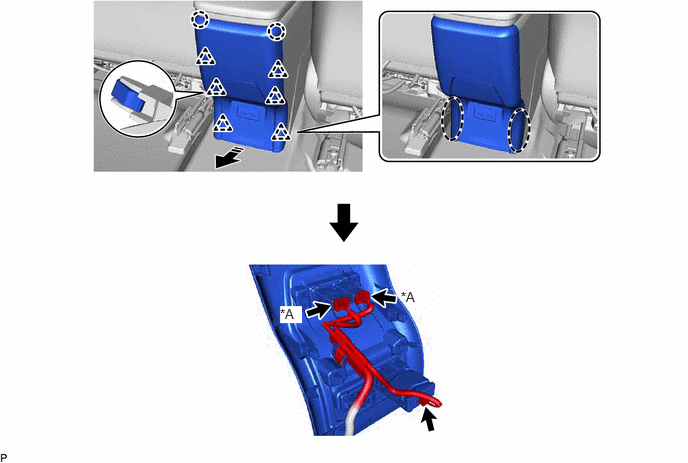

    1. GTY1153132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Seat Heater System - -
      Place Hand Here Remove in this Direction
  12. REMOVE CONSOLE BOX CARPET
    1. GTY1146028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE REAR CONSOLE BOX ASSEMBLY
    1. GTY1141814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  14. REMOVE FRONT CONSOLE BOX COVER

    HINT:

    Perform this procedure only when replacement of the front console box cover is necessary.

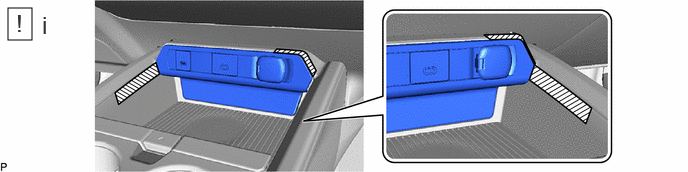

    1. GTY1145293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply protective tape to the area shown in the illustration.
    2. GTY1142487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using a moulding remover, disengage the 6 clips as shown in the illustration to remove the front console box cover.
      2. Disconnect each connector.
  15. REMOVE STEREO JACK ADAPTER ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the front console box cover is necessary.

    Refer to PROCEDURE - Step 2

  16. REMOVE USB CHARGER SOCKET

    HINT:

    Perform this procedure only when replacement of the front console box cover is necessary.

    Refer to PROCEDURE - Step 2
  17. REMOVE NO. 1 POWER OUTLET SOCKET ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the front console box cover is necessary.

    Refer to PROCEDURE - Step 3
  18. REMOVE NO. 1 POWER OUTLET SOCKET COVER

    HINT:

    Perform this procedure only when replacement of the front console box cover is necessary.

    Refer to PROCEDURE - Step 4
  19. REMOVE CONSOLE BOX POCKET

    HINT:

    Perform this procedure only when replacement of the console box pocket is necessary.

    1. GTY1141517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE CONSOLE CUP HOLDER BOX SUB-ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the console cup holder box sub-assembly is necessary.

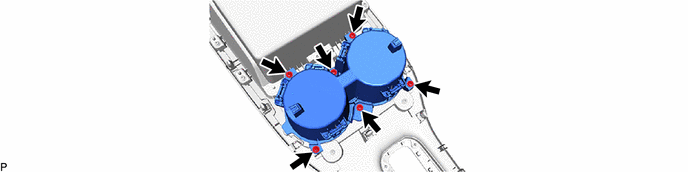

    1. GTY1146004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
