Removal [02/2024 - ]: Procedure
- PRECAUTION
Refer to PRECAUTION [02/2024 - ] - CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM (for Power Tilt and Power Telescopic Steering Column) NOTE:HINT: Record the customization settings before changing them.
Perform the customization settings before disconnecting the cable from the negative (-) auxiliary battery terminal. Otherwise, removal of the steering column cover becomes difficult.

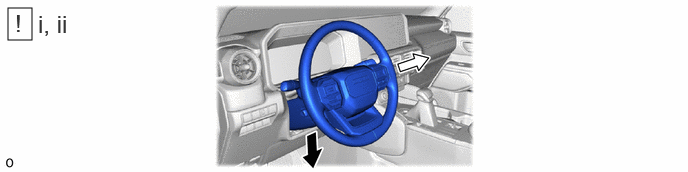

Fully Lower Fully Extend - Perform the customization settings.
Refer to CUSTOMIZE PARAMETERS [02/2024 - ]
- Move the steering wheel to its lowest and rearmost position.
- Perform the customization settings.

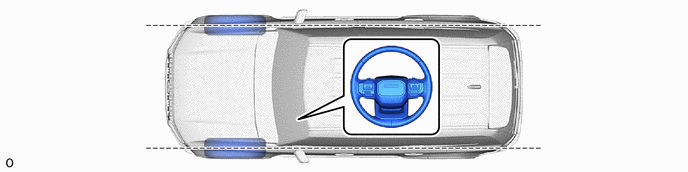

- ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
- REMOVE STEERING WHEEL ASSEMBLY
Refer to REMOVAL [02/2024 - ]
- REMOVE LOWER STEERING COLUMN COVER SUB-ASSEMBLY
- for Manual Tilt and Manual Telescopic Steering Column:

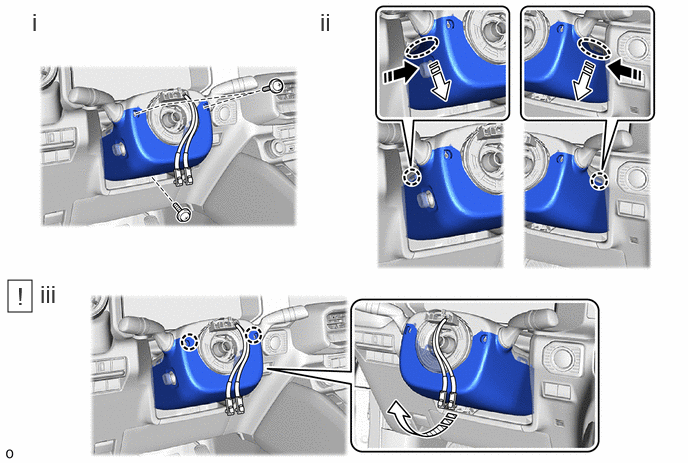

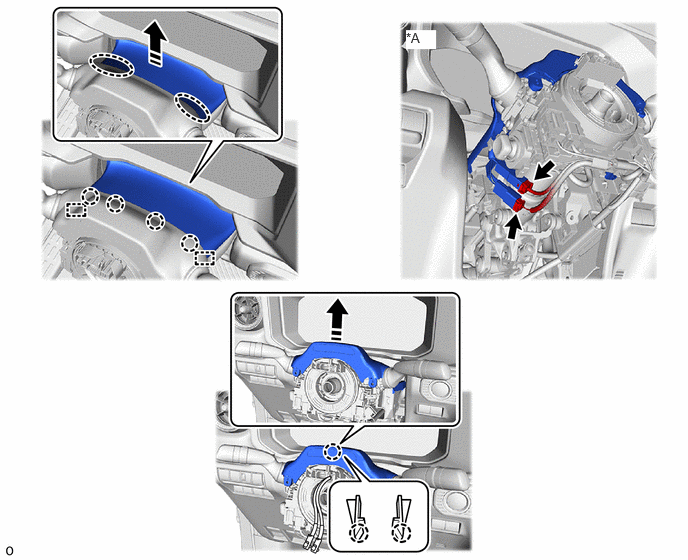

Push Area Remove in this Direction (1) Remove in this Direction (2) Remove in this Direction (3) - for Power Tilt and Power Telescopic Steering Column:

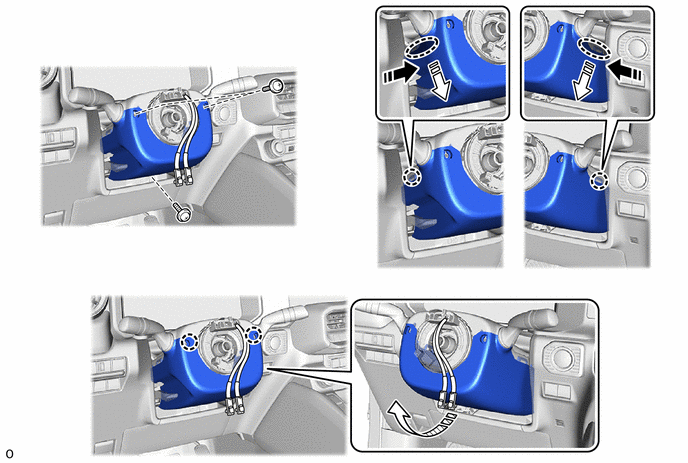

Push Area Remove in this Direction (1) Remove in this Direction (2) Remove in this Direction (3) - Remove the 3 screws.
- Push the lower steering column cover sub-assembly in the direction of the arrow shown in the illustration to detach the claw.
- Detach the claw and remove the lower steering column cover sub-assembly in the direction of the arrow shown in the illustration.NOTE:
Do not damage the tilt and telescopic switch.
- for Manual Tilt and Manual Telescopic Steering Column:
- REMOVE UPPER STEERING COLUMN COVER
- REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY NOTE:
- Do not replace the spiral cable with sensor sub-assembly with the battery connected and the ignition switch to ON.
- Do not rotate the spiral cable with sensor sub-assembly without the steering wheel assembly installed, with the battery connected and the ignition switch to ON.
- When rotating the spiral cable with sensor sub-assembly to check the operation of the spiral cable with sensor sub-assembly (checking for abnormal noise, checking the DTC, Data List, etc.), make sure to perform the inspection with the steering wheel assembly installed.
- for Manual Tilt and Manual Telescopic Steering Column:

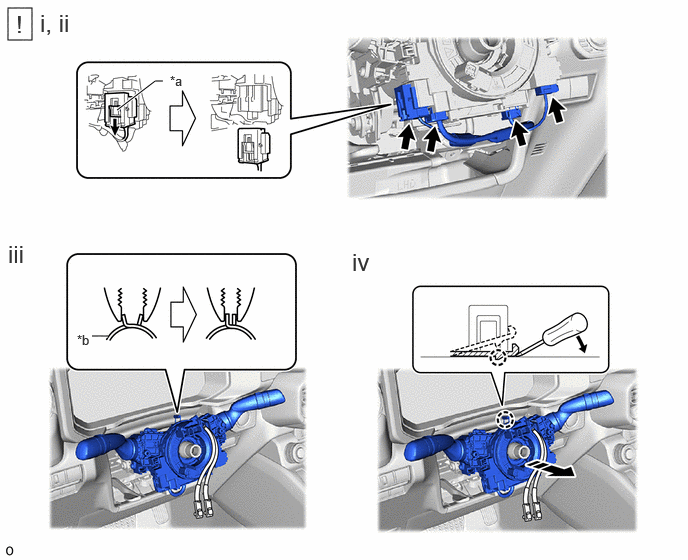

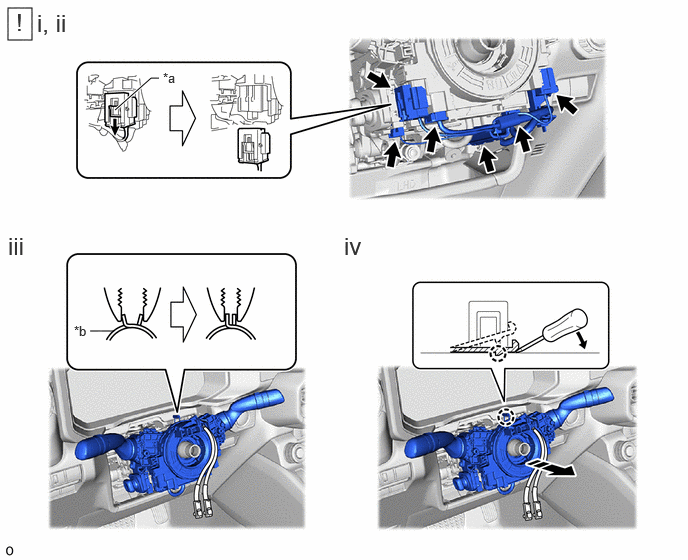

*a Slider *b Clamp Remove in this Direction - - - Disconnect each connector from the turn signal switch assembly with spiral cable sub-assembly.
- Slide the slider to release the lock, and then disconnect the yellow airbag connector from the spiral cable with sensor sub-assembly.
HINT:
Refer to How to Connect or Disconnect Airbag Connector:
Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [02/2024 - ]
- Using pliers, support the band clamp while loosened.
- Detach the claw to remove the turn signal switch assembly with spiral cable sub-assembly from the steering column assembly.
- for Power Tilt and Power Telescopic Steering Column:
*a Slider *b Clamp Remove in this Direction - - - Disconnect each connector from the turn signal switch assembly with spiral cable sub-assembly.
- Slide the slider to release the lock, and then disconnect the yellow airbag connector from the spiral cable with sensor sub-assembly.
HINT:
Refer to How to Connect or Disconnect Airbag Connector:
Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [02/2024 - ]
- Using pliers, support the band clamp while loosened.
- Detach the claw to remove the turn signal switch assembly with spiral cable sub-assembly from the steering column assembly.
- REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to REMOVAL [02/2024 - ]

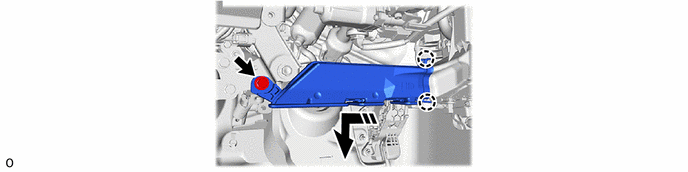

- REMOVE NO. 2 AIR DUCT SUB-ASSEMBLY
- REMOVE FRONT WHEEL LH
Refer to REMOVAL [02/2024 - ]
- DISCONNECT NO. 2 STEERING INTERMEDIATE SHAFT SUB-ASSEMBLY
Refer to PROCEDURE - Step 4 - REMOVE STEERING INTERMEDIATE SHAFT ASSEMBLY

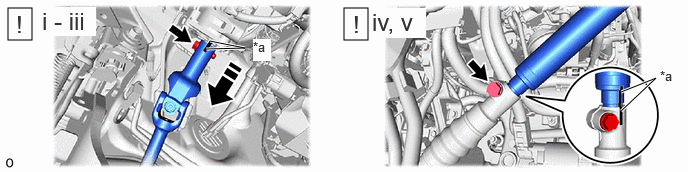

*a Matchmark - - Slide in this Direction - - - Remove the bolt and slide the steering intermediate shaft assembly.NOTE:
Do not remove the steering intermediate shaft assembly from the steering intermediate shaft.
- Put matchmarks on the steering intermediate shaft assembly and steering column assembly.
- Remove the steering intermediate shaft assembly from the steering column assembly.
- Put matchmarks on the steering intermediate shaft assembly and No. 2 steering intermediate shaft sub-assembly.
HINT:
Perform this procedure only when replacement of the steering intermediate shaft assembly and No. 2 steering intermediate shaft sub-assembly is necessary.
- Remove the steering intermediate shaft assembly from the No. 2 steering intermediate shaft sub-assembly.
HINT:
Perform this procedure only when replacement of the steering intermediate shaft assembly andNo. 2 steering intermediate shaft sub-assembly is necessary.
- Remove the bolt and slide the steering intermediate shaft assembly.

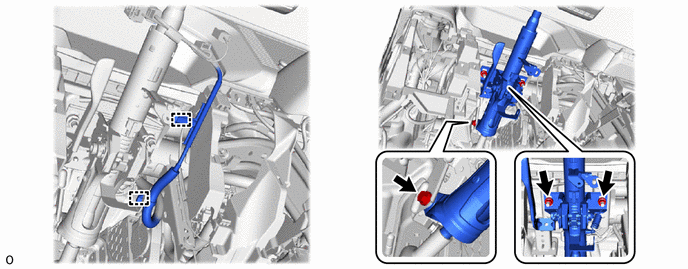

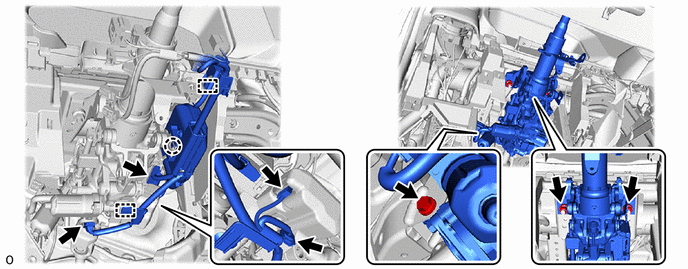

- REMOVE STEERING COLUMN ASSEMBLY
HINT:
As the illustration shown is an example, the actual details may differ.
