Removal [02/2024 - ]: Procedure

  1. REMOVE REAR BUMPER LOWER COVER
    1. for Type A, w/ Hook:

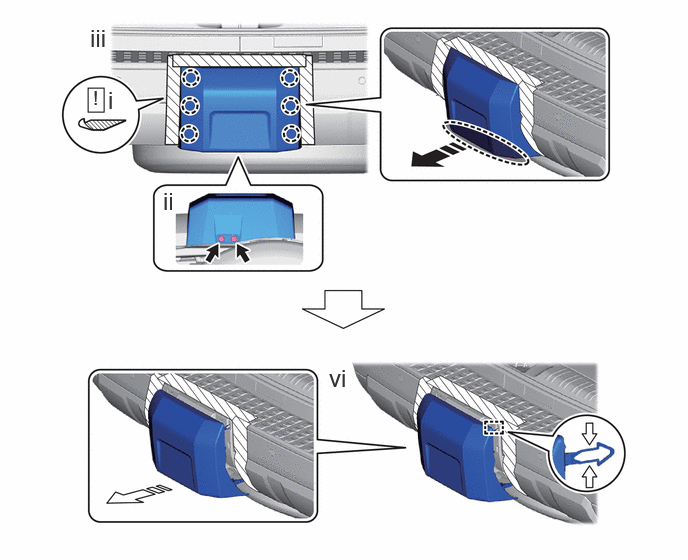

      GTY1255282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction (1)
      Remove in this Direction (2) Clip
      Push in this Direction - -
      1. Put protective tape around the rear bumper lower cover.
      2. Remove the 2 clips.
      3. Place your hand at the positions shown in the illustration and detach the claw as shown in the illustration.
      4. Detach the hook and remove the rear bumper lower cover as shown in the illustration.
    2. for Type A, w/o Hook:

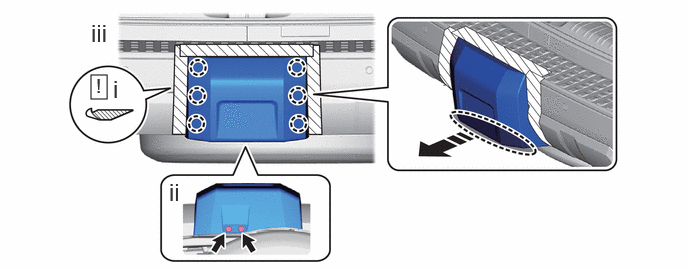

      GTY1255228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
      1. Put protective tape around the rear bumper lower cover.
      2. Remove the 2 clips.
      3. Place your hand at the positions shown in the illustration and detach the claw and remove the rear bumper lower cover as shown in the illustration.
    3. for Type B, w/ Hook:

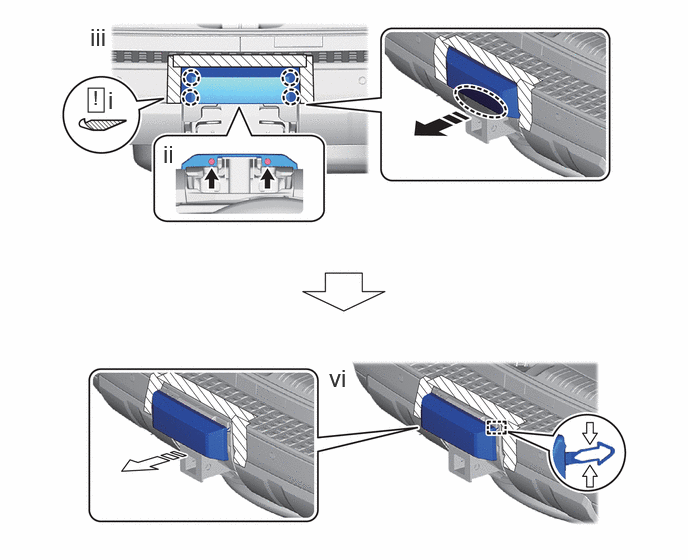

      GTY1255154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction (1)
      Remove in this Direction (2) Clip
      Push in this Direction - -
      1. Put protective tape around the rear bumper lower cover.
      2. Remove the 2 clips.
      3. Place your hand at the positions shown in the illustration and detach the claw as shown in the illustration.
      4. Detach the hook and remove the rear bumper lower cover as shown in the illustration.
    4. for Type B, w/o Hook:

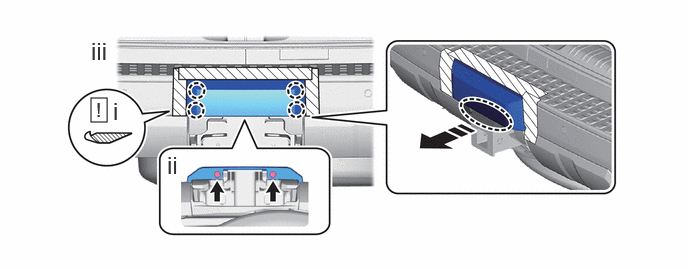

      GTY1255524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
      1. Put protective tape around the rear bumper lower cover.
      2. Remove the 2 clips.
      3. Place your hand at the positions shown in the illustration and detach the claw and remove the rear bumper lower cover as shown in the illustration.
  2. REMOVE REAR NO. 2 STEP COVER

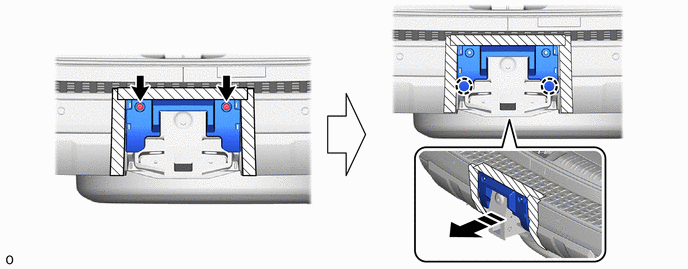

    1. GTY1219820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  3. REMOVE REAR BUMPER STEP

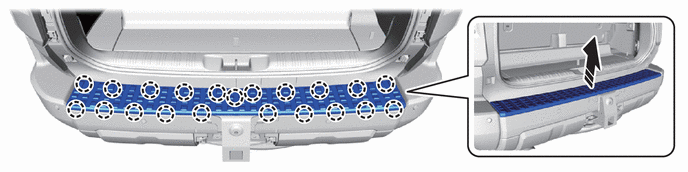

    1. GTY1226333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  4. REMOVE REAR COMBINATION LIGHT COVER LH
    Refer to PROCEDURE - Step 1
  5. REMOVE REAR COMBINATION LIGHT COVER RH
    1. Use the same procedure described for the LH side.
  6. REMOVE REAR BUMPER CORNER EXTENSION LH

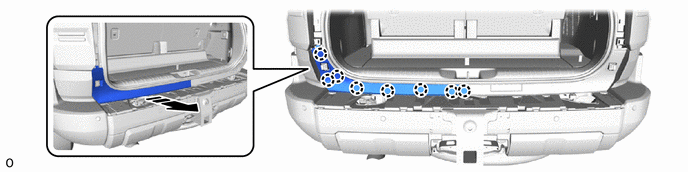

    1. GTY1221987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  7. REMOVE REAR BUMPER CORNER EXTENSION RH

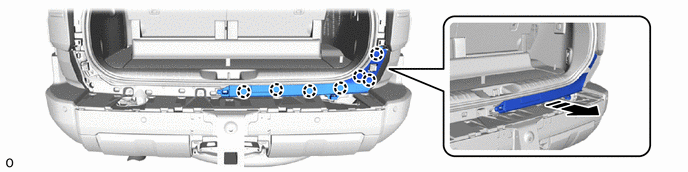

    1. GTY1222995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  8. REMOVE REAR BUMPER FILLER LH

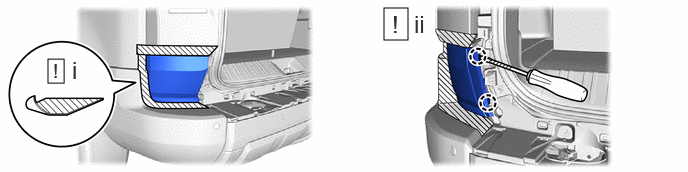

    1. GTY1222092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Put protective tape around the rear bumper filler LH.
      2. Insert a screwdriver with its tip wrapped with protective tape into the gap and detach the claw.

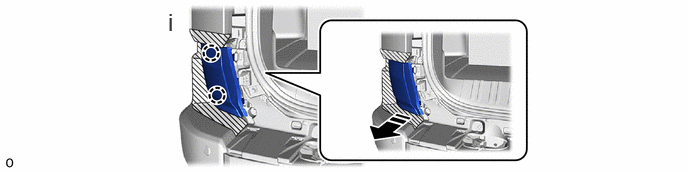

    2. GTY1221743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Detach the claw and remove the rear bumper filler LH as shown in the illustration.
  9. REMOVE REAR BUMPER FILLER RH
    1. Use the same procedure described for the LH side.
  10. REMOVE QUARTER OUTSIDE MOULDING SUB-ASSEMBLY LH

    Remove the quarter outside moulding sub-assembly LH enough that the rear bumper assembly can be removed.

    Refer to REMOVAL [02/2024 - ]

  11. REMOVE QUARTER OUTSIDE MOULDING SUB-ASSEMBLY RH
    1. Use the same procedure described for the LH side.
  12. REMOVE REAR BUMPER ASSEMBLY

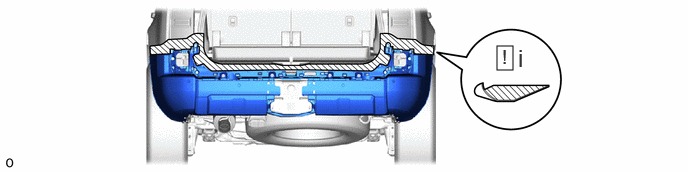

    1. GTY1224097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Put protective tape around the rear bumper assembly.

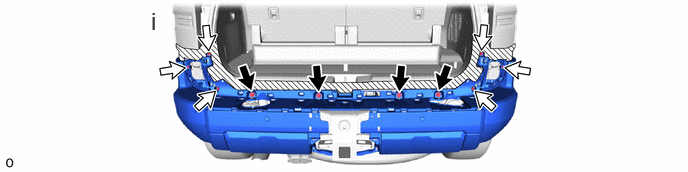

    2. GTY1220903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt (A) Screw
      1. Remove the 4 bolts (A) and 6 screws.

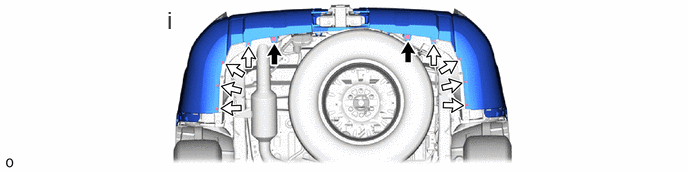

    3. GTY1221121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt (B) Screw
      1. Remove the 2 bolts (B) and 8 screws.

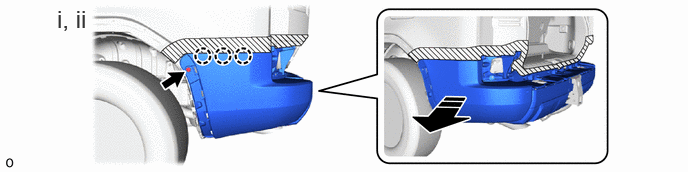

    4. GTY1224998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Remove the clip.
      2. Detach the claw as shown in the illustration.
    5. Use the same procedure for the other side.

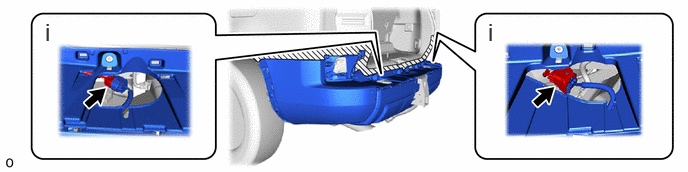

    6. GTY1220588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the 2 connectors and remove the rear bumper assembly.
