Removal [02/2024 - ]: Procedure

  1. REMOVE REAR COMBINATION LIGHT COVER LH

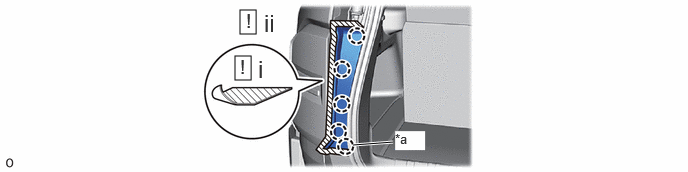

    1. GTY1254997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Claw A - -
      1. Apply the protective tape around the rear combination light cover LH.
      2. Detach the claw and remove the rear combination light cover LH.

        HINT:

        There may be no Claw A for *a in the illustration.

  2. REMOVE REAR COMBINATION LIGHT LENS AND BODY LH

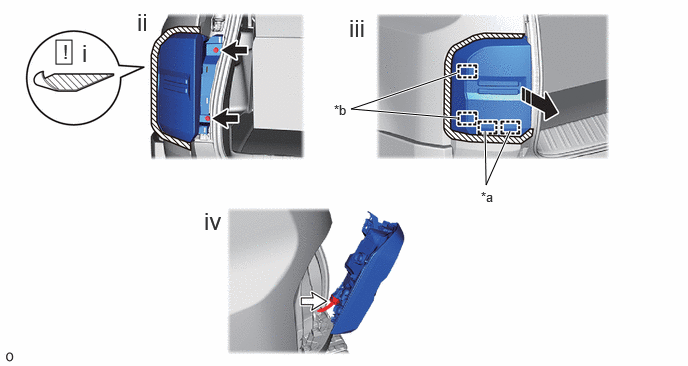

    1. GTY1222961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Guide *b Pin
      Remove in this Direction Screw
      Connector - -
      1. Apply the protective tape around the rear combination light lens and body LH.
      2. Remove the 2 screws.
      3. Slide the rear combination light lens and body LH in the removal direction and detach the guide and pin.
      4. Disconnect the connector and remove the rear combination light lens and body LH.
