Removal [02/2024 - ]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 7

  2. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 9

  3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER

    Refer to PROCEDURE - Step 11

  4. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 13

  5. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER

    Refer to PROCEDURE - Step 16

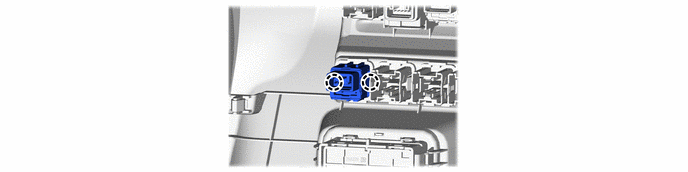

  6. REMOVE FUEL LID OPENER SWITCH
    1. GTY1221255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
