Adjustment [02/2024 - ]: Procedure

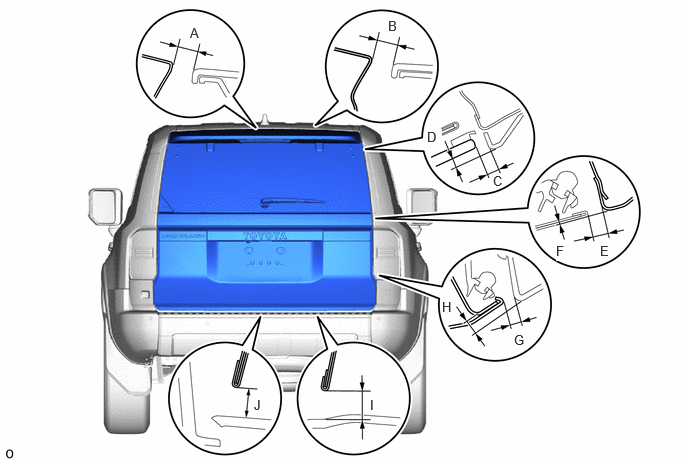

1. Check that the clearance measurements of areas A to L are within the standard ranges.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   STANDARD CLEARANCE:



   Area	Measurement	Area	Measurement
   A	9.05 to 14.05 mm (0.356 to 0.553 in.)	B	8.95 to 13.95 mm (0.352 to 0.549 in.)
   C	3.1 to 9.1 mm (0.122 to 0.358 in.)	D	1.9 to 7.9 mm (0.0748 to 0.311 in.)
   E	4.4 to 7.4 mm (0.173 to 0.291 in.)	F	-1.2 to 1.8 mm (-0.0472 to 0.0709 in.)
   G	3.75 to 7.75 mm (0.148 to 0.305 in.)	H	1.75 to 5.75 mm (0.0689 to 0.2264 in.)
   I	7.85 to 11.85 mm (0.309 to 0.467 in.)	J	8.25 to 12.25 mm (0.325 to 0.482 in.)

Refer to PROCEDURE - Step 15

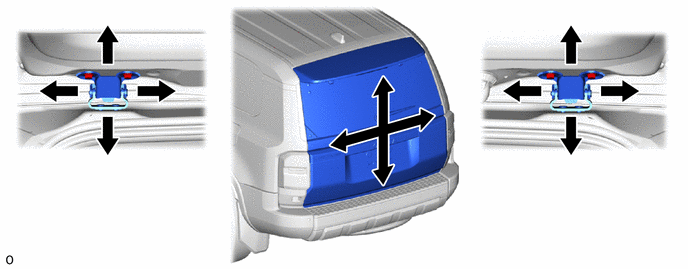

1. Loosen the 4 hinge bolts on the back door and adjust the back door position.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Tighten the 4 hinge bolts on the vehicle body after adjustment.

   Torque: 19.5 N.m (199 kgf/cm, 14 ft.lbf)

3. Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Using a brass bar and a hammer, hit the striker to adjust its position.
5. Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustment.

   Torque: 35 N.m (357 kgf/cm, 26 ft.lbf)
