Adjustment [02/2024 - ]: Procedure

See step  1

Refer to PROCEDURE - Step 1

See step  7

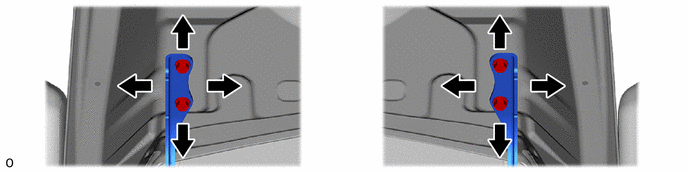

1. Horizontally and vertically adjust the hood.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Loosen the 4 hinge bolts of the hood sub-assembly.
   2. Adjust the clearance between the hood and front fenders by moving the hood sub-assembly.
   3. Tighten the 4 hinge bolts after adjustment.

      Torque: 13 N.m (133 kgf/cm, 10 ft.lbf)

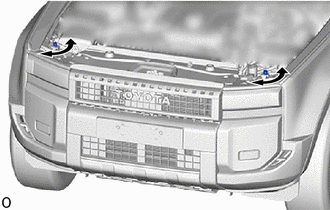

2. Adjust the height of the front end of the hood using the cushions.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Adjust the 2 cushions so that the heights of the hood and fenders are aligned.

      HINT:

      Raise or lower the front end of the hood by turning the 2 cushions.

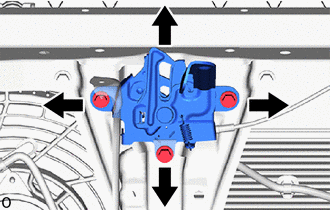

3. Adjust the hood lock.
   1. Loosen the 3 bolts.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   2. Adjust the hood lock assembly and tighten the 3 bolts.

      Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

   3. Check that the striker can engage the hood lock assembly smoothly.
