Removal [02/2024 - ]: Procedure

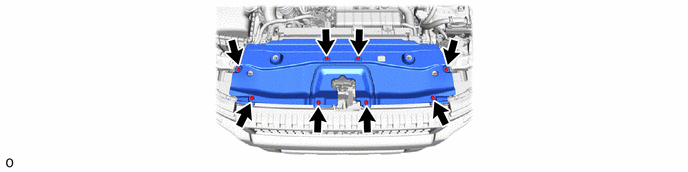

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Screw

   Clip

1. Use the same procedure described for the LH side.

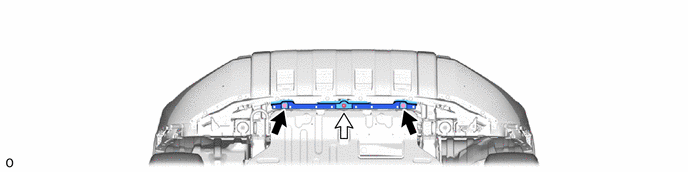

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Bolt

   Clip

Remove the front fender moulding sub-assembly LH enough that the front bumper assembly can be removed.

Refer to REMOVAL [02/2024 - ]

1. Use the same procedure described for the LH side.

HINT:

The illustration is an example, so the details may differ.

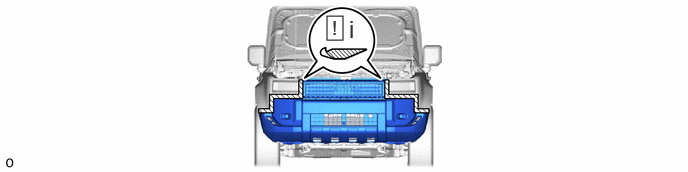

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Put protective tape around the front bumper assembly.

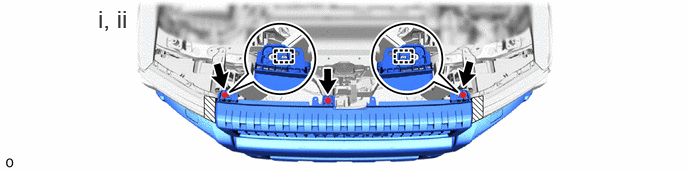

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

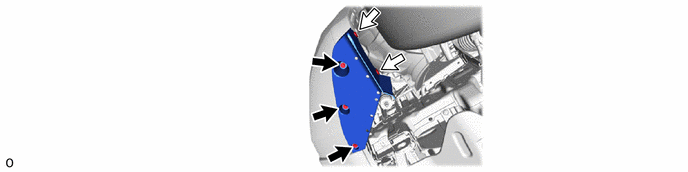

   1. Remove the 3 bolts.
   2. Detach the guide.

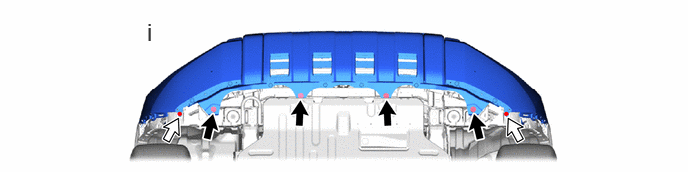

3. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Bolt

   Screw

   1. Remove the 4 bolts and 2 screws.

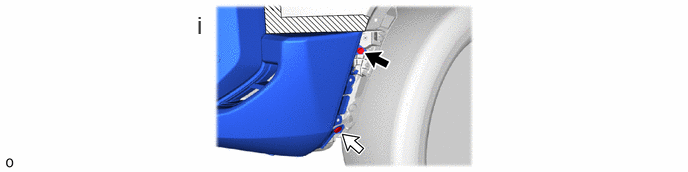

4. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Screw

   Clip

   1. Remove the screw and clip.
5. Use the same procedure for the other side.

6. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

   -

   -

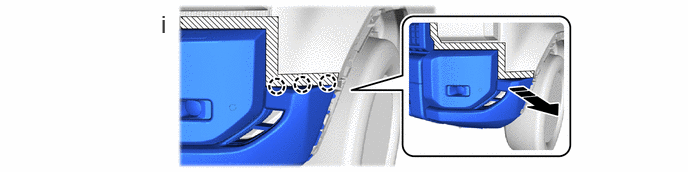

   1. Detach the claw as shown in the illustration.
7. Use the same procedure for the other side.

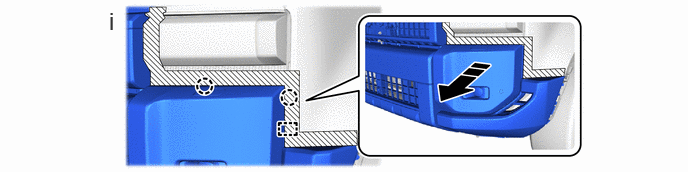

8. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

   -

   -

   1. Detach the claw and guide as shown in the illustration.
9. Use the same procedure for the other side.

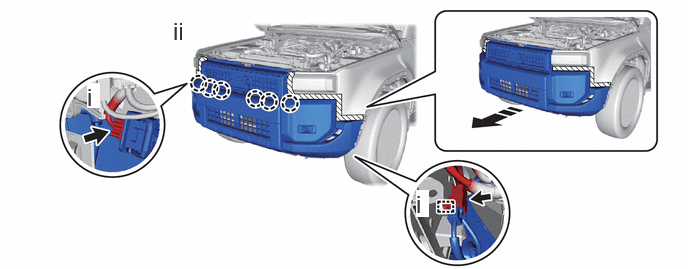

10. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Remove in this Direction

    -

    -

    1. Detach the clamp and disconnect the 2 connectors.
    2. Detach the claw and remove the front bumper assembly as shown in the illustration.
