Removal [02/2024 - ]: Procedure

  1. REMOVE REAR WIPER MOTOR ASSEMBLY

    Refer to REMOVAL [02/2024 - ]

  2. REMOVE BACK DOOR NO. 1 SERVICE HOLE COVER (w/ Cover)

    Refer to PROCEDURE - Step 44

  3. REMOVE NO. 1 CAMERA CLEANER NOZZLE ASSEMBLY

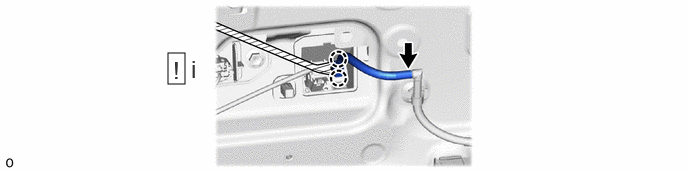

    1. GTY1221380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a clip remover with its tip wrapped with protective tape, detach the claw and remove the No. 1 camera cleaner nozzle assembly.
