Removal [02/2024 - ]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [02/2024 - ]

    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [02/2024 - ]
  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    WARNING:
    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.

    Refer to REMOVAL [02/2024 - ]

  3. REMOVE FRONT DOOR UPPER TRIM COVER LH
    Refer to PROCEDURE - Step 3
  4. REMOVE FRONT DOOR ARMREST COVER SUB-ASSEMBLY LH
    Refer to PROCEDURE - Step 4
  5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 5

  6. REMOVE FRONT DOOR SERVICE HOLE COVER LH
    Refer to PROCEDURE - Step 21
  7. REMOVE SIDE AIRBAG PRESSURE SENSOR LH

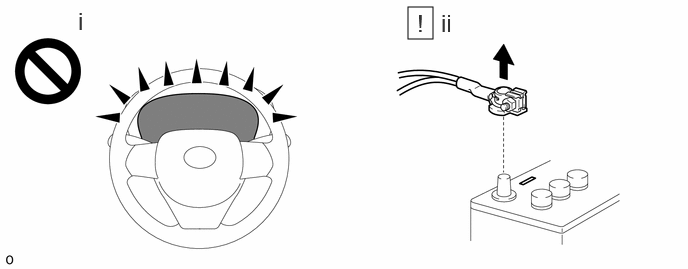

    1. GTY1211069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Check that the ignition switch is off.
      2. Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
        WARNING:
        • Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
        • If the airbag deploys for any reason, it may cause a serious accident.

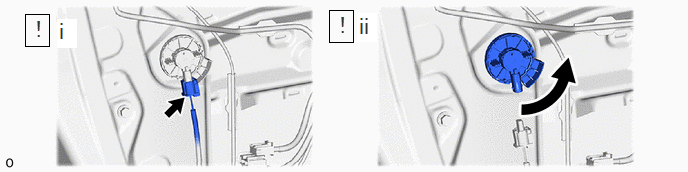

    2. GTY1223443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the airbag connector.

        HINT:

        Refer to How to Connect or Disconnect Airbag Connector:

        Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [02/2024 - ]

      2. Remove the side airbag pressure sensor LH as shown in the illustration.
        NOTE:

        If the side airbag pressure sensor assembly LH has been dropped, replace it with a new one.
