Removal [02/2024 - ]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    Refer to PRECAUTION [02/2024 - ]

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [02/2024 - ]
  2. REMOVE FRONT SEAT ASSEMBLY LH
    1. for Manual Seat:

      Refer to REMOVAL [02/2024 - ]

    2. for Power Seat:

      Refer to REMOVAL [02/2024 - ]

  3. REMOVE FRONT SEAT ASSEMBLY RH
    1. Use the same procedure described for the LH side.
  4. REMOVE FRONT CONSOLE BOX
    1. w/ Cool Box:

      Refer to REMOVAL [02/2024 - ]

    2. w/o Cool Box:

      Refer to REMOVAL [02/2024 - ]

  5. REMOVE REAR NO. 1 SEAT ASSEMBLY LH

    Refer to REMOVAL [02/2024 - ]

  6. REMOVE REAR NO. 1 SEAT ASSEMBLY RH
    1. for Single-Passenger Seat:

      Use the same procedure described for the LH side.

    2. for 2-Passenger Seat:

      Refer to REMOVAL [02/2024 - ]

  7. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    See step  3

  8. REMOVE REAR NO. 2 SEAT ASSEMBLY (w/ Rear No. 2 Seat)

    Refer to REMOVAL [02/2024 - ]

  9. REMOVE ROPE HOOK ASSEMBLY (w/o Rear No. 2 Seat)

    See step  9

  10. REMOVE DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)

    See step  10

  11. REMOVE DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)

    See step  11

  12. REMOVE REAR DECK FLOOR BOX (w/o Rear No. 2 Seat)
    See step  12
  13. REMOVE REAR FLOOR BOARD REAR LH (w/o Rear No. 2 Seat)

    See step  13

  14. REMOVE REAR FLOOR BOARD REAR RH (w/o Rear No. 2 Seat)

    See step  14

  15. REMOVE REAR FLOOR REAR MAT SUPPORT PLATE (w/o Rear No. 2 Seat)

    See step  15

  16. REMOVE DECK SIDE TRIM BOX RH (w/o Rear No. 2 Seat)

    See step  16

  17. REMOVE REAR DECK FLOOR BOX (w/o Rear No. 2 Seat)

    See step  17

  18. REMOVE REAR NO. 1 FLOOR BOARD ASSEMBLY (w/o Rear No. 2 Seat)

    See step  18

  19. REMOVE FRONT DOOR SCUFF PLATE LH

    See step  7

  20. REMOVE FRONT DOOR SCUFF PLATE RH
    1. Use the same procedure described for the LH side.
  21. REMOVE COWL SIDE TRIM BOARD LH

    See step  9

  22. REMOVE COWL SIDE TRIM BOARD RH
    1. Use the same procedure described for the LH side.
  23. REMOVE REAR DOOR SCUFF PLATE LH

    See step  29

  24. REMOVE REAR DOOR SCUFF PLATE RH
    1. Use the same procedure described for the LH side.
  25. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    • Remove a part of the front door opening trim weatherstrip LH so that the center pillar lower garnish LH can be removed.

      Refer to PROCEDURE - Step 3
  26. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
    1. Use the same procedure described for the LH side.
  27. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
    • Remove a part of the rear door opening trim weatherstrip LH so that the center pillar lower garnish LH and can be removed.

      Refer to PROCEDURE - Step 2
  28. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
    1. Use the same procedure described for the LH side.
  29. REMOVE OUTER LAP BELT ANCHOR COVER

    Refer to PROCEDURE - Step 8

  30. REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH (LAP BELT ANCHOR)

    Refer to PROCEDURE - Step 9

  31. REMOVE FRONT SEAT OUTER BELT ASSEMBLY RH (LAP BELT ANCHOR)
    1. Use the same procedure described for the LH side.
  32. REMOVE CENTER PILLAR LOWER GARNISH LH

    See step  40

  33. REMOVE CENTER PILLAR LOWER GARNISH RH
    1. Use the same procedure described for the LH side.
  34. REMOVE OUTER LAP BELT ANCHOR COVER

    Refer to PROCEDURE - Step 16

  35. REMOVE REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH (LAP BELT ANCHOR)

    Refer to PROCEDURE - Step 17

  36. REMOVE REAR NO. 1 SEAT OUTER BELT ASSEMBLY RH (LAP BELT ANCHOR)
    1. Use the same procedure described for the LH side.
  37. REMOVE REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH (LAP BELT ANCHOR) (w/ Rear No. 2 Seat)

    Refer to PROCEDURE - Step 18

  38. REMOVE REAR NO. 2 SEAT OUTER BELT ASSEMBLY RH (LAP BELT ANCHOR) (w/ Rear No. 2 Seat)
    1. Use the same procedure described for the LH side.
  39. REMOVE NO. 1 TONNEAU COVER HOLDER CAP

    See step  49

  40. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    See step  50

  41. REMOVE NO. 2 CUP HOLDER
    See step  51
  42. REMOVE NO. 1 CUP HOLDER
    1. Use the same procedure described for the No. 2 cup holder.
  43. REMOVE BATTERY SERVICE HOLE COVER ASSEMBLY LH

    See step  53

  44. REMOVE BATTERY SERVICE HOLE COVER ASSEMBLY RH
    1. Use the same procedure described for the LH side.
  45. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    See step  55

  46. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

    See step  56

  47. REMOVE REAR NO. 1 SEAT PROTECTOR

    Refer to PROCEDURE - Step 30

  48. REMOVE REAR NO. 2 SEAT PROTECTOR

    Refer to PROCEDURE - Step 31

  49. REMOVE REAR NO. 3 SEAT PROTECTOR

    Refer to PROCEDURE - Step 32

  50. REMOVE REAR NO. 1 SEAT PROTECTOR

    Refer to PROCEDURE - Step 33

  51. REMOVE FRONT FLOOR CARPET ASSEMBLY

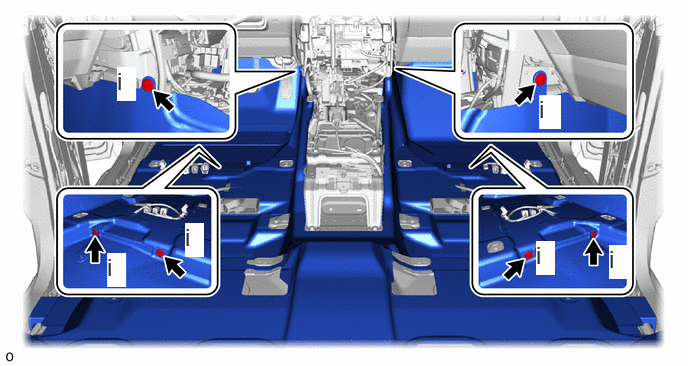

    1. GTY1214917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 6 clips.

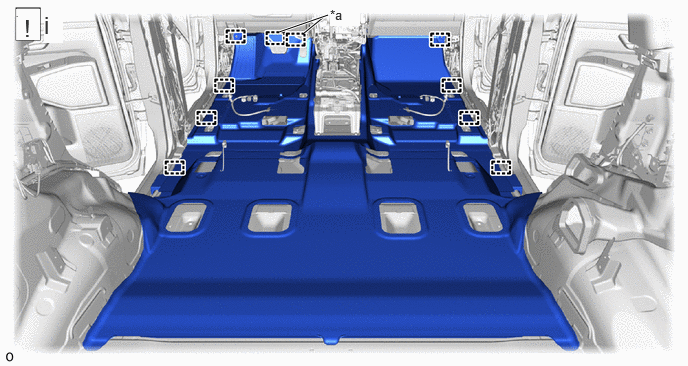

    2. GTY1216121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Fastener - -
      1. Detach the fasteners and guides to remove the front floor carpet assembly.
        NOTE:

        Do not pull the slit part of the front floor carpet assembly strongly because there is a risk of damage.
