Removal [02/2024 - ]: Procedure

  1. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    Refer to PROCEDURE - Step 3

  2. REMOVE REAR NO. 2 SEAT ASSEMBLY (w/ Rear No. 2 Seat)

    Refer to REMOVAL [02/2024 - ]

  3. REMOVE ROPE HOOK ASSEMBLY

    Refer to PROCEDURE - Step 9

  4. REMOVE DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 10

  5. REMOVE DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 11

  6. REMOVE REAR DECK FLOOR BOX (w/o Rear No. 2 Seat)
    Refer to PROCEDURE - Step 12
  7. REMOVE REAR FLOOR BOARD REAR LH (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 13

  8. REMOVE REAR FLOOR BOARD REAR RH (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 14

  9. REMOVE REAR FLOOR MAT REAR SUPPORT PLATE (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 15

  10. REMOVE DECK SIDE TRIM BOX RH (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 16

  11. REMOVE REAR DECK FLOOR BOX (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 17

  12. REMOVE REAR NO. 1 FLOOR BOARD ASSEMBLY (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 18

  13. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 29

  14. REMOVE REAR DOOR SCUFF PLATE RH
    1. Use the same procedure described for the LH side.
  15. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
    HINT:
    Remove a part of the rear door opening trim weatherstrip LH so that the deck trim side panel assembly LH can be removed.

    Refer to PROCEDURE - Step 2

  16. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
    1. Use the same procedure described for the LH side.
  17. REMOVE OUTER LAP BELT ANCHOR COVER

    Refer to PROCEDURE - Step 16

  18. REMOVE REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH (LAP BELT ANCHOR)

    Refer to PROCEDURE - Step 17

  19. REMOVE REAR NO. 1 SEAT OUTER BELT ASSEMBLY RH (LAP BELT ANCHOR)
    1. Use the same procedure described for the LH side.
  20. REMOVE REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH (LAP BELT ANCHOR) (w/ Rear No. 2 Seat)

    Refer to PROCEDURE - Step 18

  21. REMOVE REAR NO. 2 SEAT OUTER BELT ASSEMBLY RH (LAP BELT ANCHOR) (w/ Rear No. 2 Seat)
    1. Use the same procedure described for the LH side.
  22. REMOVE NO. 1 TONNEAU COVER HOLDER CAP

    Refer to PROCEDURE - Step 49

  23. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Refer to PROCEDURE - Step 50

  24. REMOVE NO. 2 CUP HOLDER
    Refer to PROCEDURE - Step 51
  25. REMOVE NO. 1 CUP HOLDER
    1. Use the same procedure described for the No. 2 cup holder.
  26. REMOVE BATTERY SERVICE HOLE COVER ASSEMBLY LH

    Refer to PROCEDURE - Step 53

  27. REMOVE BATTERY SERVICE HOLE COVER ASSEMBLY RH
    1. Use the same procedure described for the LH side.
  28. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Refer to PROCEDURE - Step 55

  29. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

    Refer to PROCEDURE - Step 56

  30. REMOVE REAR NO. 1 SEAT PROTECTOR

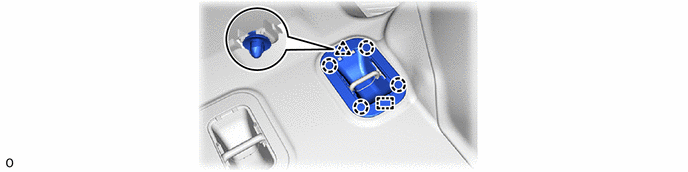

    1. GTY1212504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE REAR NO. 2 SEAT PROTECTOR

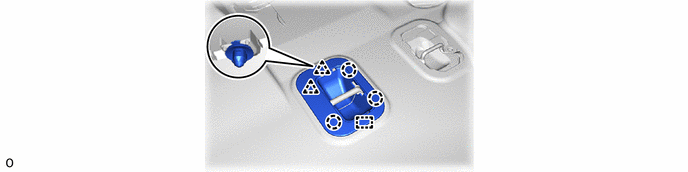

    1. GTY1212505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE REAR NO. 3 SEAT PROTECTOR

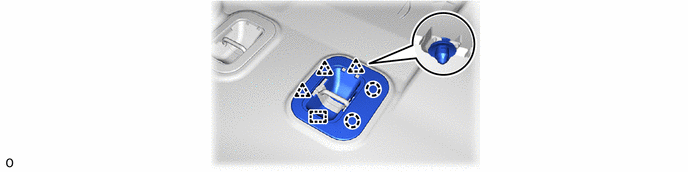

    1. GTY1212506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE REAR NO. 1 SEAT PROTECTOR

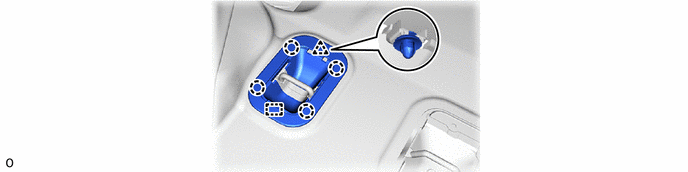

    1. GTY1212497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE FRONT FLOOR CARPET ASSEMBLY
    HINT:
    Remove a part of the front floor carpet assembly so that the seat lock striker can be removed.

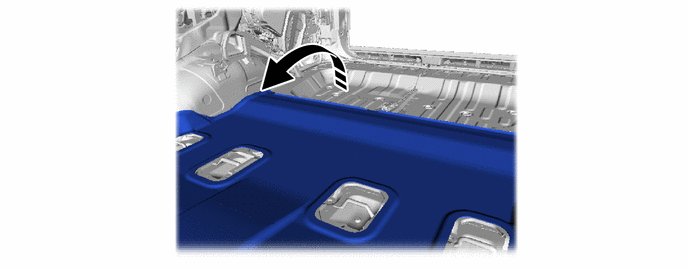

    1. GTY1210897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Turn in this Direction - -

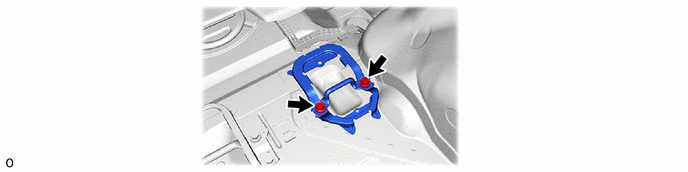

  35. REMOVE REAR NO. 1 SEAT CUSHION LOCK STRIKER SUB-ASSEMBLY
    1. GTY1212498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE REAR NO. 2 SEAT CUSHION LOCK STRIKER SUB-ASSEMBLY

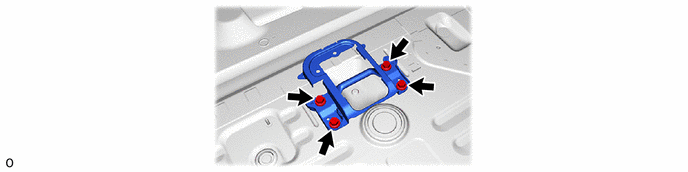

    1. GTY1212500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE REAR NO. 3 SEAT CUSHION LOCK STRIKER SUB-ASSEMBLY

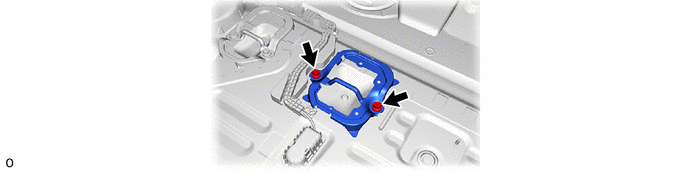

    1. GTY1212495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE REAR NO. 1 SEAT CUSHION LOCK STRIKER SUB-ASSEMBLY

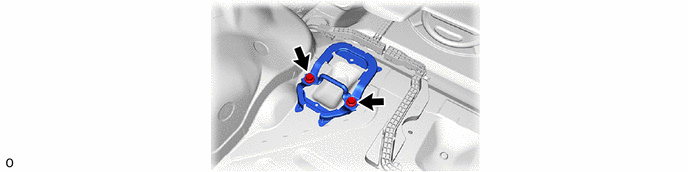

    1. GTY1212496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
