Removal [09/2024 - ]: Procedure

  1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 9

  2. REMOVE REAR ENGINE UNDER COVER LH

    Refer to PROCEDURE - Step 10

  3. DRAIN ENGINE COOLANT (for Fully Sealed Type)

    Refer to PROCEDURE - Step 1

  4. DRAIN ENGINE COOLANT (for Non-Fully Sealed Type)

    Refer to PROCEDURE - Step 2

  5. DRAIN CONTINUOUSLY VARIABLE TRANSAXLE FLUID

    See step  3

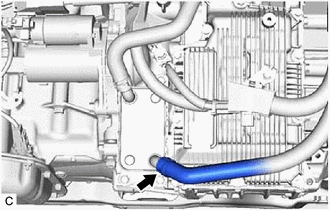

  6. DISCONNECT NO. 2 WATER BY-PASS HOSE
    1. Slide the clip and disconnect the No. 2 water by-pass hose from the transmission oil cooler.
      GTY1115016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

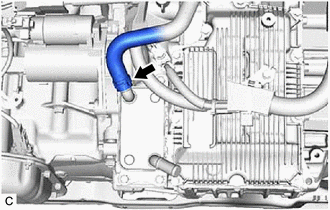

  7. DISCONNECT INLET WATER HOSE
    1. Slide the clip and disconnect the inlet water hose from the transmission oil cooler.
      GTY1118859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

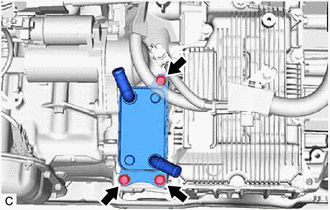

  8. REMOVE TRANSMISSION OIL COOLER
    1. Remove the 3 bolts and transmission oil cooler from the transaxle housing.
      GTY1115010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 O-rings from the transaxle housing.
      GTY787392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
