Removal [09/2022 - 11/2022]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 7

  2. DRAIN ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 1

  3. REMOVE WINDSHIELD WIPER MOTOR AND LINK

    Refer to REMOVAL [09/2022 - 11/2022]

  4. REMOVE NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL

    Refer to PROCEDURE - Step 3

  5. REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  6. DISCONNECT FLOOR SHIFT TRANSMISSION CONTROL SELECT CABLE

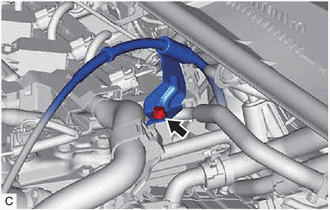

    1. Remove the bolt to disconnect the floor shift transmission control select cable from the cylinder head cover sub-assembly.
      GTY1106089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. DISCONNECT NO. 2 VENTILATION HOSE

    Refer to PROCEDURE - Step 5

  8. REMOVE IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 1

  9. REMOVE CAMSHAFT POSITION SENSOR

    Refer to PROCEDURE - Step 1

  10. DISCONNECT ENGINE WIRE
    1. Disconnect the 3 connectors.

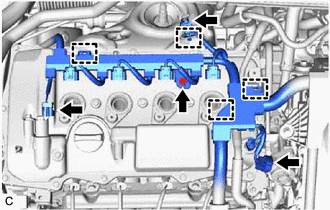

      GTY868383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 clamps.
    3. Remove the bolt and disconnect the engine wire from the cylinder head cover sub-assembly.
  11. DISCONNECT FUEL VAPOR FEED HOSE

    Refer to PROCEDURE - Step 28

  12. REMOVE EGR PIPE ASSEMBLY

    Refer to PROCEDURE - Step 8

  13. DISCONNECT NO. 8 WATER BY-PASS HOSE

    Refer to PROCEDURE - Step 3

  14. DISCONNECT NO. 9 WATER BY-PASS HOSE

    Refer to PROCEDURE - Step 4

  15. REMOVE PURGE VALVE (PURGE VSV)

    Refer to PROCEDURE - Step 5

  16. REMOVE FUEL VAPOR FEED PIPE

    Refer to PROCEDURE - Step 13

  17. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  18. REMOVE CYLINDER HEAD COVER GASKET

    Refer to PROCEDURE - Step 7

  19. REMOVE SPARK PLUG TUBE GASKET

    Refer to PROCEDURE - Step 8

  20. SET NO. 1 CYLINDER TO TDC (COMPRESSION)
    1. Set the No. 1 cylinder to TDC (Compression).

      Refer to PROCEDURE - Step 9

    2. Place paint marks on the chain sub-assembly in alignment with the timing marks on the camshaft timing gear assembly and camshaft timing sprocket.

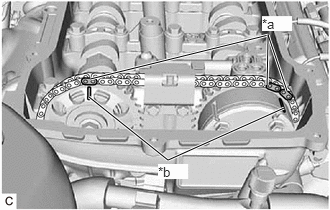

      GTY540965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Paint Mark
      *b Timing Mark
  21. REMOVE NO. 2 CHAIN VIBRATION DAMPER

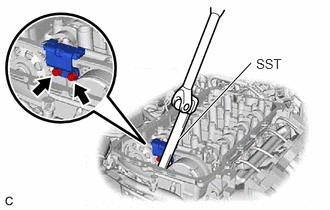

    1. Using SST, remove the 2 bolts and No. 2 chain vibration damper from the No. 1 camshaft bearing cap.
      • SST: 09961-00950
      GTY582974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE NO. 1 CHAIN TENSIONER ASSEMBLY

    Refer to PROCEDURE - Step 11

  23. REMOVE CAMSHAFT TIMING SPROCKET

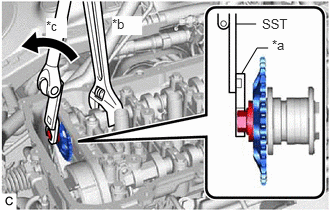

    1. While holding the hexagonal portion of the No. 2 camshaft with a wrench, remove the bolt with SST and 14 mm union nut wrench.
      • SST: 09961-00950
      GTY841517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 14 mm Union Nut Wrench
      *b Hold
      *c Turn
    2. While removing the chain sub-assembly, pull out the camshaft timing sprocket horizontally and then upward.

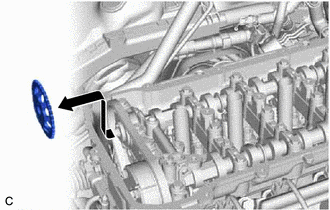

      GTY868381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSPECT CAMSHAFT TIMING GEAR ASSEMBLY

    Refer to PROCEDURE - Step 30

  25. REMOVE CAMSHAFT BEARING CAP

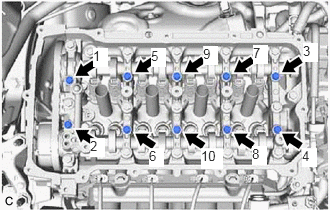

    1. Uniformly loosen and remove the 10 bolts in the order shown in the illustration.
      NOTE:

      Do not loosen the other 10 bearing cap bolts in this step.

      HINT:

      Arrange the removed parts in such a way that they can be reinstalled to their original locations.

      GTY878525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

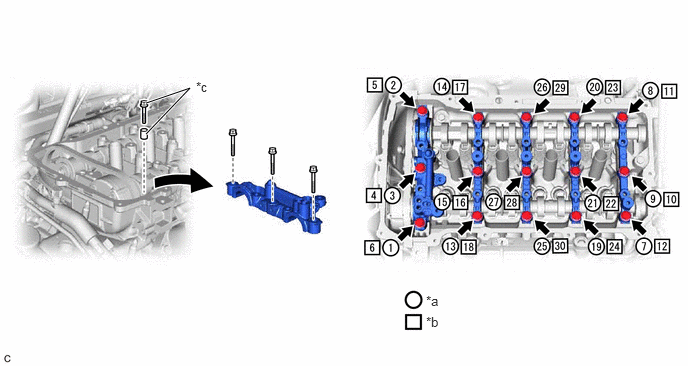

    2. Remove the bolts and camshaft bearing caps in the order shown in the illustration. Immediately after removing each camshaft bearing cap, install service bolts and spacers in the order shown in the illustration.
      GTY876906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a The removal order of the parts *b The installation order of the service bolts and spacers for temporarily tightening the camshaft housing sub-assembly
      *c Service bolt and spacer (Used to temporarily secure the camshaft housing sub-assembly) - -

      Torque: 27 N.m (275 kgf/cm, 20 ft.lbf)

      NOTE:
      • If the bolts are loosened all at once, seal packing on the camshaft housing sub-assembly and cylinder head sub-assembly may separate, resulting in oil leaks. Therefore, be sure to install the service bolts and spacers to one camshaft bearing cap at a time.
      • Do not install the camshaft bearing caps when installing the service bolts and spacers.

      HINT:

      • Arrange the removed parts in such a way that they can be reinstalled to their original locations.
      • Part number for the service bolt used to temporarily secure the camshaft housing sub-assembly: 91551-G0875 (15 bolts)
      • Part number for the spacer used to temporarily secure the camshaft housing sub-assembly: 90387-12048 (15 spacers)
  26. REMOVE NO. 2 CAMSHAFT

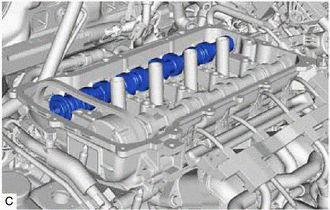

    1. Remove the No. 2 camshaft from the camshaft housing sub-assembly.
      GTY868314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE CAMSHAFT

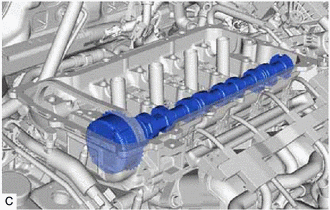

    1. Hold up the chain sub-assembly and remove the camshaft from the camshaft housing sub-assembly.
      GTY868311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

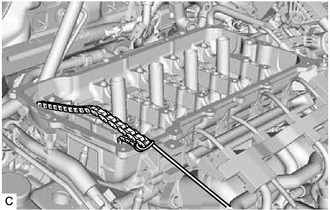

    2. Suspend the chain sub-assembly with a string or equivalent.
      GTY868312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE CAMSHAFT TIMING GEAR ASSEMBLY
    1. Secure the hexagonal portion of the camshaft in a soft jaw vise.
    2. Remove the bolt and camshaft timing gear assembly.
      NOTE:
      • Before removing the camshaft timing gear assembly, make sure that the lock pin has been released.
      • Do not remove the other 4 bolts.
      • Keep the camshaft timing gear assembly horizontal while removing it from the camshaft.
      • If the camshaft timing gear assembly is to be reused, be sure to install it with the lock pin released.
      GTY554046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Do not remove
  29. REMOVE NO. 1 CAMSHAFT BEARING

    Refer to PROCEDURE - Step 40

  30. REMOVE NO. 2 CAMSHAFT BEARING

    Refer to PROCEDURE - Step 41
