Removal [01/2019 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

DRAIN ENGINE COOLANT (for Engine)
Refer to PROCEDURE - Step 1 [01/2019 - 04/2020] , or refer to PROCEDURE - Step 1 [04/2020 - 09/2022] , or refer to PROCEDURE - Step 1 [09/2022 - ]
REMOVE EGR PIPE ASSEMBLY
Refer to PROCEDURE - Step 8 [01/2019 - 09/2022] , or refer to PROCEDURE - Step 8 [09/2022 - ]

DISCONNECT NO. 8 WATER BY-PASS HOSE

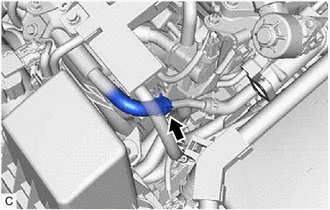

Slide the clip and disconnect the No. 8 water by-pass hose from the No. 3 water by-pass pipe.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DISCONNECT NO. 9 WATER BY-PASS HOSE

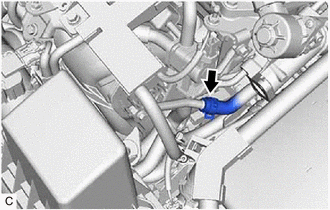

Slide the clip and disconnect the No. 9 water by-pass hose from the No. 3 water by-pass pipe.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE PURGE VALVE (PURGE VSV)

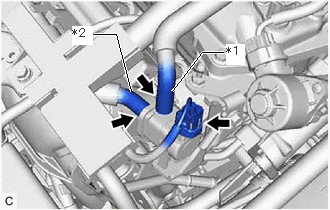

Disconnect the purge valve (purge VSV) connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	No. 1 Fuel Vapor Feed Hose
*2	No. 2 Fuel Vapor Feed Hose

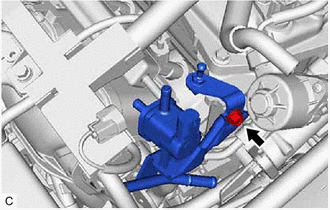

Remove the bolt and purge valve (purge VSV) with No. 3 water by-pass pipe from the camshaft housing sub-assembly.

Remove the screw and purge valve (purge VSV) from the No. 3 water by-pass pipe.
