Removal [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE HEADLIGHT ASSEMBLY LH

    Refer to REMOVAL [09/2022 - ]

  2. REMOVE HEADLIGHT ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  3. REMOVE FRONT BUMPER ENERGY ABSORBER

    Refer to PROCEDURE - Step 28 [11/2022 - 08/2023] , or refer to PROCEDURE - Step 33 [08/2023 - 09/2024] , or refer to PROCEDURE - Step 36 [09/2024 - ]

  4. REMOVE FRONT LOWER BUMPER ABSORBER

    Refer to PROCEDURE - Step 33 [11/2022 - 08/2023] , or refer to PROCEDURE - Step 38 [08/2023 - 09/2024] , or refer to PROCEDURE - Step 41 [09/2024 - ]

  5. REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 30 [11/2022 - 08/2023] , or refer to PROCEDURE - Step 35 [08/2023 - 09/2024] , or refer to PROCEDURE - Step 38 [09/2024 - ]

  6. REMOVE NO. 2 FRONT BUMPER REINFORCEMENT

    Refer to PROCEDURE - Step 34 [11/2022 - 08/2023] , or refer to PROCEDURE - Step 39 [08/2023 - 09/2024] , or refer to PROCEDURE - Step 42 [09/2024 - ]

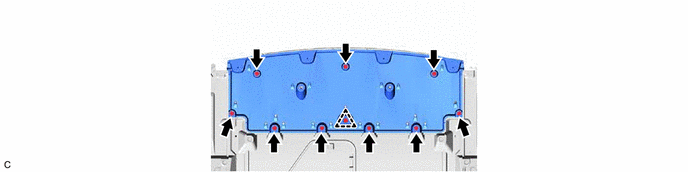

  7. REMOVE CENTER ENGINE UNDER COVER
    1. GTY1180630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the clips, 4 bolts and 9 screws.
  8. REMOVE HOOD LOCK ASSEMBLY

    Refer to PROCEDURE - Step 5 [11/2022 - 09/2024] , or refer to PROCEDURE - Step 5 [09/2024 - ]

  9. REMOVE NO. 3 AIR CLEANER INLET

    Refer to PROCEDURE - Step 4 [09/2022 - 09/2024] , or refer to PROCEDURE - Step 4 [09/2024 - ]

  10. REMOVE INLET NO. 1 AIR CLEANER

    Refer to PROCEDURE - Step 6 [09/2022 - 09/2024] , or refer to PROCEDURE - Step 6 [09/2024 - ]

  11. REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12 [09/2022 - 09/2024] , or refer to PROCEDURE - Step 12 [09/2024 - ]

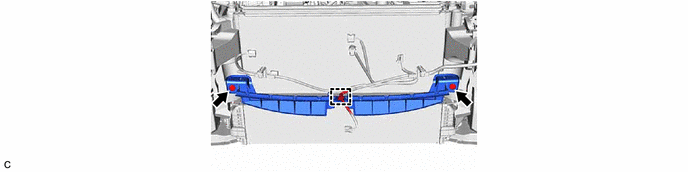

  12. REMOVE INTERCOOLER PLATE
    1. GTY1103485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

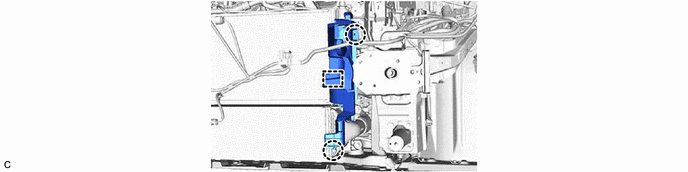

  13. REMOVE NO. 1 RADIATOR AIR GUIDE LH
    1. GTY1108418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

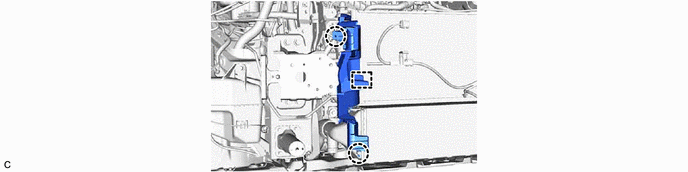

  14. REMOVE NO. 1 RADIATOR AIR GUIDE RH
    1. GTY1103480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

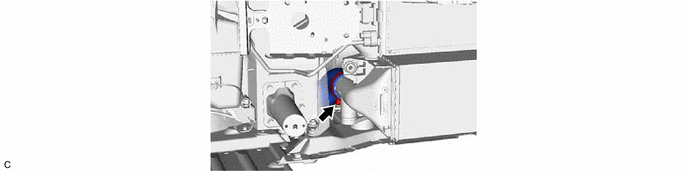

  15. DISCONNECT NO. 3 AIR HOSE
    1. GTY1108424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

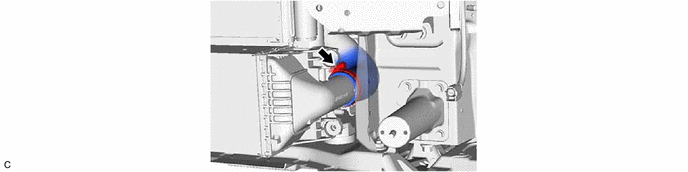

  16. DISCONNECT NO. 4 AIR HOSE
    1. GTY1103507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

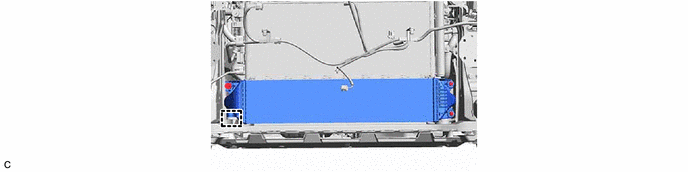

  17. REMOVE INTERCOOLER ASSEMBLY
    1. GTY1103508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
