Removal [01/2019 - 11/2022]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE TAIL EXHAUST PIPE ASSEMBLY
Refer to PROCEDURE - Step 5
REMOVE REAR FLOOR SIDE MEMBER COVER LH (w/ Cover)
Refer to PROCEDURE - Step 2 [01/2019 - 09/2020] , or refer to PROCEDURE - Step 2 [09/2020 - 09/2022] , or refer to PROCEDURE - Step 2 [09/2022 - 11/2022]
REMOVE REAR FLOOR SIDE MEMBER COVER RH (w/ Cover)
Refer to PROCEDURE - Step 3 [01/2019 - 09/2020] , or refer to PROCEDURE - Step 3 [09/2020 - 09/2022] , or refer to PROCEDURE - Step 3 [09/2022 - 11/2022]

SEPARATE REAR STABILIZER BAR SUB-ASSEMBLY

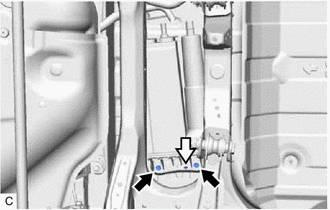

Remove the 4 bolts and separate the rear stabilizer bar sub-assembly from the rear suspension member sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE CANISTER (CHARCOAL CANISTER ASSEMBLY)

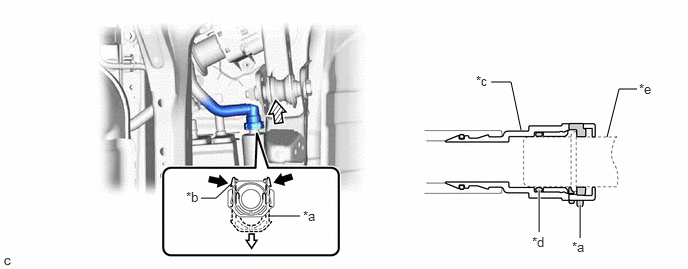

Disconnect the fuel tank vent hose from the canister (charcoal canister assembly).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Retainer	*b	Tab
*c	Tube Connector	*d	O-ring
*e	Pipe (Canister (Charcoal Canister Assembly))	-	-
	Pinch		Pull
	Pull off	-	-

NOTE:

Remove any dirt or foreign matter on the tube connector before performing this work.
Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the tube connector has an O-ring that seals the pipe (canister (charcoal canister assembly)).
Perform this work by hand. Do not use any tools.
Do not forcibly bend, twist or turn the fuel tank vent hose.
Protect the disconnected parts by covering them with plastic bags after disconnecting the fuel tank vent hose.
If the tube connector and pipe (canister (charcoal canister assembly)) are stuck, push and pull to release them.

HINT:

Do not remove the retainer.

Pinch the tabs of the retainer to disengage the lock claws and pull it down.
Pull off the fuel tank vent hose.

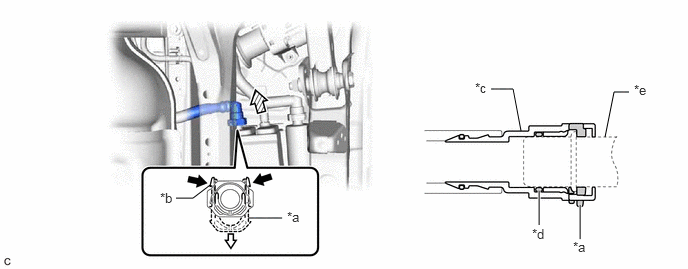

Disconnect the vent line hose from the canister (charcoal canister assembly).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Retainer	*b	Tab
*c	Tube Connector	*d	O-ring
*e	Pipe (Canister (Charcoal Canister Assembly))	-	-
	Pinch		Pull
	Pull off	-	-

NOTE:

Remove any dirt or foreign matter on the tube connector before performing this work.
Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the tube connector has an O-ring that seals the pipe (canister (charcoal canister assembly)).
Perform this work by hand. Do not use any tools.
Do not forcibly bend, twist or turn the vent line hose.
Protect the disconnected parts by covering them with plastic bags after disconnecting the vent line hose.
If the tube connector and pipe (canister (charcoal canister assembly)) are stuck, push and pull to release them.

HINT:

Do not remove the retainer.

Pinch the tabs of the retainer to disengage the lock claws and pull it down.
Pull off the vent line hose.

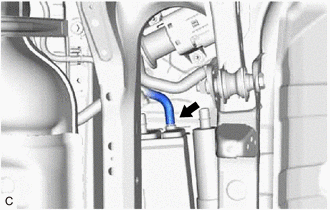

Slide the clip and disconnect the purge line hose from the canister (charcoal canister assembly).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 2 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Bolt
	Clip

Disengage the clip from the canister (charcoal canister assembly).

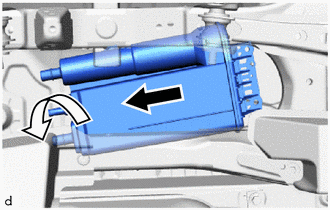

Remove the canister (charcoal canister assembly) from vehicle body as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

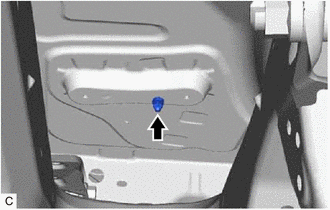

Remove the clip from the vehicle body.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE NO. 2 CHARCOAL CANISTER SUB-ASSEMBLY

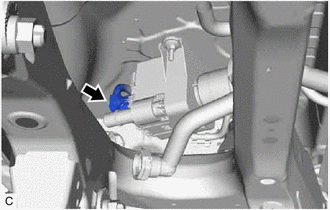

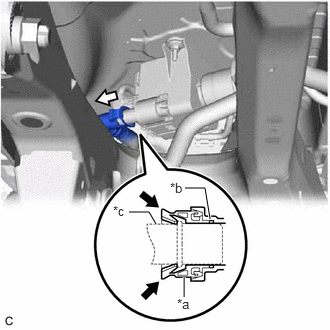

Disconnect the air line tube from the leak detection pump sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Tube Connector
*b	O-ring
*c	Pipe (Leak Detection Pump Sub-assembly)
	Pinch
	Pull off

NOTE:

Remove any dirt or foreign matter on the tube connector before performing this work.
Perform this work by hand. Do not use any tools.
Do not forcibly bend, twist or turn the air line tube.
Protect the disconnected parts by covering them with plastic bags after disconnecting the air line tube.
If the tube connector and pipe (leak detection pump sub-assembly) are stuck, push and pull to release them.

Push the air line tube firmly toward the leak detection pump sub-assembly.
Pinch the tube connector as shown in the illustration.
Pull off the air line tube from the pipe (leak detection pump sub-assembly).

Disconnect the leak detection pump sub-assembly connector.

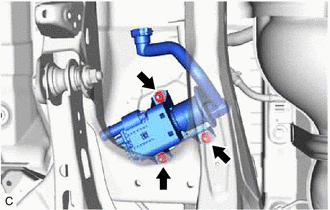

Remove the 3 nuts and No. 2 charcoal canister sub-assembly from the vehicle body.

REMOVE LEAK DETECTION PUMP SUB-ASSEMBLY

HINT:

Only perform this procedure when replacement of the leak detection pump sub-assembly is necessary.

Before removing the leak detection pump sub-assembly, clean the No. 2 charcoal canister sub-assembly by blowing air into it to ensure that the No. 2 charcoal canister sub-assembly is free of foreign matter.
NOTE:
- Make sure to clean the No. 2 charcoal canister sub-assembly using air only.
- Do not use gasoline, thinners or solvents.

While disengaging the 2 claws as shown in the illustration, push the leak detection pump sub-assembly upwards using a screwdriver with its tip wrapped with protective tape to remove it.

*a	Protective Tape

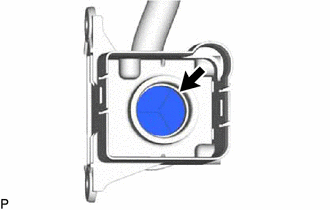

Check if the No. 2 charcoal canister sub-assembly contains foreign matter such as mud or water.

Visually check that the inside of the No. 2 charcoal canister sub-assembly is free of foreign matter.

Hold the No. 2 charcoal canister sub-assembly upside down to make sure that it is free of foreign matter.
If the No. 2 charcoal canister sub-assembly contains foreign matter, replace it.
