Removal [01/2019 - 11/2022]: Procedure
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

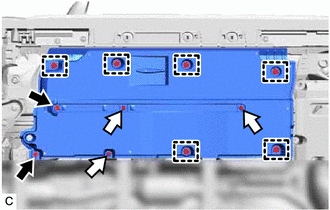

- REMOVE FRONT FLOOR COVER LH (w/ Cover)
- REMOVE FRONT FLOOR COVER RH (w/ Cover)
HINT:
Perform the same procedure as for the front floor cover LH.

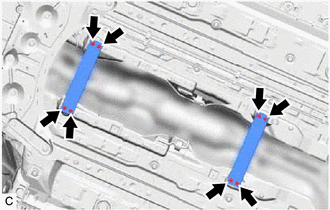

- REMOVE FRONT FLOOR CENTER BRACE
- REMOVE HEATED OXYGEN SENSOR
Refer to PROCEDURE - Step 2

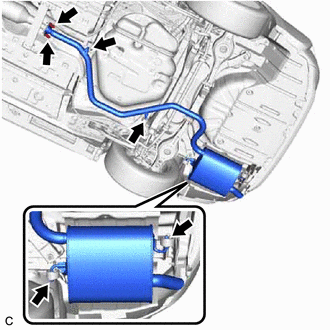

- REMOVE TAIL EXHAUST PIPE ASSEMBLY WARNING:
To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.
- Remove the 2 bolts and 2 compression springs and disconnect the tail exhaust pipe assembly from the front exhaust pipe assembly (TWC: Front and Rear Catalyst).
- Remove the tail exhaust pipe assembly from the 4 exhaust pipe supports.
- Remove the exhaust pipe gasket from the front exhaust pipe assembly (TWC: Front and Rear Catalyst).
- Remove the 2 bolts and 2 compression springs and disconnect the tail exhaust pipe assembly from the front exhaust pipe assembly (TWC: Front and Rear Catalyst).

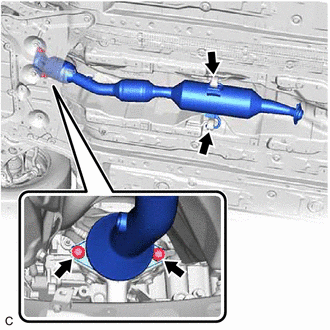

- REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Front and Rear Catalyst) WARNING:
To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.
- Remove the 2 bolts and 2 compression springs and disconnect the front exhaust pipe assembly (TWC: Front and Rear Catalyst) from the exhaust manifold.
- Remove the front exhaust pipe assembly (TWC: Front and Rear Catalyst) from the 2 exhaust pipe supports.
- Remove the exhaust pipe gasket from the exhaust manifold.
- Remove the 2 bolts and 2 compression springs and disconnect the front exhaust pipe assembly (TWC: Front and Rear Catalyst) from the exhaust manifold.
