Removal [01/2019 - 11/2022]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 2

  2. REMOVE RADIATOR SUPPORT OPENING COVER

    Refer to PROCEDURE - Step 1 [01/2019 - 09/2022] , or refer to PROCEDURE - Step 1 [09/2022 - 11/2022]

  3. REMOVE INLET NO. 1 AIR CLEANER

    Refer to PROCEDURE - Step 4 [01/2019 - 09/2022] , or refer to PROCEDURE - Step 4 [09/2022 - 11/2022]

  4. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  5. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7 [01/2019 - 03/2019] , or refer to PROCEDURE - Step 7 [03/2019 - 09/2022] , or refer to PROCEDURE - Step 7 [09/2022 - 11/2022]

  6. REMOVE BACK-UP LIGHT SWITCH ASSEMBLY
    1. Disconnect the back-up light switch assembly connector.

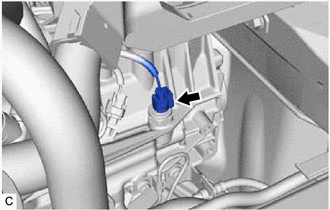

      GTY851694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a 27 mm deep socket wrench, remove the back-up light switch assembly and gasket from the manual transmission case.

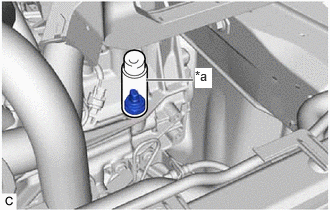

      GTY840664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 27 mm Deep Socket Wrench
