Disassembly [09/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE SELECTING BELL CRANK ASSEMBLY

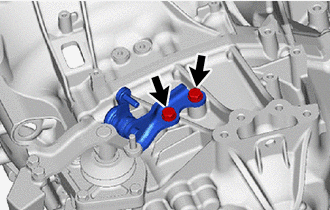

    1. Remove the 2 bolts and selecting bell crank assembly from the manual transmission case.
      GTY1023885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE CONTROL SHIFT LEVER BUSHING
    1. Remove the control shift lever bushing from the selecting bell crank assembly.
      GTY1022135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 1 SELECTING BELL CRANK DUST COVER
    1. Remove the No. 1 selecting bell crank dust cover from the selecting bell crank assembly.
      GTY1021831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE BACK-UP LIGHT SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 10

  5. REMOVE NEUTRAL POSITION SWITCH

    Refer to PROCEDURE - Step 11

  6. REMOVE NO. 1 LOCK BALL ASSEMBLY

    Refer to PROCEDURE - Step 14

  7. REMOVE NO. 2 LOCK BALL ASSEMBLY

    Refer to PROCEDURE - Step 15

  8. REMOVE SHIFT GATE PIN

    Refer to PROCEDURE - Step 16

  9. REMOVE SHIFT AND SELECT LEVER ASSEMBLY
    1. Remove the 4 bolts and shift and select lever assembly from the manual transmission case.
      GTY1023869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 1 SHIFT LEVER INNER

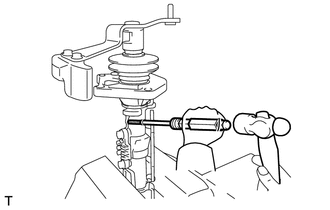

    1. Using a pin punch and hammer, remove the slotted spring pin from the No. 1 shift lever inner.
      GTY1022647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

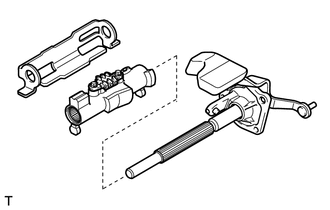

    2. Remove the No. 1 shift lever inner and shift interlock plate from the shift and select lever shaft.
      GTY1022590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE SHIFT AND SELECT LEVER SHAFT
    1. Remove the control shaft cover and the shift and select lever boot from the shift and select lever shaft.
      GTY1022603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE SHIFT GATE PLATE
    1. Remove the 2 bolts and shift gate plate from the No. 1 shift lever inner.
      GTY1022612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE PIN
    1. Remove the 2 pins from the No. 1 shift lever inner.
      GTY1022589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE SHIFT LEVER DAMPER
    1. Remove the 2 bolts and shift lever damper from the shift and select lever shaft.
      GTY1022658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE CONTROL SHAFT COVER OIL SEAL

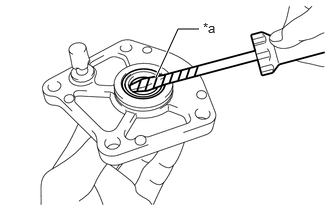

    1. Using a screwdriver with its tip wrapped with protective tape, remove the control shaft cover oil seal from the control shaft cover.
      GTY1022663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
