Removal [09/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. SECURE VEHICLE
    1. Fully apply the parking brake and chock a wheel.
      WARNING:
      • Make sure to apply the parking brake and chock a wheel before performing this procedure.
        GTY655852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • If the vehicle is not secure and the shift lever is moved to neutral, the vehicle may suddenly move, possibly resulting in an accident or serious injury.
  2. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [09/2022 - 11/2022] , or refer to REMOVAL [11/2022 - 09/2024] , or refer to REMOVAL [09/2024 - ]

  3. REMOVE RADIATOR SUPPORT OPENING COVER

    Refer to PROCEDURE - Step 1 [09/2022 - 08/2023] , or refer to PROCEDURE - Step 1 [08/2023 - 09/2024] , or refer to PROCEDURE - Step 1 [09/2024 - ]

  4. REMOVE NO. 1 AIR CLEANER INLET

    Refer to PROCEDURE - Step 6 [09/2022 - 09/2024] , or refer to PROCEDURE - Step 6 [09/2024 - ]

  5. REMOVE AIR CLEANER WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 7 [09/2022 - 09/2024] , or refer to PROCEDURE - Step 7 [09/2024 - ]

  6. REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY

    Refer to REMOVAL [09/2022 - ]

  7. REMOVE NO. 1 FRONT FLOOR HEAT INSULATOR SUB-ASSEMBLY
    1. Remove the 3 nuts.
      GTY1111029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clip to remove the No. 1 front floor heat insulator sub-assembly.
  8. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Remove the clip and disconnect the transmission control select cable from the floor shift shift lever assembly.
      GTY1112286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Transmission Control Select Cable
      *b Transmission Control Shift Cable
    2. Disconnect the transmission control shift cable from the floor shift shift lever assembly.
    3. Using a screwdriver with its tip wrapped with protective tape, pull out the stopper of the transmission control select cable.
      NOTE:

      Do not remove the stopper. If it is removed, reinstall it to its original position.

      GTY1109654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Rotate the nut counterclockwise approximately 180° and, while holding the nut in that position, disconnect the transmission control select cable from the floor shift shift lever assembly.
      GTY1109655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not rotate the nut excessively as the internal spring may jump out and the transmission control cable assembly will not be reusable.
      • Do not forcibly pull the transmission control cable assembly into the cabin.
    5. Disconnect the transmission control shift cable from the floor shift shift lever assembly in the same manner as the transmission control select cable.

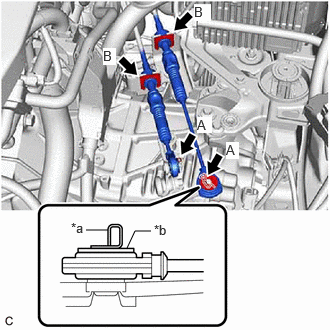

    6. Remove the 2 clips (A) and washer to disconnect the transmission control cable assembly from the manual transaxle assembly.
      GTY1179813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip
      *b Washer
    7. Remove the 2 clips (B) to disconnect the transmission control cable assembly from the control cable bracket assembly.

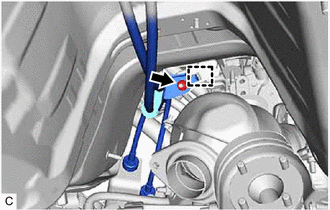

    8. Remove the nut.
      GTY1117750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Disengage the guide and disconnect the transmission control cable assembly from the vehicle body.

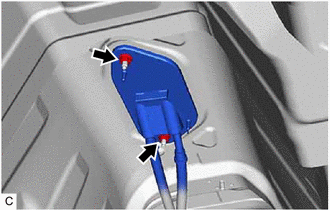

    10. Remove the 2 nuts and transmission control cable assembly from the vehicle body.
      GTY1109647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
