Removal [09/2024 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 9

  2. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 10

  3. REMOVE PIN HOLD CLIP

    Refer to PROCEDURE - Step 11

  4. REMOVE FRONT FENDER LINER RETAINER

    Refer to PROCEDURE - Step 32

  5. REMOVE NO. 3 ENGINE UNDER COVER AIR GUIDE

    Refer to PROCEDURE - Step 22

  6. REMOVE REAR ENGINE UNDER COVER LH

    Refer to PROCEDURE - Step 23

  7. REMOVE BACK-UP LIGHT SWITCH ASSEMBLY

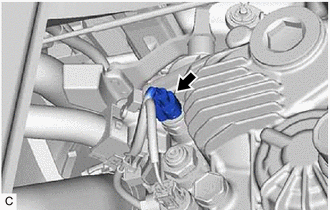

    1. Disconnect the back-up light switch assembly connector.
      GTY1109686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

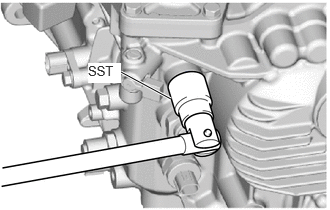

    2. Using SST, remove the back-up light switch assembly and gasket from the manual transaxle assembly.
      GTY1023231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09816-30010
