Distance Control Switch Circuit [01/2019 - 03/2019]: Procedure
- READ VALUE USING TECHSTREAM
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON.
- Turn the Techstream on.
- Enter the following menus: Powertrain / Radar Cruise 2 / Data List.
- Read the Data List according to the display on the Techstream.
Powertrain > Radar Cruise 2 > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note Vehicle-to-vehicle Distance Control Switch Vehicle-to-vehicle distance control switch signal ON or OFF ON: Vehicle-to-vehicle distance control switch pushed
OFF: Vehicle-to-vehicle distance control switch not pushed- Powertrain > Radar Cruise 2 > Data List
Tester Display Vehicle-to-vehicle Distance Control Switch OK
The value of the Data List item changes according to the operation of the vehicle-to-vehicle distance control switch.
Result
Proceed to OK NG
Result:
OK
PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE [01/2019 - 09/2022]
Result:
NG
See step 2
- INSPECT STEERING PAD SWITCH ASSEMBLY
- Remove the steering pad switch assembly.
Refer to REMOVAL [01/2019 - 03/2019]
- Inspect the steering pad switch assembly.
Refer to INSPECTION [01/2019 - 03/2019]
Result
Proceed to OK NG
Result:
NG
REPLACE STEERING PAD SWITCH ASSEMBLY. Refer to COMPONENTS [06/2018 - ]
Result:
OK
See step 3
- Remove the steering pad switch assembly.
- INSPECT SPIRAL CABLE SUB-ASSEMBLY
- Remove the spiral cable sub-assembly.
Refer to REMOVAL [01/2019 - 03/2019]
- Inspect the spiral cable sub-assembly.
Refer to INSPECTION [06/2018 - ]
Result
Proceed to OK NG
Result:
NG
REPLACE SPIRAL CABLE SUB-ASSEMBLY. Refer to COMPONENTS [06/2018 - ]
Result:
OK
See step 4
- Remove the spiral cable sub-assembly.
- CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSEMBLY - FORWARD RECOGNITION CAMERA AND ECM)
- Disconnect the T9 forward recognition camera connector.
- Disconnect the A46 ECM connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition I82-6 (DIST) - T9-3 (LKSW) Always Below 1 Ω I82-2 (ECC) - A46-35 (ECCS) Always Below 1 Ω I82-6 (DIST) or T9-3 (LKSW) - Body ground Always 10 kΩ or higher I82-2 (ECC) or A46-35 (ECCS) - Body ground Always 10 kΩ or higher - Connect the A46 ECM connector.
- Connect the T9 forward recognition camera connector.
Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 5
- CHECK HARNESS AND CONNECTOR (ECM - BODY GROUND)
- Disconnect the C77 ECM connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition C77-59 (E1) - Body ground Always Below 1 Ω - Connect the C77 ECM connector.
Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 6
- CHECK ECM (ECM TERMINALS)
- Disconnect the ECM connector.
- Measure the resistance according to the value(s) in the table below.

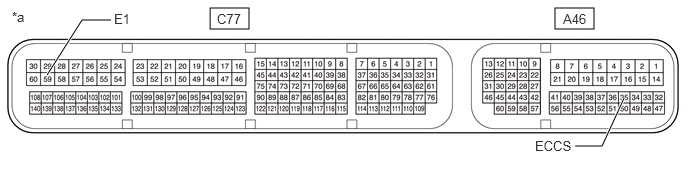

*a Component without harness connected
(ECM)- - Standard Resistance
Tester Connection Condition Specified Condition A46-35 (ECCS) - C77-59 (E1) Always Below 1 Ω - Connect the ECM connector.
Result
Proceed to OK NG
Result:
OK
REPLACE FORWARD RECOGNITION CAMERA. Refer to COMPONENTS [06/2018 - 09/2022]
Result:
NG
REPLACE ECM. Refer to COMPONENTS [01/2019 - 11/2022]
