Components [06/2018 - ]

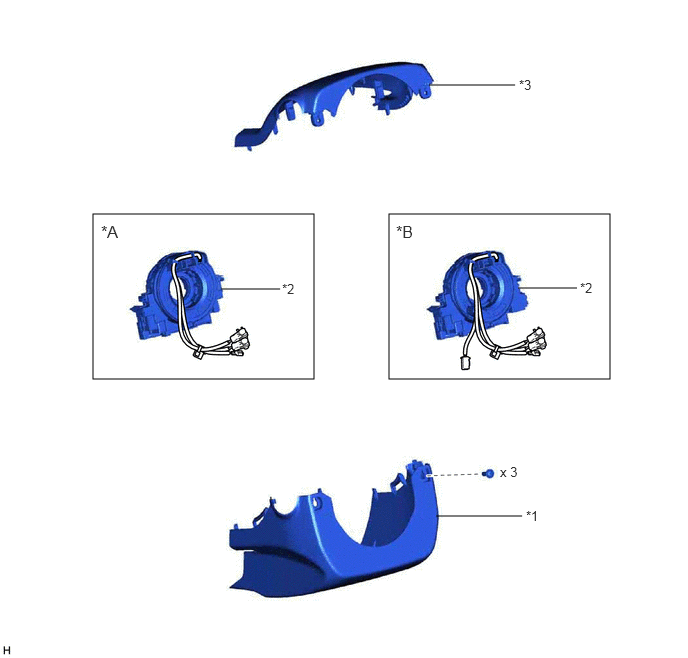

Fig 1: Spiral Cable Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/o Heated Steering Wheel System	*B	w/ Heated Steering Wheel System
*1	LOWER STEERING COLUMN COVER SUB-ASSEMBLY	*2	SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
*3	UPPER STEERING COLUMN COVER	-	-

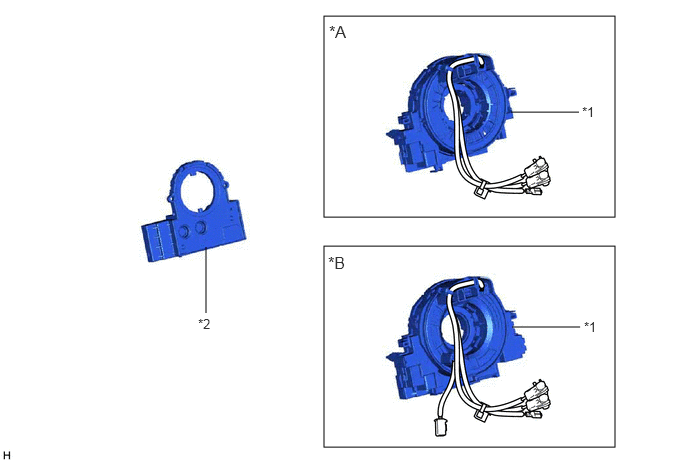

Fig 2: Spiral Cable Replacement Components (2 Of 2)

Callout	Description	Callout	Description
*A	w/o Heated Steering Wheel System	*B	w/ Heated Steering Wheel System
*1	SPIRAL CABLE SUB-ASSEMBLY	*2	STEERING SENSOR
