Removal [01/2019 - 09/2022]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, and 2020 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE CONSOLE BOX ASSEMBLY
Refer to REMOVAL [01/2019 - 09/2022]
REMOVE FRONT SEAT ASSEMBLY RH
HINT:

Use the same procedure as for the LH side.

for Manual Seat:

Refer to REMOVAL [01/2019 - 03/2019] , or refer to REMOVAL [03/2019 - 09/2022]

for Power Seat:

Refer to REMOVAL [01/2019 - 03/2019] , or refer to REMOVAL [03/2019 - 09/2022]
REMOVE FRONT DOOR SCUFF PLATE RH
HINT:

Use the same procedure as for the LH side.

Refer to PROCEDURE - Step 11 [06/2018 - 06/2020] , or refer to PROCEDURE - Step 11 [06/2020 - 09/2022]
REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH
HINT:

Use the same procedure as for the LH side.

Refer to PROCEDURE - Step 12 [06/2018 - 06/2020] , or refer to PROCEDURE - Step 12 [06/2020 - 09/2022]
REMOVE FRONT FLOOR CAUTION PLATE COVER
Refer to PROCEDURE - Step 21 [01/2019 - 03/2019] , or refer to PROCEDURE - Step 21 [03/2019 - 06/2021] , or refer to PROCEDURE - Step 20 [06/2021 - 09/2022]
DISCONNECT FRONT FLOOR CARPET ASSEMBLY
Refer to PROCEDURE - Step 22 [01/2019 - 03/2019] , or refer to PROCEDURE - Step 22 [03/2019 - 06/2021] , or refer to PROCEDURE - Step 21 [06/2021 - 09/2022]

REMOVE VEHICLE APPROACHING SPEAKER CONTROLLER COVER

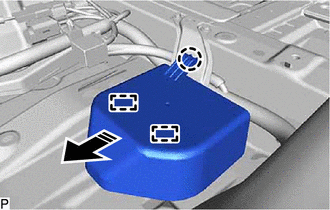

Disengage the claw and 2 guides to remove the vehicle approaching speaker controller cover as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Remove the 2 clips from the vehicle approaching speaker controller.

REMOVE VEHICLE APPROACHING SPEAKER CONTROLLER

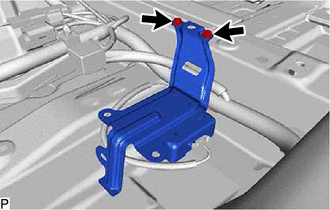

Remove the 2 bolts.

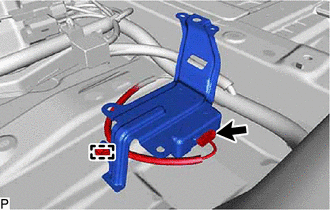

Disconnect the connector.

Disengage the clamp to remove the vehicle approaching speaker controller.
