Removal [09/2024 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT WHEEL RH

    Refer to REMOVAL [09/2022 - ]

  2. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 9

  3. REMOVE REAR ENGINE UNDER COVER RH

    Refer to PROCEDURE - Step 24

  4. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [09/2024 - ]

  5. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 2

  6. REMOVE PIN HOLD CLIP

    Refer to PROCEDURE - Step 31

  7. REMOVE FRONT FENDER LINER RETAINER

    Refer to PROCEDURE - Step 19

  8. DRAIN WASHER FLUID

    Refer to PROCEDURE - Step 6

  9. REMOVE SUB RADIATOR ASSEMBLY WITH SUB RADIATOR DUCT (w/ Sub Radiator)

    Refer to REMOVAL [09/2024 - ]

  10. REMOVE INLET HOSE

    Refer to PROCEDURE - Step 19

  11. REMOVE WINDSHIELD WASHER JAR ASSEMBLY

    Refer to PROCEDURE - Step 20

  12. REMOVE NO. 2 ENGINE UNDER COVER AIR GUIDE

    Refer to PROCEDURE - Step 21

  13. REMOVE FAN AND GENERATOR V BELT

    Refer to PROCEDURE - Step 3

  14. REMOVE CRANKSHAFT PULLEY ASSEMBLY

    Refer to PROCEDURE - Step 14

  15. REMOVE TIMING CHAIN COVER OIL SEAL

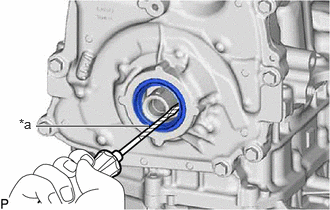

    1. Using a screwdriver, pry out the timing chain cover oil seal.
      GTY1019808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:

      Do not damage the surface of the timing chain cover oil seal press fit hole or the crankshaft.

      HINT:

      Tape the screwdriver tip before use.
