REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 12
DRAIN ENGINE COOLANT
Refer to PROCEDURE - Step 2
REMOVE INTAKE MANIFOLD
Refer to REMOVAL [09/2022 - 11/2022]
REMOVE GENERATOR ASSEMBLY
Refer to REMOVAL [09/2022 - 11/2022]

DISCONNECT NO. 5 WATER BY-PASS HOSE

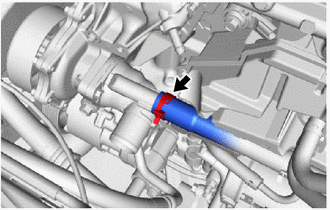

Slide the clip and disconnect the No. 5 water by-pass hose from the water inlet with water pump housing sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DISCONNECT NO. 2 RADIATOR HOSE

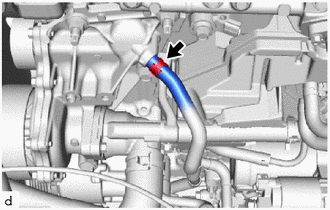

Slide the clip and disconnect the No. 2 radiator hose from the water inlet with thermostat sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE AIR CONNECTOR STAY

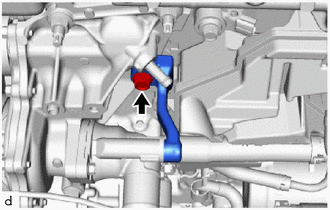

Remove the bolt and air connector stay from the water inlet with water pump housing sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE WATER INLET WITH WATER PUMP HOUSING SUB-ASSEMBLY

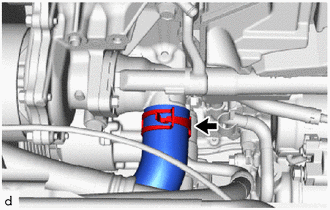

Slide the clip and disconnect the No. 4 water by-pass hose from the water inlet with thermostat sub-assembly.

NOTE:

Do not apply force to the water inlet with thermostat sub-assembly when disconnecting the No. 4 water by-pass hose.
Do not damage the water inlet with thermostat sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

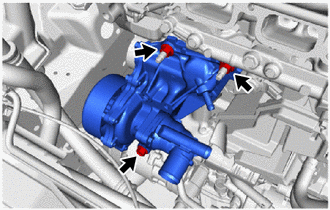

Remove the bolt, 2 nuts and water inlet with water pump housing sub-assembly from the cylinder block sub-assembly.

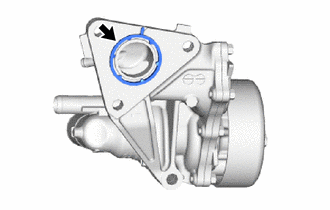

Remove the gasket from the water inlet with water pump housing sub-assembly.

REMOVE WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

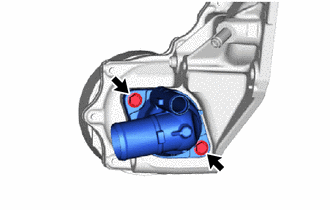

Remove the 2 bolts and water inlet with thermostat sub-assembly.

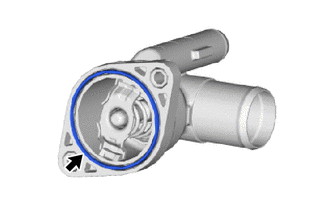

Remove the gasket from the water inlet with thermostat sub-assembly.
