Removal [09/2024 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE RADIATOR SUPPORT OPENING COVER

    Refer to PROCEDURE - Step 1

  2. REMOVE INLET NO. 1 AIR CLEANER

    Refer to PROCEDURE - Step 6

  3. REMOVE AIR CLEANER WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 7

  4. REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY

    Refer to REMOVAL [09/2022 - ]

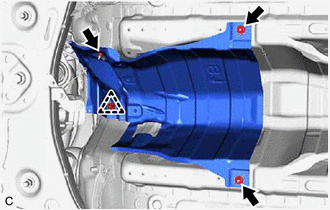

  5. REMOVE NO. 1 FRONT FLOOR HEAT INSULATOR SUB-ASSEMBLY
    1. Remove the 3 nuts.
      GTY1111029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clip to remove the No. 1 front floor heat insulator sub-assembly.
  6. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [09/2024 - ]

  7. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Move the shift lever to N.
    2. Disconnect the transmission control cable assembly from the transmission floor shift assembly.
      GTY846421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Rotate the lock nut counterclockwise approximately 180° and, while holding the lock nut in that position, disconnect the transmission control cable assembly from the transmission floor shift assembly.
      GTY859507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lock Nut
      *b Counterclockwise
      NOTE:

      Do not forcibly pull the transmission control cable assembly into the cabin.

    4. While disengaging the clip (A) as shown in the illustration, disconnect the transmission control cable assembly from the transmission control shaft lever together with the clip (A).
      GTY1252003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip (A)
      *b 45° to 60°
      *c Clip (B)
    5. Remove the clip (B) and disconnect the transmission control cable assembly from the No. 1 transmission control cable bracket.

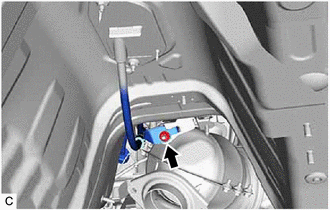

    6. Remove the nut and disconnect the transmission control cable assembly from the vehicle body.
      GTY1251872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

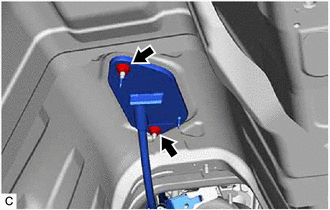

    7. Remove the 2 nuts and transmission control cable assembly from the vehicle body.
      GTY1251871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
