Adjustment [03/2019 - 09/2022]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. SECURE VEHICLE
    1. Fully apply the parking brake and chock a wheel.
      WARNING:
      • Make sure to apply the parking brake and chock a wheel before performing this procedure.
        GTY655852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.
  2. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 1

  4. REMOVE RADIATOR SUPPORT OPENING COVER

    Refer to PROCEDURE - Step 1

  5. REMOVE INLET NO. 1 AIR CLEANER

    Refer to PROCEDURE - Step 4

  6. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 2

  7. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  8. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  9. REMOVE ECM

    Refer to PROCEDURE - Step 8

  10. REMOVE BATTERY

    Refer to REMOVAL [03/2019 - 09/2022]

  11. DISCONNECT ENGINE WIRE

    See step  11

  12. REMOVE BATTERY CLAMP SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16

  13. ADJUST PARK/NEUTRAL POSITION SWITCH ASSEMBLY

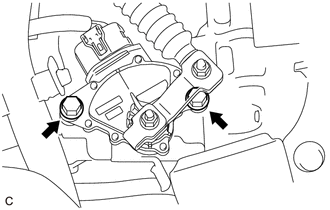

    1. Loosen the 2 bolts of the park/neutral position switch assembly.
      GTY484491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

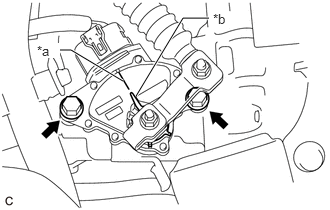

    2. Align the protrusion with the neutral basic line.
      GTY846536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Neutral Basic Line
      *b Protrusion
    3. Hold the park/neutral position switch assembly in that position and tighten the 2 bolts.

      Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

  14. INSTALL BATTERY CLAMP SUB-ASSEMBLY

    Refer to PROCEDURE - Step 48

  15. CONNECT ENGINE WIRE

    See step  4

  16. INSTALL BATTERY

    Refer to INSTALLATION [01/2019 - 09/2022]

  17. INSTALL ECM

    Refer to PROCEDURE - Step 3

  18. INSTALL AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  19. INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  20. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 3

  21. INSTALL INLET NO. 1 AIR CLEANER

    Refer to PROCEDURE - Step 11

  22. INSTALL RADIATOR SUPPORT OPENING COVER

    Refer to PROCEDURE - Step 2

  23. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2
