Removal [01/2019 - 11/2022]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 7 [01/2019 - 03/2019] , or refer to PROCEDURE - Step 7 [03/2019 - 09/2022] , or refer to PROCEDURE - Step 7 [09/2022 - 11/2022]

  2. REMOVE REAR ENGINE UNDER COVER LH

    Refer to PROCEDURE - Step 8 [01/2019 - 03/2019] , or refer to PROCEDURE - Step 8 [03/2019 - 09/2022] , or refer to PROCEDURE - Step 8 [09/2022 - 11/2022]

  3. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 1

  4. DRAIN CONTINUOUSLY VARIABLE TRANSAXLE FLUID

    See step  3

  5. REMOVE TRANSMISSION OIL COOLER
    1. Slide the 2 clips and disconnect the water by-pass hose from the transmission oil cooler.
      GTY891397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Water By-pass Hose

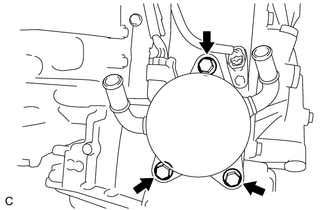

    2. Remove the 3 bolts and transmission oil cooler from the continuously variable transaxle assembly.
      GTY432031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 O-rings from the transmission oil cooler.
