Removal [08/2020 - 12/2021]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE

    Refer to REMOVAL [08/2020 - 12/2021]

  2. REMOVE FLYWHEEL HOUSING UNDER COVER

    Refer to PROCEDURE - Step 64

  3. REMOVE DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT

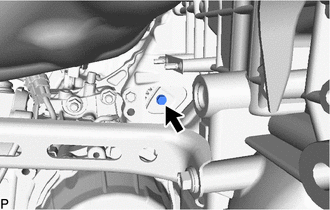

    1. Turn the crankshaft to gain access to the 6 drive plate and torque converter assembly setting bolts and remove each drive plate and torque converter assembly setting bolt while holding the crankshaft pulley bolt with a wrench.
      GTY929524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      There will be one black-colored drive plate and torque converter assembly setting bolt.

  4. DISCONNECT VACUUM HOSE

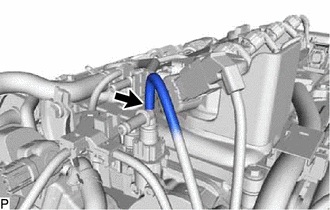

    1. Disconnect the vacuum hose from the vacuum hose connector.
      GTY853309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

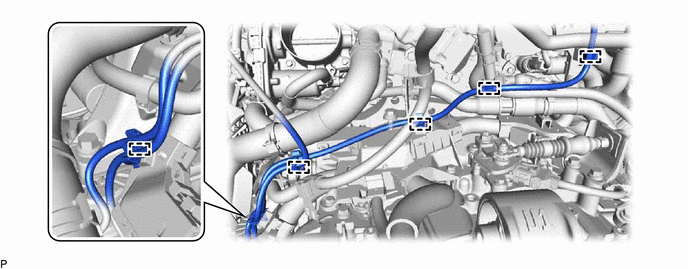

    2. Disengage the 5 clamps to disconnect the vacuum hose from the automatic transaxle assembly.
      GTY853292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FLOW SHUTTING VALVE (NO. 1 WATER BY-PASS HOSE)

    Refer to PROCEDURE - Step 11

  6. DISCONNECT WATER BY-PASS HOSE ASSEMBLY

    Refer to PROCEDURE - Step 15

  7. REMOVE BREATHER PLUG HOSE

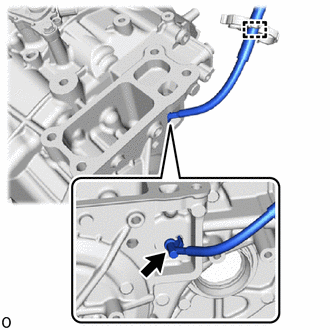

    1. Disengage the hose clamp to disconnect the breather plug hose.
      GTY1110423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the breather plug hose from the automatic transmission case sub-assembly.
    3. GTY1116853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Breather Plug Sub-assembly
      *2 Breather Plug Hose
      *3 Breather Plug
      *4 O-ring

      Remove the O-ring from the breather plug.

    4. Remove the breather plug sub-assembly and breather plug from the breather plug hose.
  8. REMOVE STEERING GEAR HEAT INSULATOR

    Refer to PROCEDURE - Step 9

  9. DISCONNECT WIRE HARNESS

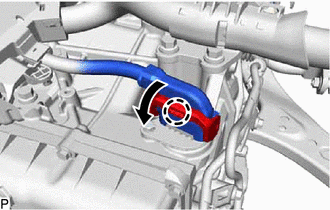

    1. Disengage the claw, rotate the lever and disconnect the transmission wire connector.
      GTY853294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

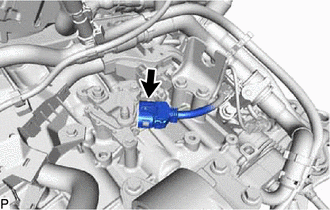

    2. Disconnect the park/neutral position switch assembly connector.
      GTY853284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

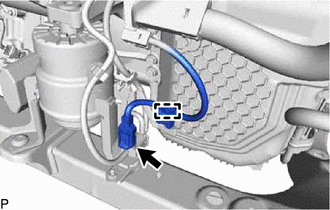

    3. Disengage the wire harness clamp and disconnect the vacuum switching valve (for active control engine mount system) connector.
      GTY853283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

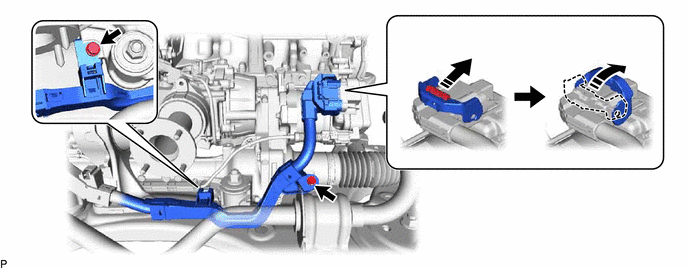

    4. Disconnect the rack and pinion power steering gear assembly connector.
      GTY853286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Release the lock before rotating the lock lever.

    5. Remove the 2 bolts to disconnect the wire harness from the rack and pinion power steering gear assembly.
    6. for Transfer (GF1A):

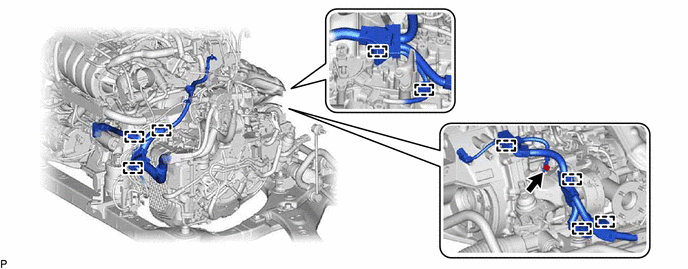

      1. Remove the bolt.
        GTY853285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the 9 wire harness clamps to disconnect the wire harness.
    7. for Transfer (GF2A):
      1. Remove the bolt.
        GTY881542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

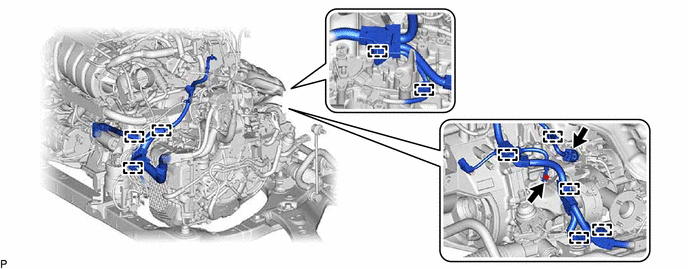

      2. Disengage the 10 wire harness clamps and transfer wire harness connector to disconnect the wire harness.
    8. Remove the 2 bolts.

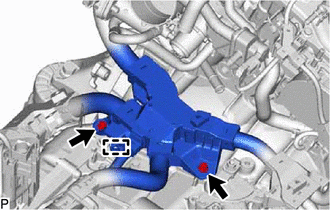

      GTY929519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Disengage the wire harness clamp to disconnect the wire harness from the automatic transaxle assembly.
  10. REMOVE FLYWHEEL HOUSING SIDE COVER
  11. REMOVE STARTER ASSEMBLY
  12. REMOVE FUEL DELIVERY GUARD

    Refer to PROCEDURE - Step 62

  13. INSTALL ENGINE HANGERS

    Refer to PROCEDURE - Step 63

  14. REMOVE FRONT FRAME ASSEMBLY

    Refer to PROCEDURE - Step 72

  15. REMOVE FRONT ENGINE MOUNTING INSULATOR

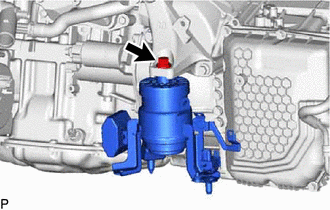

    1. Remove the bolt and front engine mounting insulator from the transverse engine mounting bracket.
      GTY935448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE TRANSVERSE ENGINE MOUNTING BRACKET
    1. GTY853222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

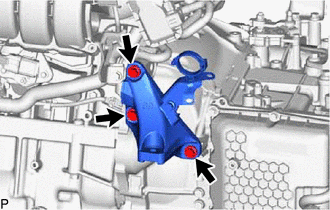

      Remove the 3 bolts and transverse engine mounting bracket from the transaxle housing.

  17. REMOVE ENGINE MOUNTING INSULATOR LH

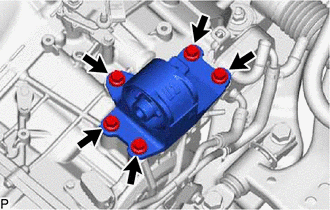

    1. Remove the 5 bolts and engine mounting insulator LH from the automatic transaxle case sub-assembly.
      GTY929505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE PROPELLER SHAFT HEAT INSULATOR

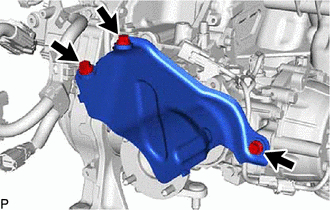

    1. Remove the 3 bolts and propeller shaft heat insulator from the automatic transaxle assembly.
      GTY882523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE REAR ENGINE MOUNTING INSULATOR

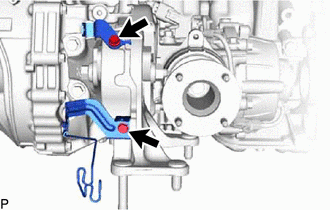

    1. Remove the 2 bolts and 2 wire harness clamp brackets from the rear engine mounting insulator.
      GTY882256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

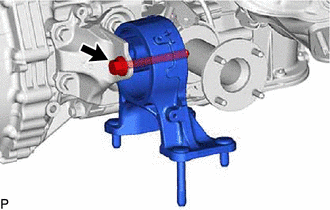

    2. Remove the bolt, nut and rear engine mounting insulator from the rear engine mounting bracket sub-assembly.
      GTY885882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE REAR ENGINE MOUNTING BRACKET SUB-ASSEMBLY

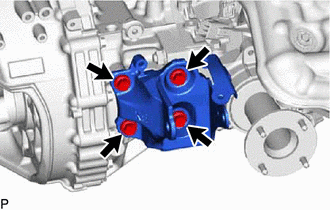

    1. Remove the 4 bolts and rear engine mounting bracket sub-assembly from the transaxle housing.
      GTY853208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

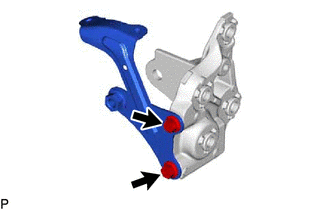

    2. Remove the 2 bolts and No. 2 rear engine mounting bracket from the rear engine mounting bracket.
      GTY869837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY

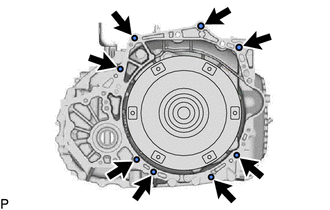

    1. Remove the 8 bolts and automatic transaxle assembly.
      GTY853225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      To prevent damage to the 2 knock pins, do not pry between the automatic transaxle assembly and engine assembly.

  22. DISCONNECT OUTLET NO. 1 OIL COOLER HOSE

    Refer to PROCEDURE - Step 11

  23. DISCONNECT INLET NO. 1 OIL COOLER HOSE

    Refer to PROCEDURE - Step 12

  24. REMOVE NO. 1 OIL COOLER TUBE SUB-ASSEMBLY WITHOUT HOSE

    Refer to PROCEDURE - Step 13

  25. REMOVE TRANSMISSION OIL COOLER

    Refer to PROCEDURE - Step 16

  26. REMOVE NO. 1 TRANSMISSION CONTROL CABLE BRACKET

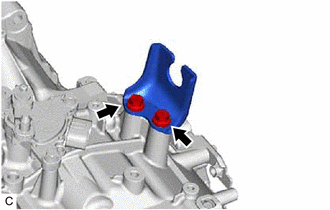

    1. Remove the 2 bolts and No. 1 transmission control cable bracket from the automatic transaxle case sub-assembly.
      GTY768653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE TRANSMISSION CASE PLUG ASSEMBLY

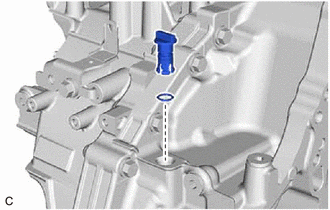

    1. Remove the transmission case plug assembly from the transaxle housing.
      GTY746030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the transmission case plug assembly.
  28. REMOVE WIRE HARNESS CLAMP BRACKET

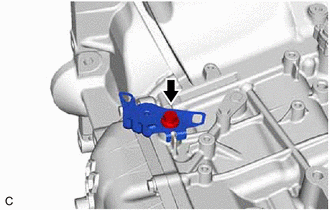

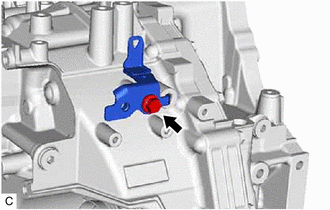

    1. Remove the bolt and wire harness clamp bracket from the automatic transaxle case sub-assembly.
      GTY740959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and wire harness clamp bracket from the automatic transaxle case sub-assembly.
      GTY740960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

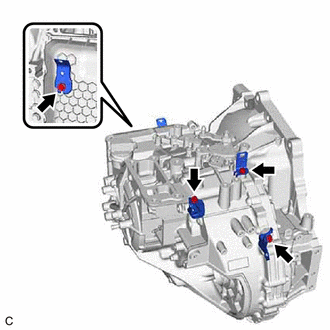

    3. Remove the 4 bolts and 4 wire harness clamp brackets from the automatic transaxle case sub-assembly and transmission case side cover.
      GTY740894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE TRANSFER ASSEMBLY
  30. REMOVE TRANSFER AND TRANSAXLE SETTING STUD BOLT

    HINT:

    It is not necessary to remove the transfer and transaxle setting stud bolts unless they are being replaced.

    1. for Automatic Transaxle Assembly Side:
      GTY875441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

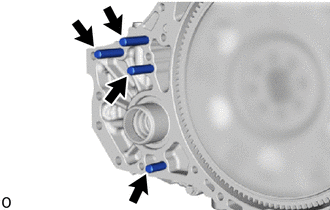

      Remove the 4 transfer and transaxle setting stud bolts.

      NOTE:

      There are 2 types of transfer assembly installation conditions, a type using only nuts and a type using nuts and bolts.

      Removal stud bolts according to the transfer assembly installation condition of the vehicle.

      Refer to PROCEDURE - Step 6

    2. for Transfer Side:
  31. REMOVE TORQUE CONVERTER ASSEMBLY
    1. Remove the torque converter assembly from the automatic transaxle assembly.
      NOTE:

      Remove the torque converter assembly from the input shaft horizontally.

  32. INSPECT TORQUE CONVERTER ASSEMBLY

    Refer to PROCEDURE - Step 1

  33. INSPECT DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2
